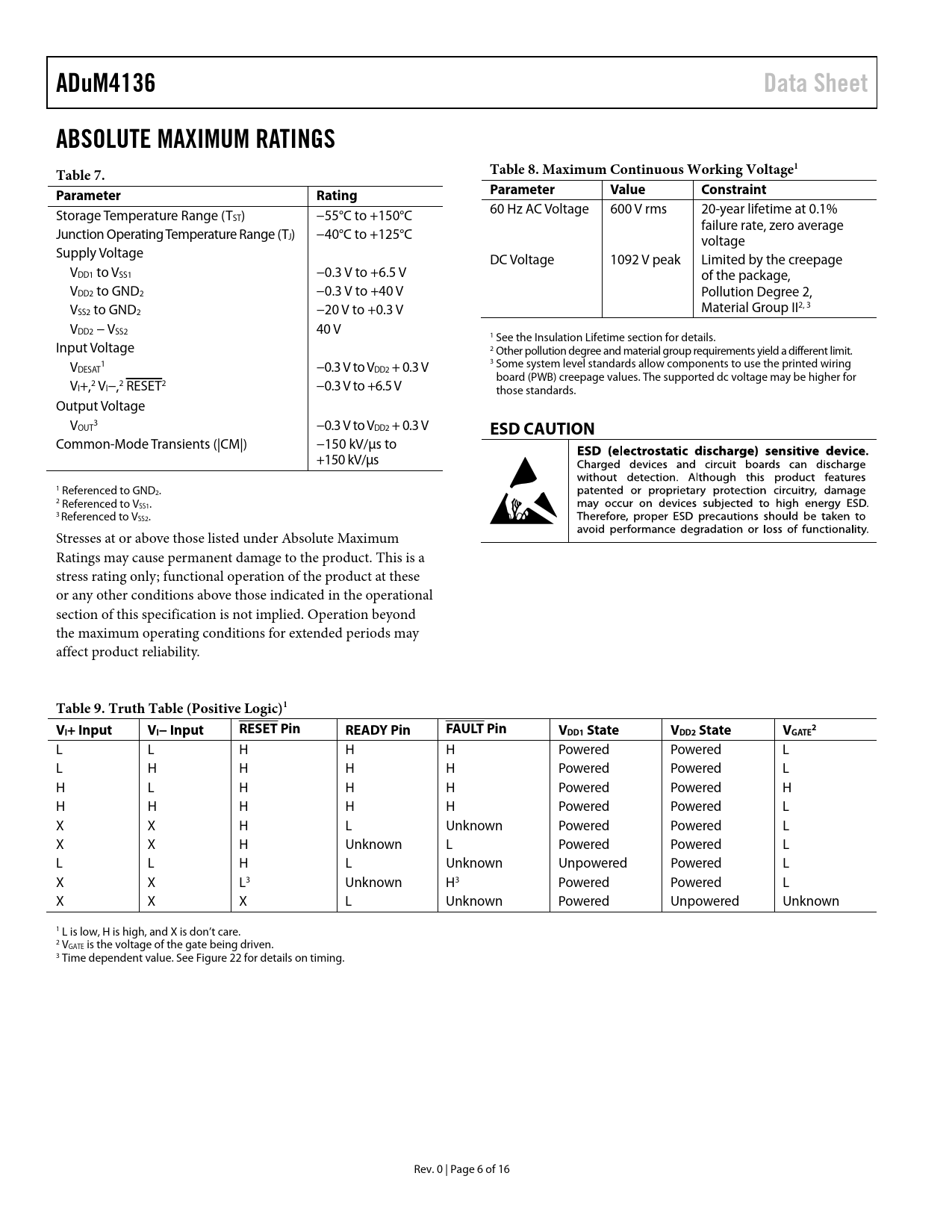

ADuM4136 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 7. Table 8. Maximum Continuous Working Voltage1 Parameter Rating Parameter Value Constraint
Storage Temperature Range (T 60 Hz AC Voltage 600 V rms 20-year lifetime at 0.1% ST) −55°C to +150°C failure rate, zero average Junction Operating Temperature Range (TJ) −40°C to +125°C voltage Supply Voltage DC Voltage 1092 V peak Limited by the creepage VDD1 to VSS1 −0.3 V to +6.5 V of the package, VDD2 to GND2 −0.3 V to +40 V Pollution Degree 2, V Material Group II2, 3 SS2 to GND2 −20 V to +0.3 V V DD2 − VSS2 40 V 1 See the Insulation Lifetime section for details. Input Voltage 2 Other pollution degree and material group requirements yield a different limit. V 1 3 Some system level standards allow components to use the printed wiring DESAT −0.3 V to VDD2 + 0.3 V board (PWB) creepage values. The supported dc voltage may be higher for VI+,2 VI−,2 RESET2 −0.3 V to +6.5 V those standards. Output Voltage V 3 OUT −0.3 V to VDD2 + 0.3 V
ESD CAUTION
Common-Mode Transients (|CM|) −150 kV/μs to +150 kV/μs 1 Referenced to GND2. 2 Referenced to VSS1. 3 Referenced to VSS2. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability.
Table 9. Truth Table (Positive Logic)1 V 2 I+ Input VI− Input RESET Pin READY Pin FAULT Pin VDD1 State VDD2 State VGATE
L L H H H Powered Powered L L H H H H Powered Powered L H L H H H Powered Powered H H H H H H Powered Powered L X X H L Unknown Powered Powered L X X H Unknown L Powered Powered L L L H L Unknown Unpowered Powered L X X L3 Unknown H3 Powered Powered L X X X L Unknown Powered Unpowered Unknown 1 L is low, H is high, and X is don’t care. 2 VGATE is the voltage of the gate being driven. 3 Time dependent value. See Figure 22 for details on timing. Rev. 0 | Page 6 of 16 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Electrical Characteristics Package Characteristics Regulatory Information Insulation and Safety Related Specifications DIN V VDE V 0884-10 (VDE V 0884-10) Insulation Characteristics Recommended Operating Conditions Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performanace Characteristics Applications Information PCB Layout Propagation Delay Related Parameters Protection Features Fault Reporting Desaturation Detection Thermal Shutdown Undervoltage Lockout (UVLO) Faults READY Pin Pin Pin VI+ and VI− Operation Gate Resistance Selection Power Dissipation DC Correctness and Magnetic Field Immunity Insulation Lifetime Surface Tracking Insulation Wear Out Calculation and Use of Parameters Example Typical Application Outline Dimensions Ordering Guide
