Datasheet Addendum XFC236156.250000I (IDT)
| Fabricante | IDT |
| Descripción | 150fs Small Package Quartz-based PLL Oscillator |
| Páginas / Página | 2 / 1 — 156.250000MHz Crystal. XFC236156.250000I. Oscillator. Datasheet Addendum. … |
| Revisión | 20181207 |
| Formato / tamaño de archivo | PDF / 34 Kb |
| Idioma del documento | Inglés |

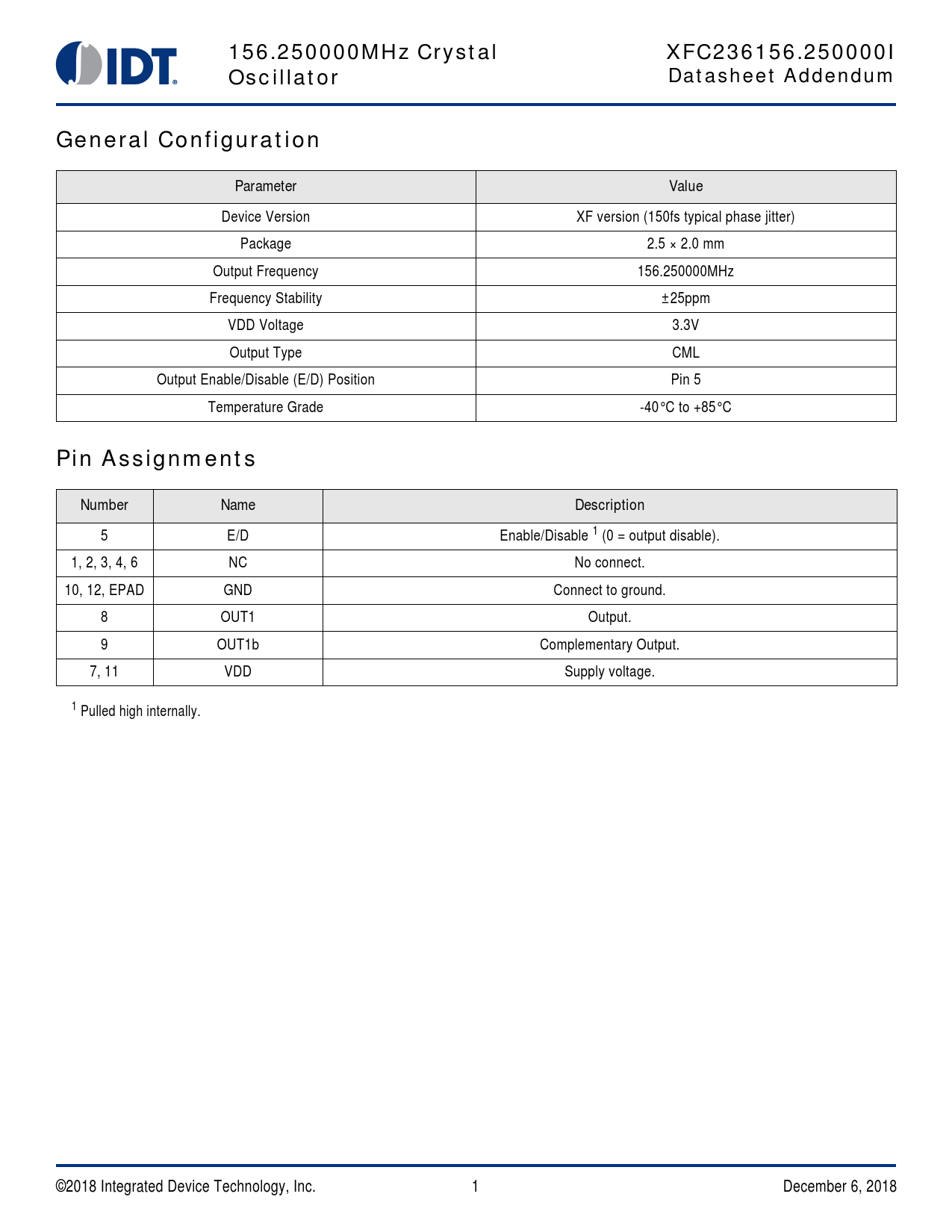

156.250000MHz Crystal. XFC236156.250000I. Oscillator. Datasheet Addendum. General Configuration. Parameter. Value. Pin Assignments
Línea de modelo para esta hoja de datos
Versión de texto del documento
156.250000MHz Crystal XFC236156.250000I Oscillator Datasheet Addendum General Configuration Parameter Value
Device Version XF version (150fs typical phase jitter) Package 2.5 × 2.0 mm Output Frequency 156.250000MHz Frequency Stability ±25ppm VDD Voltage 3.3V Output Type CML Output Enable/Disable (E/D) Position Pin 5 Temperature Grade -40°C to +85°C
Pin Assignments Number Name Description
5 E/D Enable/Disable 1 (0 = output disable). 1, 2, 3, 4, 6 NC No connect. 10, 12, EPAD GND Connect to ground. 8 OUT1 Output. 9 OUT1b Complementary Output. 7, 11 VDD Supply voltage. 1 Pulled high internally. ©2018 Integrated Device Technology, Inc. 1 December 6, 2018 Document Outline General Configuration Pin Assignments Revision History
Device Version XF version (150fs typical phase jitter) Package 2.5 × 2.0 mm Output Frequency 156.250000MHz Frequency Stability ±25ppm VDD Voltage 3.3V Output Type CML Output Enable/Disable (E/D) Position Pin 5 Temperature Grade -40°C to +85°C
Pin Assignments Number Name Description
5 E/D Enable/Disable 1 (0 = output disable). 1, 2, 3, 4, 6 NC No connect. 10, 12, EPAD GND Connect to ground. 8 OUT1 Output. 9 OUT1b Complementary Output. 7, 11 VDD Supply voltage. 1 Pulled high internally. ©2018 Integrated Device Technology, Inc. 1 December 6, 2018 Document Outline General Configuration Pin Assignments Revision History
