XF Datasheet

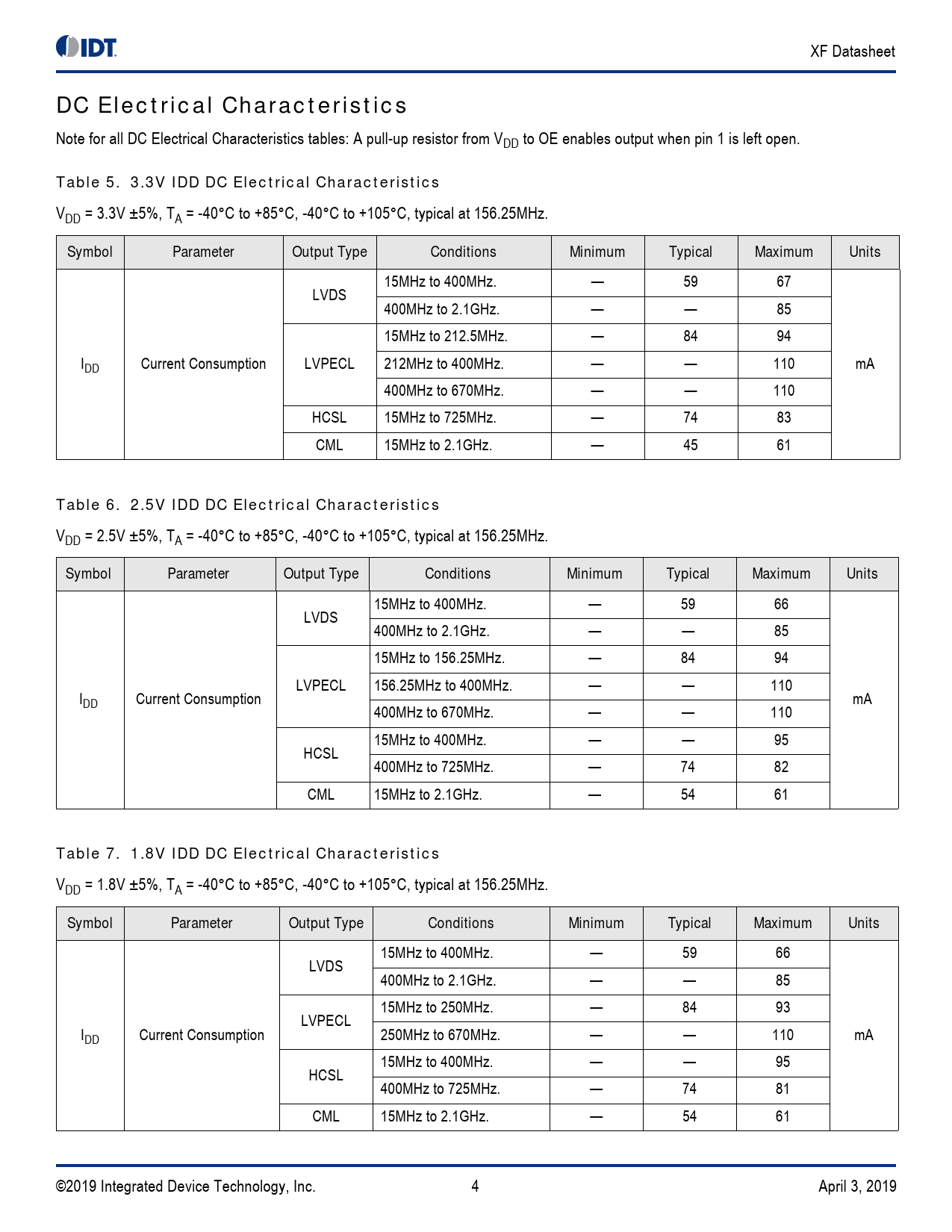

DC Electrical Characteristics
Note for all DC Electrical Characteristics tables: A pul -up resistor from VDD to OE enables output when pin 1 is left open.
Table 5. 3.3V IDD DC Electrical Characteristics
VDD = 3.3V ±5%, TA = -40°C to +85°C, -40°C to +105°C, typical at 156.25MHz.
Symbol Parameter Output Type Conditions Minimum Typical Maximum Units
15MHz to 400MHz. — 59 67 LVDS 400MHz to 2.1GHz. — — 85 15MHz to 212.5MHz. — 84 94 IDD Current Consumption LVPECL 212MHz to 400MHz. — — 110 mA 400MHz to 670MHz. — — 110 HCSL 15MHz to 725MHz. — 74 83 CML 15MHz to 2.1GHz. — 45 61
Table 6. 2.5V IDD DC Electrical Characteristics
VDD = 2.5V ±5%, TA = -40°C to +85°C, -40°C to +105°C, typical at 156.25MHz.
Symbol Parameter Output Type Conditions Minimum Typical Maximum Units
15MHz to 400MHz. — 59 66 LVDS 400MHz to 2.1GHz. — — 85 15MHz to 156.25MHz. — 84 94 LVPECL 156.25MHz to 400MHz. — — 110 IDD Current Consumption mA 400MHz to 670MHz. — — 110 15MHz to 400MHz. — — 95 HCSL 400MHz to 725MHz. — 74 82 CML 15MHz to 2.1GHz. — 54 61
Table 7. 1.8V IDD DC Electrical Characteristics
VDD = 1.8V ±5%, TA = -40°C to +85°C, -40°C to +105°C, typical at 156.25MHz.
Symbol Parameter Output Type Conditions Minimum Typical Maximum Units
15MHz to 400MHz. — 59 66 LVDS 400MHz to 2.1GHz. — — 85 15MHz to 250MHz. — 84 93 LVPECL IDD Current Consumption 250MHz to 670MHz. — — 110 mA 15MHz to 400MHz. — — 95 HCSL 400MHz to 725MHz. — 74 81 CML 15MHz to 2.1GHz. — 54 61 ©2019 Integrated Device Technology, Inc. 4 April 3, 2019 Document Outline Description Pin Assignments Features Typical Applications Table 1. Pin Descriptions Absolute Maximum Ratings Table 2. Absolute Maximum Ratings ESD Compliance Table 3. ESD Compliance Mechanical Testing Table 4. Mechanical Testing * Solder Reflow Profile DC Electrical Characteristics Table 5. 3.3V IDD DC Electrical Characteristics Table 6. 2.5V IDD DC Electrical Characteristics Table 7. 1.8V IDD DC Electrical Characteristics Table 8. LVCMOS DC Electrical Characteristics Table 9. LVDS DC Electrical Characteristics Table 10. LVPECL DC Electrical Characteristics Table 11. HCSL DC Electrical Characteristics Table 12. CML DC Electrical Characteristics Table 13. DC Electrical Characteristics – Leakage Current AC Electrical Characteristics Table 14. 3.3V AC Electrical Characteristics Table 15. 2.5V AC Electrical Characteristics Table 16. 1.8V AC Electrical Characteristics Table 17. Phase Jitter Characteristics Output Waveforms Figure 1. LVDS Output Waveforms Figure 2. LVPECL Output Waveforms Figure 3. HCSL Output Waveforms Figure 4. CML Output Waveforms Termination for 3.3V LVPECL Outputs Figure 5. 3.3V LVPECL Output Termination Figure 6. 3.3V LVPECL Output Termination Termination for 2.5V LVPECL Outputs Figure 7. 2.5V LVPECL Driver Termination Example Figure 8. 2.5V LVPECL Driver Termination Example Figure 9. 2.5V LVPECL Driver Termination Example LVDS Driver Termination Figure 10. Standard LVDS Termination Figure 11. Optional LVDS Termination Recommended Termination for HCSL Outputs Figure 12. Recommended Source Termination (where the driver and receiver will be on separate PCBs) Figure 13. Recommended Termination (where a point-to-point connection can be used) CML Termination Figure 14. CML Termination Example Package Outline Drawings Marking Diagram Ordering Information Revision History
