Preliminary Datasheet CXT-741Gxx (Cissoid) - 7
| Fabricante | Cissoid |
| Descripción | High Temperature Automotive Configurable Logic Gates |
| Páginas / Página | 12 / 7 — May. 19. High Temperature Automotive Configurable Logic Gates. … |
| Revisión | 1.0 |
| Formato / tamaño de archivo | PDF / 332 Kb |
| Idioma del documento | Inglés |
May. 19. High Temperature Automotive Configurable Logic Gates. Preliminary Datasheet
Línea de modelo para esta hoja de datos
Versión de texto del documento
Contact : Gonzalo Picún (+32-10-489214)

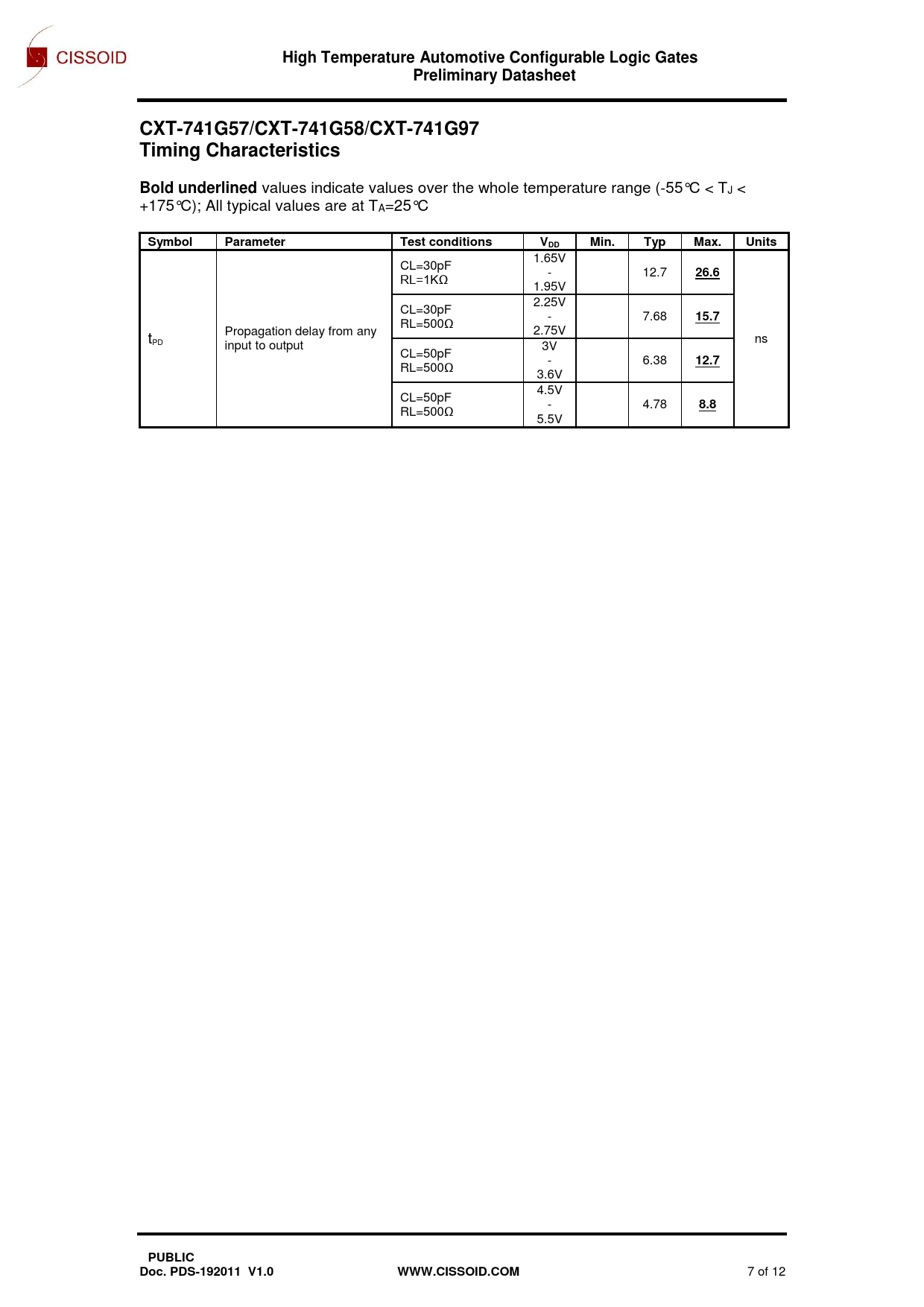

May. 19 High Temperature Automotive Configurable Logic Gates Preliminary Datasheet CXT-741G57/CXT-741G58/CXT-741G97 Timing Characteristics Bold underlined
values indicate values over the whole temperature range (-55°C < TJ < +175°C); All typical values are at TA=25°C
Symbol Parameter Test conditions VDD Min. Typ Max. Units
1.65V CL=30pF RL=1KΩ - 12.7
26.6
1.95V 2.25V CL=30pF - 7.68
15.7
RL=500Ω Propagation delay from any 2.75V tPD ns input to output 3V CL=50pF - 6.38
12.7
RL=500Ω 3.6V 4.5V CL=50pF - 4.78
8.8
RL=500Ω 5.5V
PUBLIC Doc. PDS-192011 V1.0 WWW.CISSOID.COM
7 of 12
May. 19 High Temperature Automotive Configurable Logic Gates Preliminary Datasheet CXT-741G57/CXT-741G58/CXT-741G97 Timing Characteristics Bold underlined
values indicate values over the whole temperature range (-55°C < TJ < +175°C); All typical values are at TA=25°C
Symbol Parameter Test conditions VDD Min. Typ Max. Units
1.65V CL=30pF RL=1KΩ - 12.7
26.6
1.95V 2.25V CL=30pF - 7.68
15.7
RL=500Ω Propagation delay from any 2.75V tPD ns input to output 3V CL=50pF - 6.38
12.7
RL=500Ω 3.6V 4.5V CL=50pF - 4.78
8.8
RL=500Ω 5.5V
PUBLIC Doc. PDS-192011 V1.0 WWW.CISSOID.COM
7 of 12
