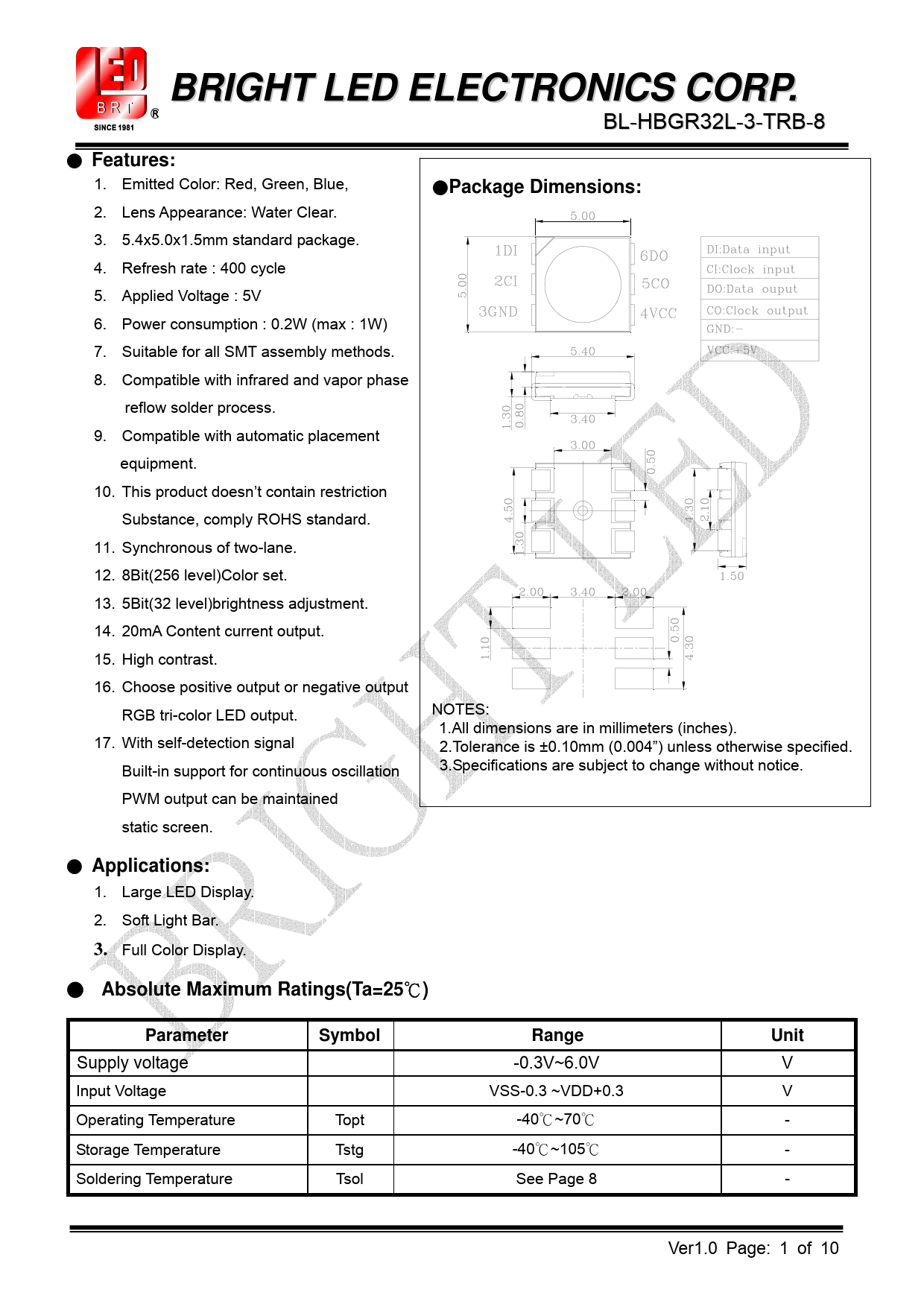

BRIGHT LED ELECTRONICS CORP.
BL-HBGR32L-3-TRB-8 ●
Features:
1. Emitted Color: Red, Green, Blue, ●
Package Dimensions:
2. Lens Appearance: Water Clear. 3. 5.4x5.0x1.5mm standard package. 4. Refresh rate : 400 cycle 5. Applied Voltage : 5V 6. Power consumption : 0.2W (max : 1W) 7. Suitable for all SMT assembly methods. 8. Compatible with infrared and vapor phase reflow solder process. 9. Compatible with automatic placement equipment. 10. This product doesn’t contain restriction Substance, comply ROHS standard. 11. Synchronous of two-lane. 12. 8Bit(256 level)Color set. 13. 5Bit(32 level)brightness adjustment. 14. 20mA Content current output. 15. High contrast. 16. Choose positive output or negative output RGB tri-color LED output. NOTES: 1.All dimensions are in millimeters (inches). 17. With self-detection signal 2.Tolerance is ±0.10mm (0.004”) unless otherwise specified. Built-in support for continuous oscillation 3.Specifications are subject to change without notice. PWM output can be maintained static screen. ●
Applications:
1. Large LED Display. 2. Soft Light Bar.
3.
Full Color Display. ●
Absolute Maximum Ratings(Ta=25
℃
) Parameter Symbol Range Unit
Supply voltage -0.3V~6.0V V Input Voltage VSS-0.3 ~VDD+0.3 V Operating Temperature Topt -40℃~70℃ - Storage Temperature Tstg -40℃~105℃ - Soldering Temperature Tsol See Page 8 - Ver1.0 Page: 1 of 10
