Datasheet S-35720 (ABLIC) - 4
| Fabricante | ABLIC |
| Descripción | Pin-selectable Wake-up Timer IC |
| Páginas / Página | 20 / 4 — WAKE-UP TIMER IC PIN-SELECTABLE WAKE-UP TIMER IC S-35720 Series. Pin … |
| Revisión | 1.0_00 |
| Formato / tamaño de archivo | PDF / 414 Kb |
| Idioma del documento | Inglés |

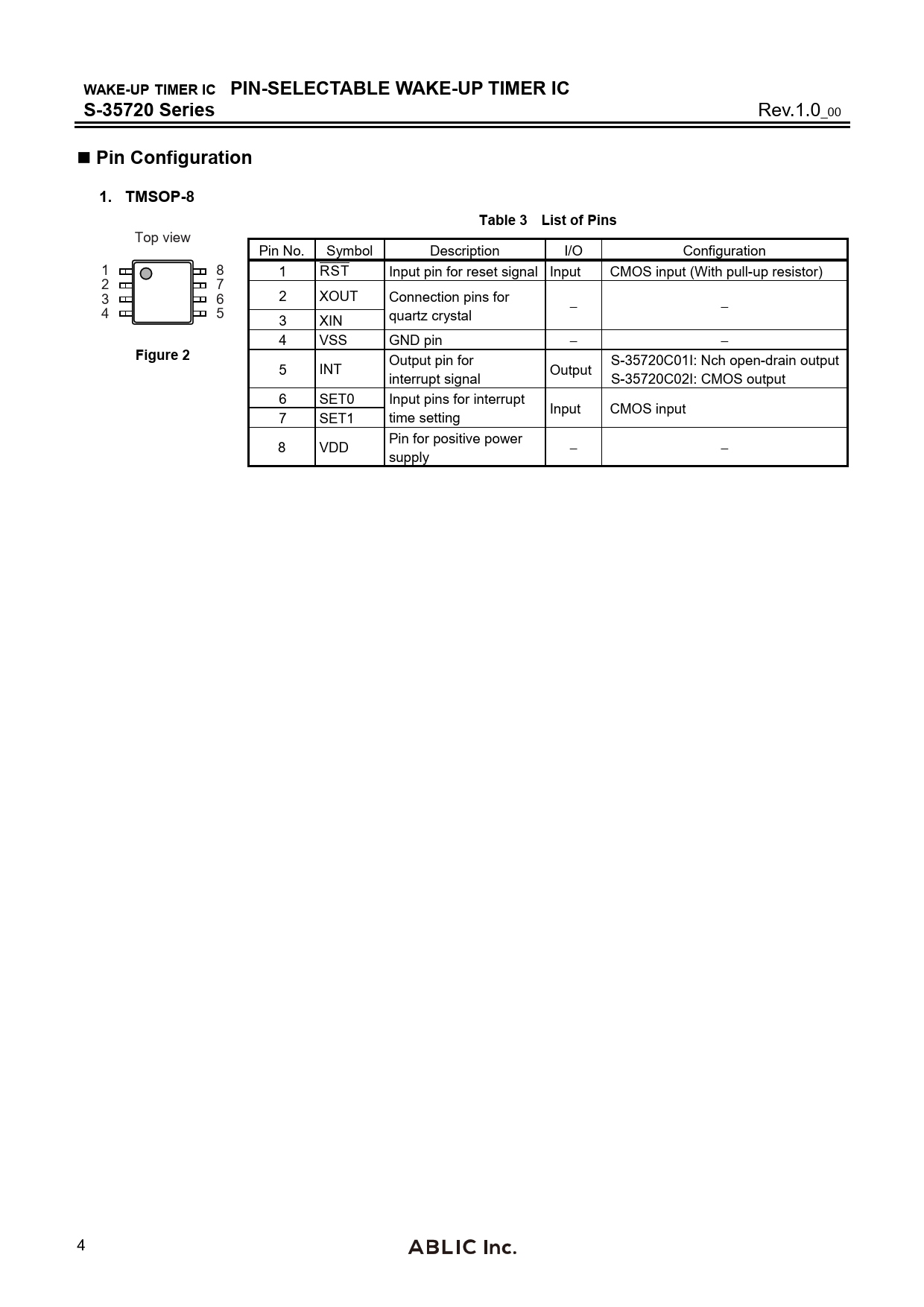

WAKE-UP TIMER IC PIN-SELECTABLE WAKE-UP TIMER IC S-35720 Series. Pin Configuration. 1. TMSOP-8. Table 3 List of Pins. Figure 2
Línea de modelo para esta hoja de datos
Versión de texto del documento
WAKE-UP TIMER IC PIN-SELECTABLE WAKE-UP TIMER IC S-35720 Series
Rev.1.0_00
Pin Configuration 1. TMSOP-8 Table 3 List of Pins
Top view Pin No. Symbol Description I/O Configuration _______ 1 8 1 RST Input pin for reset signal Input CMOS input (With pull-up resistor) 2 7 3 6 2 XOUT Connection pins for 4 5 − − quartz crystal 3 XIN 4 VSS GND pin − −
Figure 2
Output pin for S-35720C01I: Nch open-drain output 5 INT Output interrupt signal S-35720C02I: CMOS output 6 SET0 Input pins for interrupt Input CMOS input 7 SET1 time setting Pin for positive power 8 VDD − − supply 4
