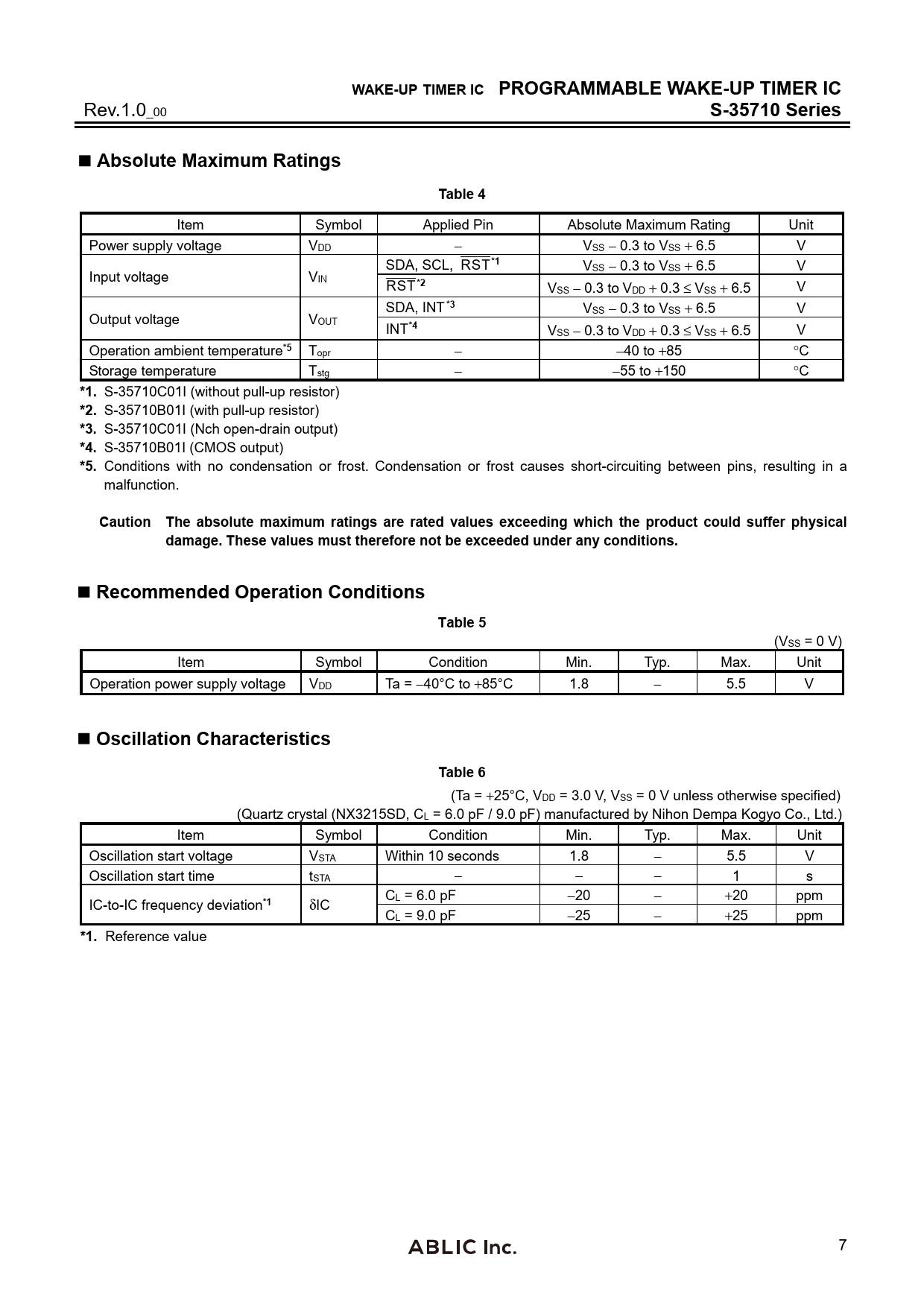

Datasheet S-35710 (ABLIC) - 7

WAKE-UP TIMER IC PROGRAMMABLE WAKE-UP TIMER IC
Rev.1.0_00
S-35710 Series Absolute Maximum Ratings Table 4
Item Symbol Applied Pin Absolute Maximum Rating Unit Power supply voltage VDD − VSS − 0.3 to VSS + 6.5 V _______ SDA, SCL, RST
*1
VSS − 0.3 to VSS + 6.5 V Input voltage VIN _______ RST
*2
V SS − 0.3 to VDD + 0.3 ≤ VSS + 6.5 V SDA, INT
*3
VSS − 0.3 to VSS + 6.5 V Output voltage VOUT INT
*4
V SS − 0.3 to VDD + 0.3 ≤ VSS + 6.5 V Operation ambient temperature
*5
Topr − −40 to +85 °C Storage temperature Tstg − −55 to +150 °C
*1.
S-35710C01I (without pull-up resistor)
*2.
S-35710B01I (with pull-up resistor)
*3.
S-35710C01I (Nch open-drain output)
*4.
S-35710B01I (CMOS output)
*5.
Conditions with no condensation or frost. Condensation or frost causes short-circuiting between pins, resulting in a malfunction.
Caution The absolute maximum ratings are rated values exceeding which the product could suffer physical damage. These values must therefore not be exceeded under any conditions. Recommended Operation Conditions Table 5
(VSS = 0 V) Item Symbol Condition Min. Typ. Max. Unit Operation power supply voltage VDD Ta = −40°C to +85°C 1.8 − 5.5 V
Oscillation Characteristics Table 6
(Ta = +25°C, VDD = 3.0 V, VSS = 0 V unless otherwise specified) (Quartz crystal (NX3215SD, CL = 6.0 pF / 9.0 pF) manufactured by Nihon Dempa Kogyo Co., Ltd.) Item Symbol Condition Min. Typ. Max. Unit Oscillation start voltage VSTA Within 10 seconds 1.8 − 5.5 V Oscillation start time tSTA − − − 1 s C IC-to-IC frequency deviation
*1
δIC L = 6.0 pF −20 − +20 ppm CL = 9.0 pF −25 − +25 ppm
*1.
Reference value 7
