Datasheet BZX84 (Nexperia) - 3
| Fabricante | Nexperia |
| Descripción | Voltage regulator diodes |
| Páginas / Página | 16 / 3 — Nexperia. BZX84 series. Voltage regulator diodes. Table 4. Marking codes. … |
| Revisión | 07082018 |
| Formato / tamaño de archivo | PDF / 1.0 Mb |
| Idioma del documento | Inglés |
Nexperia. BZX84 series. Voltage regulator diodes. Table 4. Marking codes. Type number. Marking code[1]. Product data sheet
Línea de modelo para esta hoja de datos
- BZX84-A10,215 BZX84-A11,215 BZX84-A12,215 BZX84-A13,215 BZX84-A15,215 BZX84-A16,215 BZX84-A20,215 BZX84-A22,215 BZX84-A22,235 BZX84-A24,215 BZX84-A27,215 BZX84-A2V4,215 BZX84-A2V4,235 BZX84-A2V7,215 BZX84-A30,215 BZX84-A33,215 BZX84-A36,215 BZX84-A39,215 BZX84-A3V0,215 BZX84-A3V3,215 BZX84-A3V6,215 BZX84-A3V9,215 BZX84-A43,215 BZX84-A4V3,215 BZX84-A4V7,215 BZX84-A51,215 BZX84-A5V1,215 BZX84-A5V1,235 BZX84-A5V6,215 BZX84-A6V2,215 BZX84-A6V8,215 BZX84-A75,215 BZX84-A7V5,215 BZX84-A8V2,215 BZX84-A9V1,215 BZX84-B10,215 BZX84-B10,235 BZX84-B11,215 BZX84-B11,235 BZX84-B12,215 BZX84-B13,215 BZX84-B13,235 BZX84-B15,215 BZX84-B15,235 BZX84-B16,215 BZX84-B18,215 BZX84-B18,235 BZX84-B20,215 BZX84-B20,235 BZX84-B22,215 BZX84-B22,235 BZX84-B24,215 BZX84-B27,215 BZX84-B27,235 BZX84-B2V4,215 BZX84-B2V7,215 BZX84-B30,215 BZX84-B33,215 BZX84-B36,215 BZX84-B39,215 BZX84-B3V0,215 BZX84-B3V0,235 BZX84-B3V3,215 BZX84-B3V6,215 BZX84-B3V6VL BZX84-B3V9,215 BZX84-B43,215 BZX84-B47,215 BZX84-B4V3,215 BZX84-B4V3,235 BZX84-B4V7,215 BZX84-B51,215 BZX84-B56,215 BZX84-B5V1,215 BZX84-B5V1,235 BZX84-B5V6,215 BZX84-B5V6,235 BZX84-B62,215 BZX84-B68,215 BZX84-B6V2,215 BZX84-B6V8,215 BZX84-B75,215 BZX84-B7V5,215 BZX84-B7V5,235 BZX84-B8V2,215 BZX84-B8V2,235 BZX84-B9V1,215 BZX84-C10,215 BZX84-C10,235 BZX84-C11,215 BZX84-C11,235 BZX84-C12,215 BZX84-C12,235 BZX84-C13,215 BZX84-C13,235 BZX84-C15,215 BZX84-C15,235 BZX84-C15/CH,235 BZX84-C15/DG,215 BZX84-C16,215 BZX84-C16,235 BZX84-C18,215 BZX84-C18,235 BZX84-C20,215 BZX84-C20,235 BZX84-C22,215 BZX84-C22,235 BZX84-C24,215 BZX84-C24,235 BZX84-C27,215 BZX84-C27,235 BZX84-C2V4,215 BZX84-C2V4,235 BZX84-C2V7,215 BZX84-C2V7,235 BZX84-C30,215 BZX84-C30,235 BZX84-C33,215 BZX84-C33,235 BZX84-C36,215 BZX84-C36,235 BZX84-C39,215 BZX84-C39,235 BZX84-C3V0,215 BZX84-C3V0,235 BZX84-C3V3,215 BZX84-C3V3,235 BZX84-C3V6,215 BZX84-C3V6,235 BZX84-C3V9,215 BZX84-C3V9,235 BZX84-C43,215 BZX84-C47,215 BZX84-C47,235 BZX84-C4V3,215 BZX84-C4V3,235 BZX84-C4V7,215 BZX84-C4V7,235 BZX84-C51,215 BZX84-C51,235 BZX84-C56,215 BZX84-C5V1,215 BZX84-C5V1,235 BZX84-C5V1/DG,215 BZX84-C5V6,215 BZX84-C5V6,235 BZX84-C5V6/CH,235 BZX84-C5V6/DG,215 BZX84-C62,215 BZX84-C62,235 BZX84-C68,215 BZX84-C68,235 BZX84-C6V2,215 BZX84-C6V2,235 BZX84-C6V8,215 BZX84-C6V8,235 BZX84-C75,215 BZX84-C75,235 BZX84-C7V5,215 BZX84-C7V5,235 BZX84-C8V2,215 BZX84-C8V2,235 BZX84-C9V1,215 BZX84-C9V1,235
Versión de texto del documento

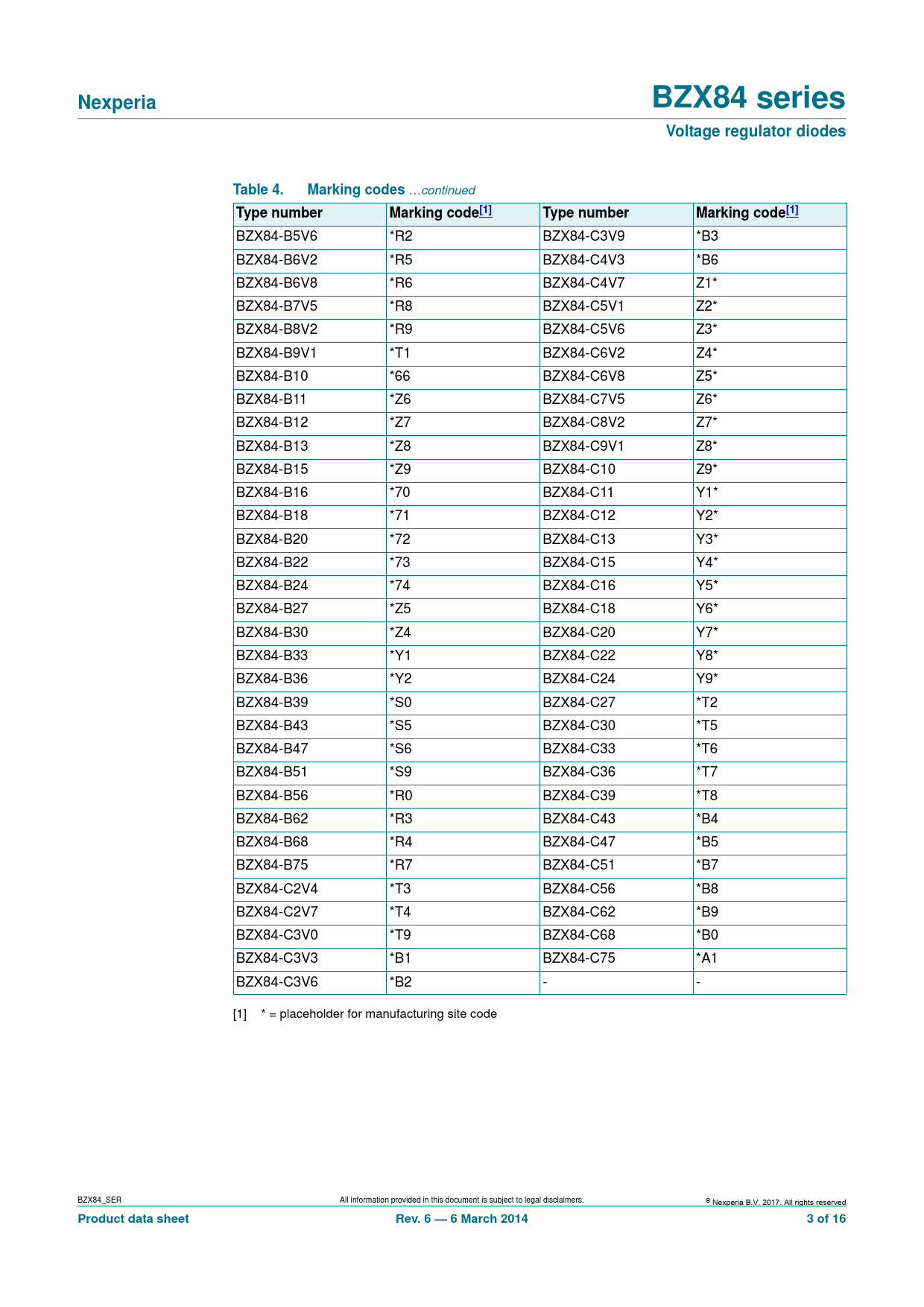

Nexperia BZX84 series Voltage regulator diodes Table 4. Marking codes
…continued
Type number Marking code[1] Type number Marking code[1]
BZX84-B5V6 *R2 BZX84-C3V9 *B3 BZX84-B6V2 *R5 BZX84-C4V3 *B6 BZX84-B6V8 *R6 BZX84-C4V7 Z1* BZX84-B7V5 *R8 BZX84-C5V1 Z2* BZX84-B8V2 *R9 BZX84-C5V6 Z3* BZX84-B9V1 *T1 BZX84-C6V2 Z4* BZX84-B10 *66 BZX84-C6V8 Z5* BZX84-B11 *Z6 BZX84-C7V5 Z6* BZX84-B12 *Z7 BZX84-C8V2 Z7* BZX84-B13 *Z8 BZX84-C9V1 Z8* BZX84-B15 *Z9 BZX84-C10 Z9* BZX84-B16 *70 BZX84-C11 Y1* BZX84-B18 *71 BZX84-C12 Y2* BZX84-B20 *72 BZX84-C13 Y3* BZX84-B22 *73 BZX84-C15 Y4* BZX84-B24 *74 BZX84-C16 Y5* BZX84-B27 *Z5 BZX84-C18 Y6* BZX84-B30 *Z4 BZX84-C20 Y7* BZX84-B33 *Y1 BZX84-C22 Y8* BZX84-B36 *Y2 BZX84-C24 Y9* BZX84-B39 *S0 BZX84-C27 *T2 BZX84-B43 *S5 BZX84-C30 *T5 BZX84-B47 *S6 BZX84-C33 *T6 BZX84-B51 *S9 BZX84-C36 *T7 BZX84-B56 *R0 BZX84-C39 *T8 BZX84-B62 *R3 BZX84-C43 *B4 BZX84-B68 *R4 BZX84-C47 *B5 BZX84-B75 *R7 BZX84-C51 *B7 BZX84-C2V4 *T3 BZX84-C56 *B8 BZX84-C2V7 *T4 BZX84-C62 *B9 BZX84-C3V0 *T9 BZX84-C68 *B0 BZX84-C3V3 *B1 BZX84-C75 *A1 BZX84-C3V6 *B2 - - [1] * = placeholder for manufacturing site code BZX84_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 6 — 6 March 2014 3 of 16
Document Outline 1. Product profile 1.1 General description 1.2 Features and benefits 1.3 Applications 1.4 Quick reference data 2. Pinning information 3. Ordering information 4. Marking 5. Limiting values 6. Thermal characteristics 7. Characteristics 8. Test information 8.1 Quality information 9. Package outline 10. Packing information 11. Soldering 12. Revision history 13. Legal information 13.1 Data sheet status 13.2 Definitions 13.3 Disclaimers 13.4 Trademarks 14. Contact information 15. Contents
