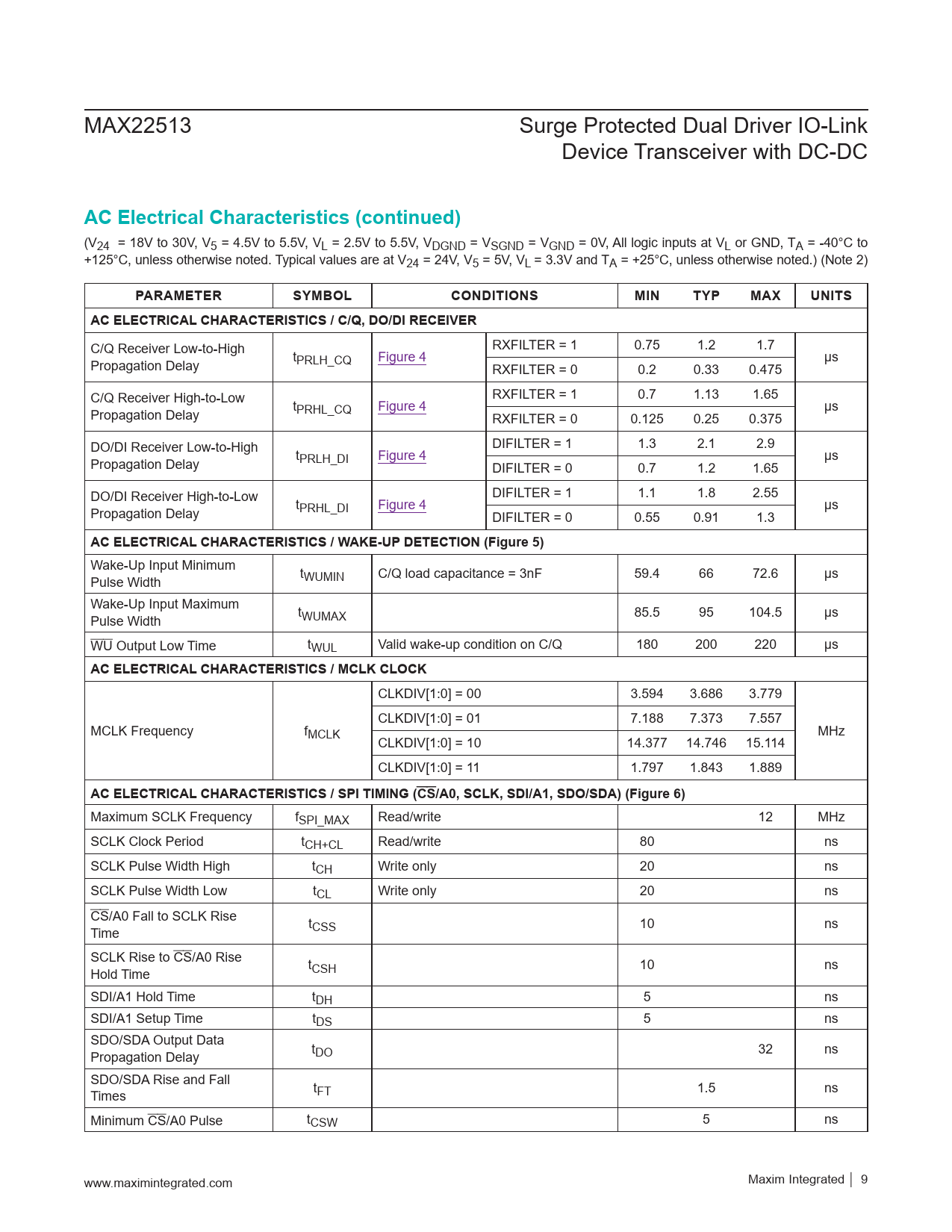

AC Electrical Characteristics (continued). PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX. UNITS
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 12 link to page 12 link to page 12 link to page 12 MAX22513 Surge Protected Dual Driver IO-Link Device Transceiver with DC-DC
AC Electrical Characteristics (continued)
(V24 = 18V to 30V, V5 = 4.5V to 5.5V, VL = 2.5V to 5.5V, VDGND = VSGND = VGND = 0V, All logic inputs at VL or GND, TA = -40°C to +125°C, unless otherwise noted. Typical values are at V24 = 24V, V5 = 5V, VL = 3.3V and TA = +25°C, unless otherwise noted.) (Note 2)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS AC ELECTRICAL CHARACTERISTICS / C/Q, DO/DI RECEIVER
C/Q Receiver Low-to-High RXFILTER = 1 0.75 1.2 1.7 Propagation Delay tPRLH_CQ Figure 4 μs RXFILTER = 0 0.2 0.33 0.475 C/Q Receiver High-to-Low RXFILTER = 1 0.7 1.13 1.65 Propagation Delay tPRHL_CQ Figure 4 μs RXFILTER = 0 0.125 0.25 0.375 DO/DI Receiver Low-to-High DIFILTER = 1 1.3 2.1 2.9 Propagation Delay tPRLH_DI Figure 4 μs DIFILTER = 0 0.7 1.2 1.65 DO/DI Receiver High-to-Low DIFILTER = 1 1.1 1.8 2.55 Propagation Delay tPRHL_DI Figure 4 μs DIFILTER = 0 0.55 0.91 1.3
AC ELECTRICAL CHARACTERISTICS / WAKE-UP DETECTION (Figure 5)
Wake-Up Input Minimum Pulse Width tWUMIN C/Q load capacitance = 3nF 59.4 66 72.6 μs Wake-Up Input Maximum Pulse Width tWUMAX 85.5 95 104.5 μs WU Output Low Time tWUL Valid wake-up condition on C/Q 180 200 220 μs
AC ELECTRICAL CHARACTERISTICS / MCLK CLOCK
CLKDIV[1:0] = 00 3.594 3.686 3.779 CLKDIV[1:0] = 01 7.188 7.373 7.557 MCLK Frequency fMCLK MHz CLKDIV[1:0] = 10 14.377 14.746 15.114 CLKDIV[1:0] = 11 1.797 1.843 1.889
AC ELECTRICAL CHARACTERISTICS / SPI TIMING (CS/A0, SCLK, SDI/A1, SDO/SDA) (Figure 6)
Maximum SCLK Frequency fSPI_MAX Read/write 12 MHz SCLK Clock Period tCH+CL Read/write 80 ns SCLK Pulse Width High tCH Write only 20 ns SCLK Pulse Width Low tCL Write only 20 ns CS/A0 Fall to SCLK Rise t Time CSS 10 ns SCLK Rise to CS/A0 Rise t Hold Time CSH 10 ns SDI/A1 Hold Time tDH 5 ns SDI/A1 Setup Time tDS 5 ns SDO/SDA Output Data Propagation Delay tDO 32 ns SDO/SDA Rise and Fall Times tFT 1.5 ns Minimum CS/A0 Pulse tCSW 5 ns www.maximintegrated.com Maxim Integrated │ 9
