Datasheet IM231-M6S1B / IM231-M6T2B (Infineon) - 3
| Fabricante | Infineon |
| Descripción | 600 V three-phase Intelligent Power Module |
| Páginas / Página | 24 / 3 — CIPOS™ Micro. IM231-M6S1B / IM231-M6T2B. Schematic. Internal Electrical … |
| Revisión | 02_00 |
| Formato / tamaño de archivo | PDF / 1.4 Mb |
| Idioma del documento | Inglés |

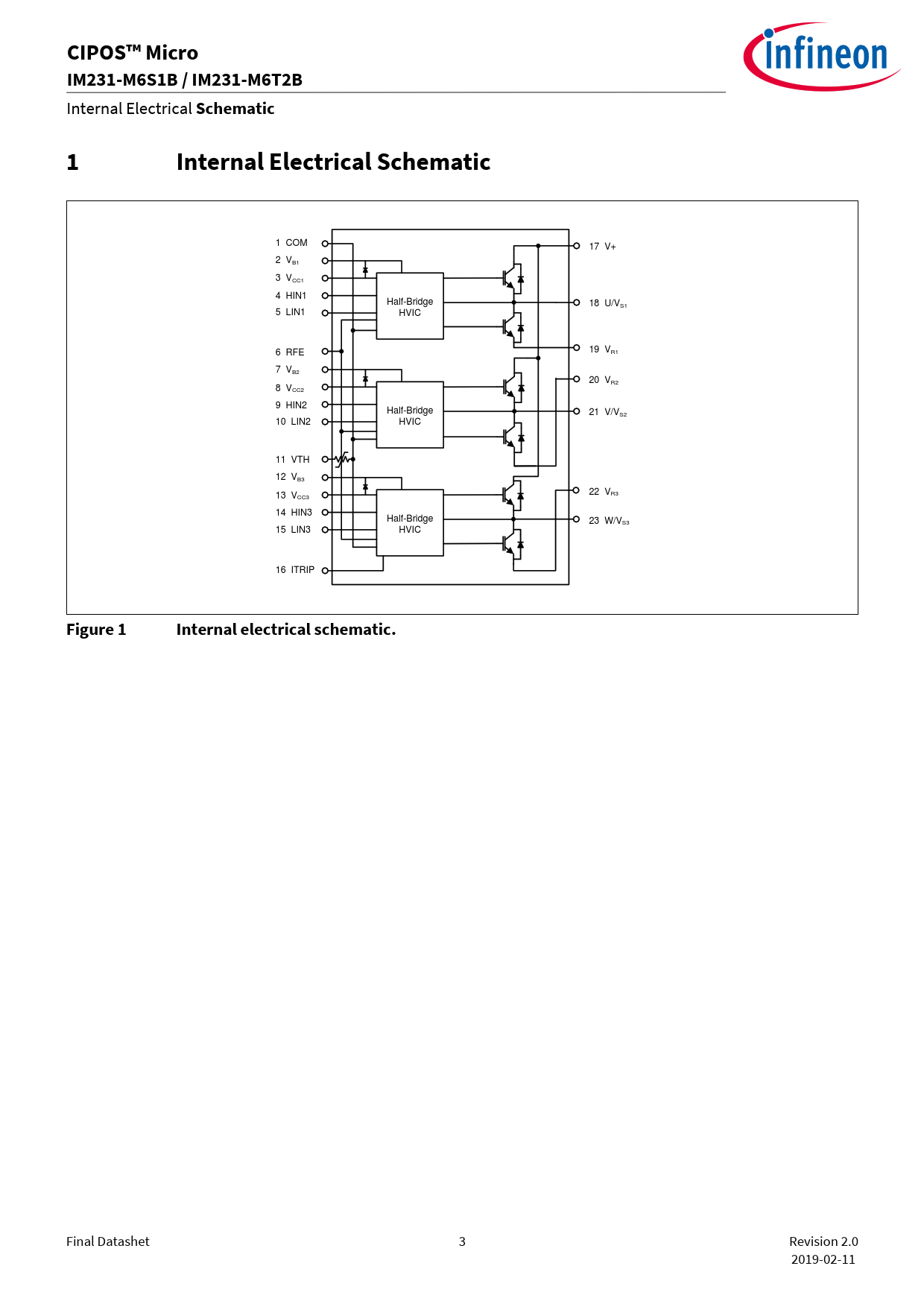

CIPOS™ Micro. IM231-M6S1B / IM231-M6T2B. Schematic. Internal Electrical Schematic. Figure 1. Internal electrical schematic
Línea de modelo para esta hoja de datos
Versión de texto del documento
CIPOS™ Micro IM231-M6S1B / IM231-M6T2B
Internal Electrical
Schematic 1 Internal Electrical Schematic
1 COM 17 V+ 2 VB1 3 VCC1 4 HIN1 Half-Bridge 18 U/VS1 5 LIN1 HVIC 6 RFE 19 VR1 7 VB2 20 VR2 8 VCC2 9 HIN2 Half-Bridge 21 V/VS2 10 LIN2 HVIC 11 VTH 12 VB3 13 V 22 VR3 CC3 14 HIN3 Half-Bridge 23 W/VS3 15 LIN3 HVIC 16 ITRIP
Figure 1 Internal electrical schematic.
Final Datashet 3 Revision 2.0 2019-02-11 Document Outline Description Features Potential Applications Product validation Table 1 Part Ordering Table Table of contents 1 Internal Electrical Schematic 2 Pin Configuration 3 Absolute Maximum Rating 4 Thermal Characteristics 5 Recommended Operating Conditions 6 Static Parameters 7 Dynamic Parameters 8 Thermistor Characteristics 9 Mechanical Characteristics and Ratings 10 Qualification Information 11 Diagrams & Tables 12 Application Guide 13 Package Outline 14 Revision History Disclaimer
