Datasheet CL7003C2 (CEL) - 2
| Fabricante | CEL |
| Descripción | Ultraviolet C Light Emitting Diode |
| Páginas / Página | 7 / 2 — DATA SHEET: CL7003C2. ULTRAVIOLET C LIGHT EMITTING DIODE. Absolute … |
| Formato / tamaño de archivo | PDF / 699 Kb |
| Idioma del documento | Inglés |
DATA SHEET: CL7003C2. ULTRAVIOLET C LIGHT EMITTING DIODE. Absolute Maximum Ratings：. Electrical and Optical Characteristics:
Línea de modelo para esta hoja de datos
Versión de texto del documento

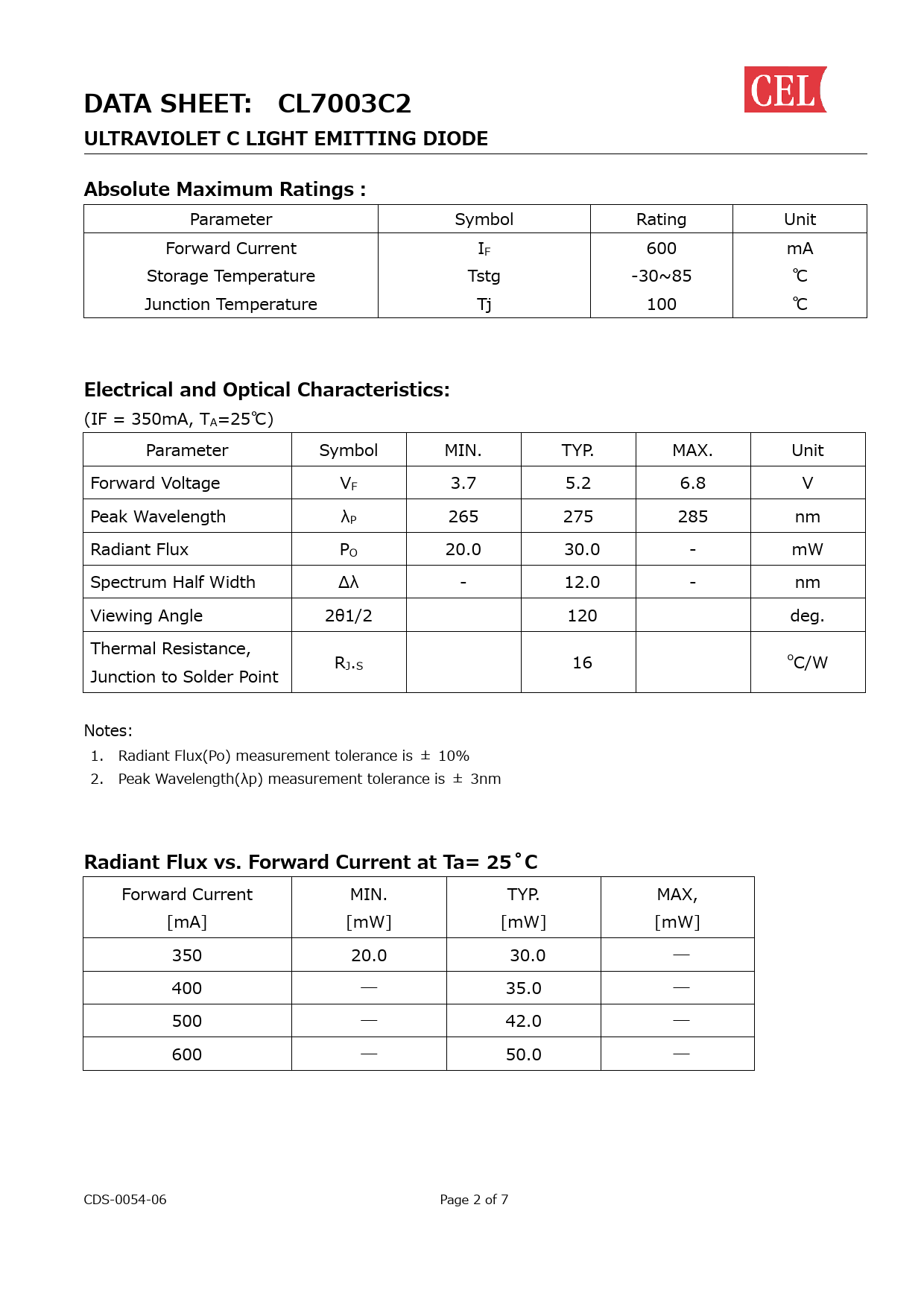

DATA SHEET: CL7003C2 ULTRAVIOLET C LIGHT EMITTING DIODE Absolute Maximum Ratings：
Parameter Symbol Rating Unit Forward Current IF 600 mA Storage Temperature Tstg -30~85 ℃ Junction Temperature Tj 100 ℃
Electrical and Optical Characteristics:
(IF = 350mA, TA=25℃) Parameter Symbol MIN. TYP. MAX. Unit Forward Voltage VF 3.7 5.2 6.8 V Peak Wavelength λP 265 275 285 nm Radiant Flux PO 20.0 30.0 - mW Spectrum Half Width Δλ - 12.0 - nm Viewing Angle 2θ1/2 120 deg. Thermal Resistance, RJ.S 16 oC/W Junction to Solder Point Notes: 1. Radiant Flux(Po) measurement tolerance is ± 10% 2. Peak Wavelength(λp) measurement tolerance is ± 3nm
Radiant Flux vs. Forward Current at Ta= 25˚C
Forward Current MIN. TYP. MAX, [mA] [mW] [mW] [mW] 350 20.0 30.0 ― 400 ― 35.0 ― 500 ― 42.0 ― 600 ― 50.0 ― CDS-0054-06 Page 2 of 7
Parameter Symbol Rating Unit Forward Current IF 600 mA Storage Temperature Tstg -30~85 ℃ Junction Temperature Tj 100 ℃
Electrical and Optical Characteristics:
(IF = 350mA, TA=25℃) Parameter Symbol MIN. TYP. MAX. Unit Forward Voltage VF 3.7 5.2 6.8 V Peak Wavelength λP 265 275 285 nm Radiant Flux PO 20.0 30.0 - mW Spectrum Half Width Δλ - 12.0 - nm Viewing Angle 2θ1/2 120 deg. Thermal Resistance, RJ.S 16 oC/W Junction to Solder Point Notes: 1. Radiant Flux(Po) measurement tolerance is ± 10% 2. Peak Wavelength(λp) measurement tolerance is ± 3nm
Radiant Flux vs. Forward Current at Ta= 25˚C
Forward Current MIN. TYP. MAX, [mA] [mW] [mW] [mW] 350 20.0 30.0 ― 400 ― 35.0 ― 500 ― 42.0 ― 600 ― 50.0 ― CDS-0054-06 Page 2 of 7
