Datasheet SM8S-Q (Bourns) - 4
| Fabricante | Bourns |
| Descripción | 6600 W TVS Diodes - VWM 16~43 V - DO-218 Package - AEC-Q101 Compliant |
| Páginas / Página | 8 / 4 — 3312 - 2 mm SMD. SM8S-Q Transient V. Trimming Potentiometer. oltage … |
| Formato / tamaño de archivo | PDF / 523 Kb |
| Idioma del documento | Inglés |
3312 - 2 mm SMD. SM8S-Q Transient V. Trimming Potentiometer. oltage Suppressor Diode Series. Performance Graphs
Línea de modelo para esta hoja de datos
- SM8S16A SM8S16A-Q SM8S16CA SM8S16CA-Q SM8S17A SM8S17A-Q SM8S17CA SM8S17CA-Q SM8S18A SM8S18A-Q SM8S18CA SM8S18CA-Q SM8S20A SM8S20A-Q SM8S20CA SM8S20CA-Q SM8S22A SM8S22A-Q SM8S22CA SM8S22CA-Q SM8S24A SM8S24A-Q SM8S24CA SM8S24CA-Q SM8S26A SM8S26A-Q SM8S26CA SM8S26CA-Q SM8S28A SM8S28A-Q SM8S28CA SM8S28CA-Q SM8S30A SM8S30A-Q SM8S30CA SM8S30CA-Q SM8S33A SM8S33A-Q SM8S33CA SM8S33CA-Q SM8S36A SM8S36A-Q SM8S36CA SM8S36CA-Q SM8S40A SM8S40A-Q SM8S40CA SM8S40CA-Q SM8S43A SM8S43A-Q SM8S43CA SM8S43CA-Q
Versión de texto del documento

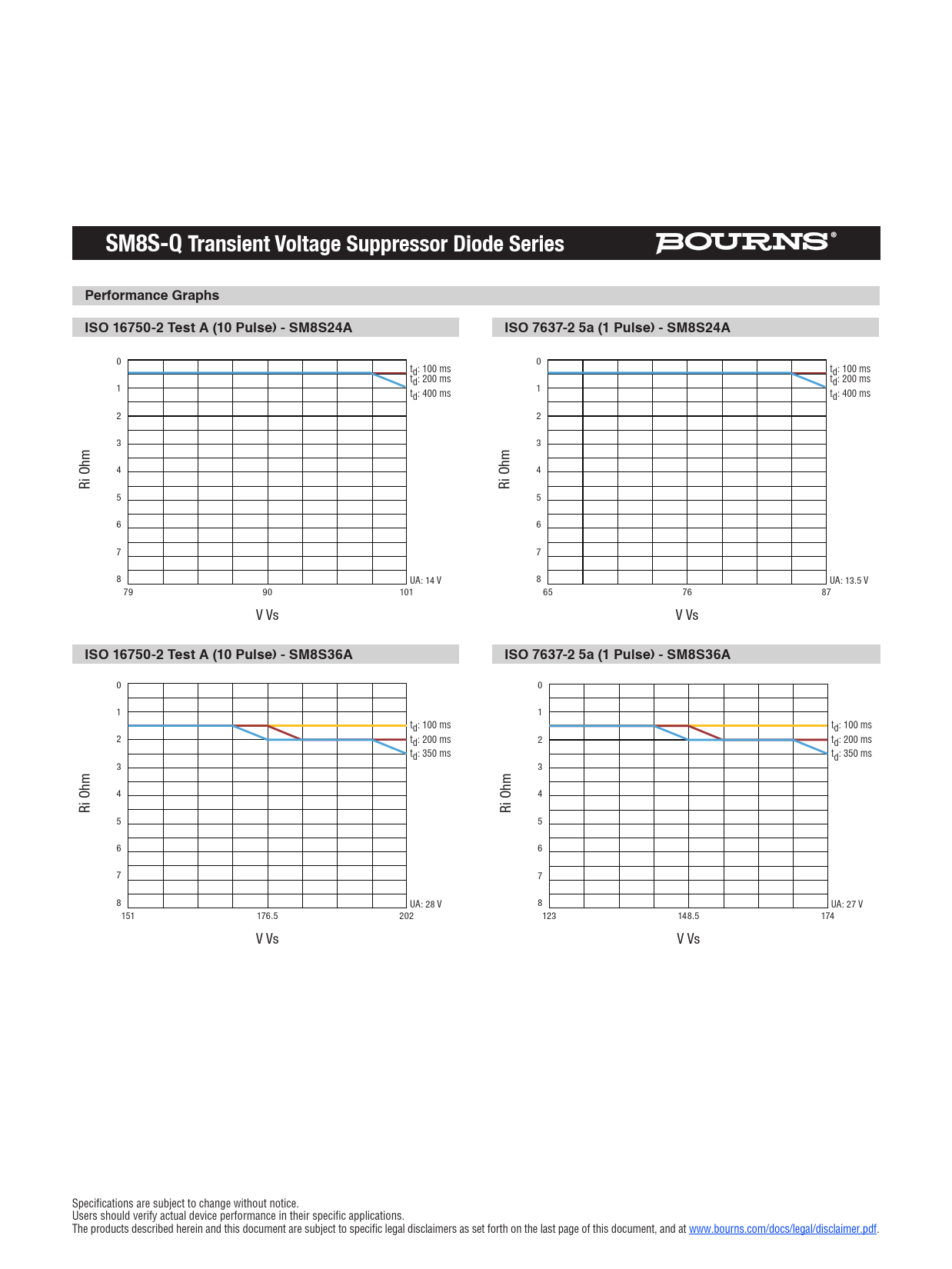

3312 - 2 mm SMD SM8S-Q Transient V Trimming Potentiometer oltage Suppressor Diode Series Performance Graphs ISO 16750-2 Test A (10 Pulse) - SM8S24A ISO 7637-2 5a (1 Pulse) - SM8S24A
0 0 td: 100 ms td: 100 ms td: 200 ms td: 200 ms 1 t 1 d: 400 ms td: 400 ms 2 2 3 3 hm hm 4 4 Ri O Ri O 5 5 6 6 7 7 8 UA: 14 V 8 UA: 13.5 V 79 90 101 65 76 87 V Vs V Vs
ISO 16750-2 Test A (10 Pulse) - SM8S36A ISO 7637-2 5a (1 Pulse) - SM8S36A
0 0 1 1 td: 100 ms td: 100 ms 2 td: 200 ms 2 td: 200 ms td: 350 ms td: 350 ms 3 3 hm hm 4 4 Ri O Ri O 5 5 6 6 7 7 8 UA: 28 V 8 UA: 27 V 151 176.5 202 123 148.5 174 V Vs V Vs Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
