Datasheet R1525x for Automotive Applications (Ricoh) - 7
| Fabricante | Ricoh |
| Descripción | High Noise Immunity Low Supply Current 42V Input 200mA Voltage Regulator |
| Páginas / Página | 27 / 7 — R1525x. R1525x (-AE) Product-specific Electrical Characteristics. VOUT … |
| Formato / tamaño de archivo | PDF / 1.8 Mb |
| Idioma del documento | Inglés |

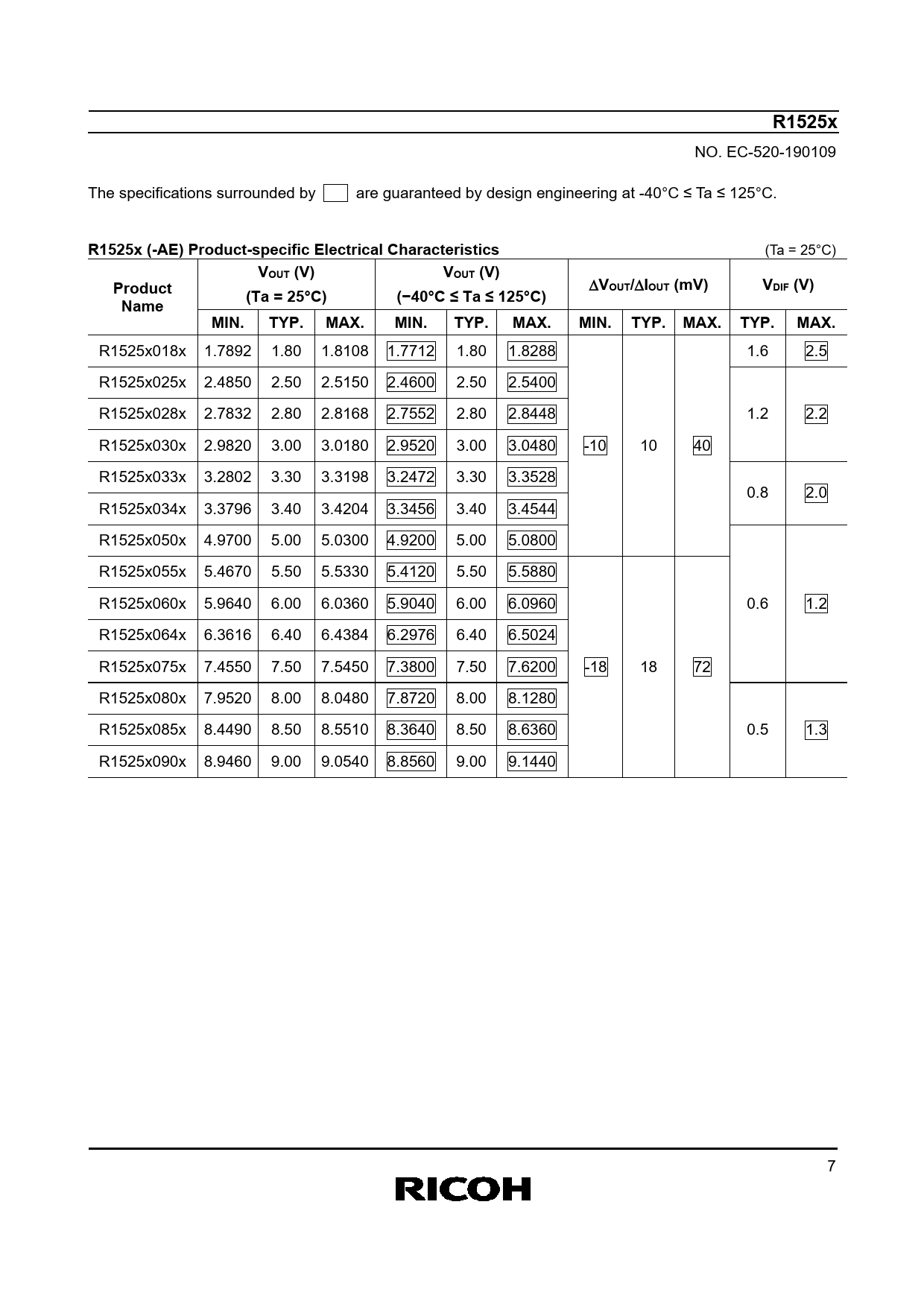

R1525x. R1525x (-AE) Product-specific Electrical Characteristics. VOUT (V). Product. VOUT/. IOUT (mV). VDIF (V). (Ta = 25°C)
Línea de modelo para esta hoja de datos
- R1525H018B-T1-AE R1525H018B-T1-FE R1525H018B-T1-KE R1525H018B-T1-YE R1525H025B-T1-AE R1525H025B-T1-FE R1525H025B-T1-KE R1525H025B-T1-YE R1525H028B-T1-AE R1525H028B-T1-FE R1525H028B-T1-KE R1525H028B-T1-YE R1525H030B-T1-AE R1525H030B-T1-FE R1525H030B-T1-KE R1525H030B-T1-YE R1525H033B-T1-AE R1525H033B-T1-FE R1525H033B-T1-KE R1525H033B-T1-YE R1525H034B-T1-AE R1525H034B-T1-FE R1525H034B-T1-KE R1525H034B-T1-YE R1525H050B-T1-AE R1525H050B-T1-FE R1525H050B-T1-KE R1525H050B-T1-YE R1525H055B-T1-AE R1525H055B-T1-FE R1525H055B-T1-KE R1525H055B-T1-YE R1525H060B-T1-AE R1525H060B-T1-FE R1525H060B-T1-KE R1525H060B-T1-YE R1525H064B-T1-AE R1525H064B-T1-FE R1525H064B-T1-KE R1525H064B-T1-YE R1525H075B-T1-AE R1525H075B-T1-FE R1525H075B-T1-KE R1525H075B-T1-YE R1525H080B-T1-AE R1525H080B-T1-FE R1525H080B-T1-KE R1525H080B-T1-YE R1525H085B-T1-AE R1525H085B-T1-FE R1525H085B-T1-KE R1525H085B-T1-YE R1525H090B-T1-AE R1525H090B-T1-FE R1525H090B-T1-KE R1525H090B-T1-YE R1525N018B-TR-AE R1525N018B-TR-FE R1525N018B-TR-KE R1525N018B-TR-YE R1525N025B-TR-AE R1525N025B-TR-FE R1525N025B-TR-KE R1525N025B-TR-YE R1525N028B-TR-AE R1525N028B-TR-FE R1525N028B-TR-KE R1525N028B-TR-YE R1525N030B-TR-AE R1525N030B-TR-FE R1525N030B-TR-KE R1525N030B-TR-YE R1525N033B-TR-AE R1525N033B-TR-FE R1525N033B-TR-KE R1525N033B-TR-YE R1525N034B-TR-AE R1525N034B-TR-FE R1525N034B-TR-KE R1525N034B-TR-YE R1525N050B-TR-AE R1525N050B-TR-FE R1525N050B-TR-KE R1525N050B-TR-YE R1525N055B-TR-AE R1525N055B-TR-FE R1525N055B-TR-KE R1525N055B-TR-YE R1525N060B-TR-AE R1525N060B-TR-FE R1525N060B-TR-KE R1525N060B-TR-YE R1525N064B-TR-AE R1525N064B-TR-FE R1525N064B-TR-KE R1525N064B-TR-YE R1525N075B-TR-AE R1525N075B-TR-FE R1525N075B-TR-KE R1525N075B-TR-YE R1525N080B-TR-AE R1525N080B-TR-FE R1525N080B-TR-KE R1525N080B-TR-YE R1525N085B-TR-AE R1525N085B-TR-FE R1525N085B-TR-KE R1525N085B-TR-YE R1525N090B-TR-AE R1525N090B-TR-FE R1525N090B-TR-KE R1525N090B-TR-YE R1525S018B-E2-AE R1525S018B-E2-FE R1525S018B-E2-KE R1525S018B-E2-YE R1525S018H-E2-AE R1525S018H-E2-FE R1525S018H-E2-KE R1525S018H-E2-YE R1525S025B-E2-AE R1525S025B-E2-FE R1525S025B-E2-KE R1525S025B-E2-YE R1525S025H-E2-AE R1525S025H-E2-FE R1525S025H-E2-KE R1525S025H-E2-YE R1525S028B-E2-AE R1525S028B-E2-FE R1525S028B-E2-KE R1525S028B-E2-YE R1525S028H-E2-AE R1525S028H-E2-FE R1525S028H-E2-KE R1525S028H-E2-YE R1525S030B-E2-AE R1525S030B-E2-FE R1525S030B-E2-KE R1525S030B-E2-YE R1525S030H-E2-AE R1525S030H-E2-FE R1525S030H-E2-KE R1525S030H-E2-YE R1525S033B-E2-AE R1525S033B-E2-FE R1525S033B-E2-KE R1525S033B-E2-YE R1525S033H-E2-AE R1525S033H-E2-FE R1525S033H-E2-KE R1525S033H-E2-YE R1525S034B-E2-AE R1525S034B-E2-FE R1525S034B-E2-KE R1525S034B-E2-YE R1525S034H-E2-AE R1525S034H-E2-FE R1525S034H-E2-KE R1525S034H-E2-YE R1525S050B-E2-AE R1525S050B-E2-FE R1525S050B-E2-KE R1525S050B-E2-YE R1525S050H-E2-AE R1525S050H-E2-FE R1525S050H-E2-KE R1525S050H-E2-YE R1525S055B-E2-AE R1525S055B-E2-FE R1525S055B-E2-KE R1525S055B-E2-YE R1525S055H-E2-AE R1525S055H-E2-FE R1525S055H-E2-KE R1525S055H-E2-YE R1525S060B-E2-AE R1525S060B-E2-FE R1525S060B-E2-KE R1525S060B-E2-YE R1525S060H-E2-AE R1525S060H-E2-FE R1525S060H-E2-KE R1525S060H-E2-YE R1525S064B-E2-AE R1525S064B-E2-FE R1525S064B-E2-KE R1525S064B-E2-YE R1525S064H-E2-AE R1525S064H-E2-FE R1525S064H-E2-KE R1525S064H-E2-YE R1525S075B-E2-AE R1525S075B-E2-FE R1525S075B-E2-KE R1525S075B-E2-YE R1525S075H-E2-AE R1525S075H-E2-FE R1525S075H-E2-KE R1525S075H-E2-YE R1525S080B-E2-AE R1525S080B-E2-FE R1525S080B-E2-KE R1525S080B-E2-YE R1525S080H-E2-AE R1525S080H-E2-FE R1525S080H-E2-KE R1525S080H-E2-YE R1525S085B-E2-AE R1525S085B-E2-FE R1525S085B-E2-KE R1525S085B-E2-YE R1525S085H-E2-AE R1525S085H-E2-FE R1525S085H-E2-KE R1525S085H-E2-YE R1525S090B-E2-AE R1525S090B-E2-FE R1525S090B-E2-KE R1525S090B-E2-YE R1525S090H-E2-AE R1525S090H-E2-FE R1525S090H-E2-KE R1525S090H-E2-YE
Versión de texto del documento
R1525x
NO. EC-520-190109 The specifications surrounded by are guaranteed by design engineering at -40°C ≤ Ta ≤ 125°C.
R1525x (-AE) Product-specific Electrical Characteristics
(Ta = 25°C)
VOUT (V) VOUT (V) Product
VOUT/
IOUT (mV) VDIF (V) (Ta = 25°C) (−40°C ≤ Ta ≤ 125°C) Name MIN. TYP. MAX. MIN. TYP. MAX. MIN. TYP. MAX. TYP. MAX.
R1525x018x 1.7892 1.80 1.8108 1.7712 1.80 1.8288 1.6 2.5 R1525x025x 2.4850 2.50 2.5150 2.4600 2.50 2.5400 R1525x028x 2.7832 2.80 2.8168 2.7552 2.80 2.8448 1.2 2.2 R1525x030x 2.9820 3.00 3.0180 2.9520 3.00 3.0480 -10 10 40 R1525x033x 3.2802 3.30 3.3198 3.2472 3.30 3.3528 0.8 2.0 R1525x034x 3.3796 3.40 3.4204 3.3456 3.40 3.4544 R1525x050x 4.9700 5.00 5.0300 4.9200 5.00 5.0800 R1525x055x 5.4670 5.50 5.5330 5.4120 5.50 5.5880 R1525x060x 5.9640 6.00 6.0360 5.9040 6.00 6.0960 0.6 1.2 R1525x064x 6.3616 6.40 6.4384 6.2976 6.40 6.5024 R1525x075x 7.4550 7.50 7.5450 7.3800 7.50 7.6200 -18 18 72 R1525x080x 7.9520 8.00 8.0480 7.8720 8.00 8.1280 R1525x085x 8.4490 8.50 8.5510 8.3640 8.50 8.6360 0.5 1.3 R1525x090x 8.9460 9.00 9.0540 8.8560 9.00 9.1440 7
