Datasheet R1525x for Consumer Applications (Ricoh) - 4
| Fabricante | Ricoh |
| Descripción | High Noise Immunity Low Supply Current 42V Input 200mA Voltage Regulator |
| Páginas / Página | 29 / 4 — R1525x. R1525S (HSOP-6J) Pin Description. Pin No. Pin Name. Description. … |
| Formato / tamaño de archivo | PDF / 2.2 Mb |
| Idioma del documento | Inglés |

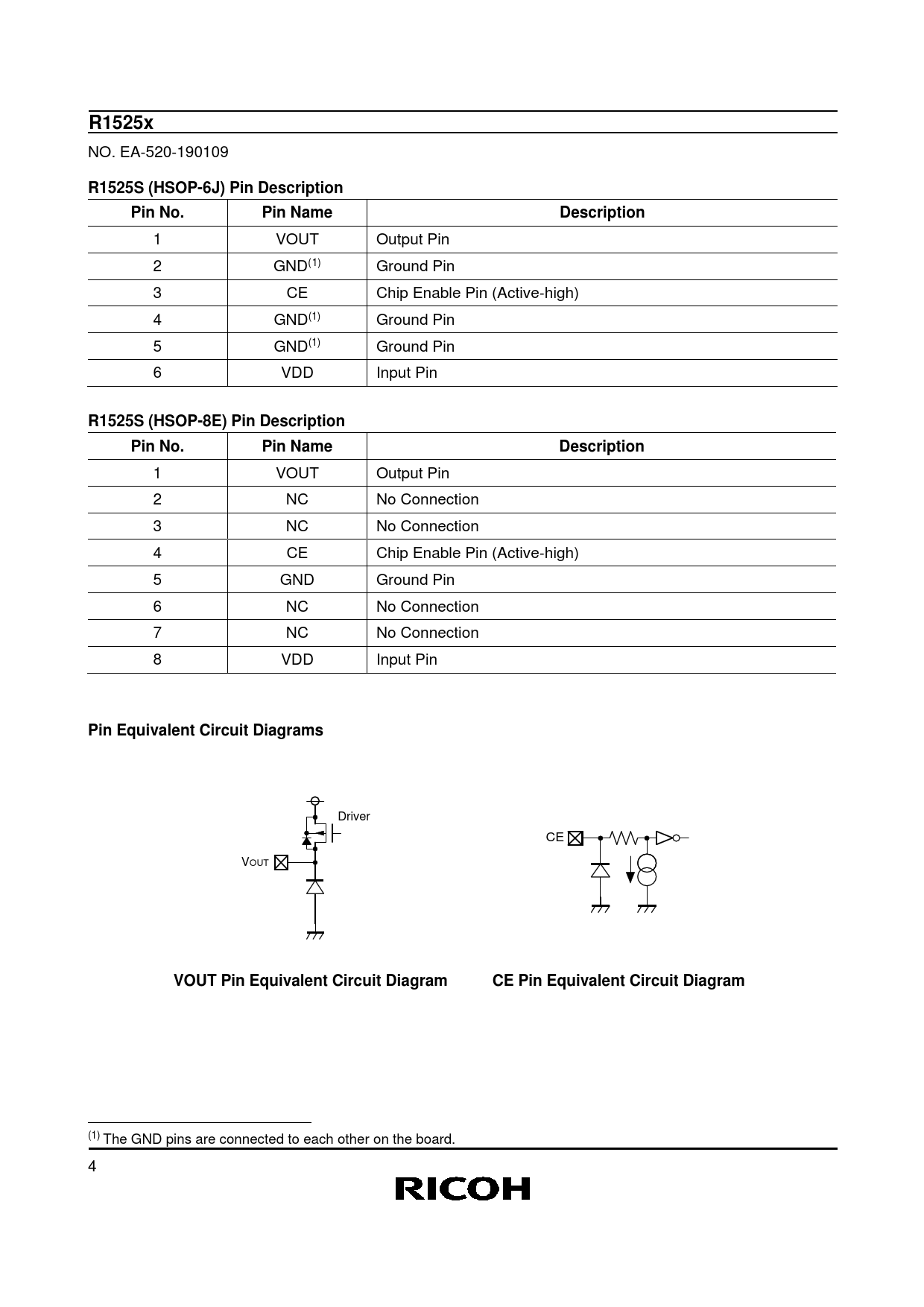

R1525x. R1525S (HSOP-6J) Pin Description. Pin No. Pin Name. Description. R1525S (HSOP-8E) Pin Description
Línea de modelo para esta hoja de datos
- R1525H018B-T1-AE R1525H018B-T1-FE R1525H018B-T1-KE R1525H018B-T1-YE R1525H025B-T1-AE R1525H025B-T1-FE R1525H025B-T1-KE R1525H025B-T1-YE R1525H028B-T1-AE R1525H028B-T1-FE R1525H028B-T1-KE R1525H028B-T1-YE R1525H030B-T1-AE R1525H030B-T1-FE R1525H030B-T1-KE R1525H030B-T1-YE R1525H033B-T1-AE R1525H033B-T1-FE R1525H033B-T1-KE R1525H033B-T1-YE R1525H034B-T1-AE R1525H034B-T1-FE R1525H034B-T1-KE R1525H034B-T1-YE R1525H050B-T1-AE R1525H050B-T1-FE R1525H050B-T1-KE R1525H050B-T1-YE R1525H055B-T1-AE R1525H055B-T1-FE R1525H055B-T1-KE R1525H055B-T1-YE R1525H060B-T1-AE R1525H060B-T1-FE R1525H060B-T1-KE R1525H060B-T1-YE R1525H064B-T1-AE R1525H064B-T1-FE R1525H064B-T1-KE R1525H064B-T1-YE R1525H075B-T1-AE R1525H075B-T1-FE R1525H075B-T1-KE R1525H075B-T1-YE R1525H080B-T1-AE R1525H080B-T1-FE R1525H080B-T1-KE R1525H080B-T1-YE R1525H085B-T1-AE R1525H085B-T1-FE R1525H085B-T1-KE R1525H085B-T1-YE R1525H090B-T1-AE R1525H090B-T1-FE R1525H090B-T1-KE R1525H090B-T1-YE R1525N018B-TR-AE R1525N018B-TR-FE R1525N018B-TR-KE R1525N018B-TR-YE R1525N025B-TR-AE R1525N025B-TR-FE R1525N025B-TR-KE R1525N025B-TR-YE R1525N028B-TR-AE R1525N028B-TR-FE R1525N028B-TR-KE R1525N028B-TR-YE R1525N030B-TR-AE R1525N030B-TR-FE R1525N030B-TR-KE R1525N030B-TR-YE R1525N033B-TR-AE R1525N033B-TR-FE R1525N033B-TR-KE R1525N033B-TR-YE R1525N034B-TR-AE R1525N034B-TR-FE R1525N034B-TR-KE R1525N034B-TR-YE R1525N050B-TR-AE R1525N050B-TR-FE R1525N050B-TR-KE R1525N050B-TR-YE R1525N055B-TR-AE R1525N055B-TR-FE R1525N055B-TR-KE R1525N055B-TR-YE R1525N060B-TR-AE R1525N060B-TR-FE R1525N060B-TR-KE R1525N060B-TR-YE R1525N064B-TR-AE R1525N064B-TR-FE R1525N064B-TR-KE R1525N064B-TR-YE R1525N075B-TR-AE R1525N075B-TR-FE R1525N075B-TR-KE R1525N075B-TR-YE R1525N080B-TR-AE R1525N080B-TR-FE R1525N080B-TR-KE R1525N080B-TR-YE R1525N085B-TR-AE R1525N085B-TR-FE R1525N085B-TR-KE R1525N085B-TR-YE R1525N090B-TR-AE R1525N090B-TR-FE R1525N090B-TR-KE R1525N090B-TR-YE R1525S018B-E2-AE R1525S018B-E2-FE R1525S018B-E2-KE R1525S018B-E2-YE R1525S018H-E2-AE R1525S018H-E2-FE R1525S018H-E2-KE R1525S018H-E2-YE R1525S025B-E2-AE R1525S025B-E2-FE R1525S025B-E2-KE R1525S025B-E2-YE R1525S025H-E2-AE R1525S025H-E2-FE R1525S025H-E2-KE R1525S025H-E2-YE R1525S028B-E2-AE R1525S028B-E2-FE R1525S028B-E2-KE R1525S028B-E2-YE R1525S028H-E2-AE R1525S028H-E2-FE R1525S028H-E2-KE R1525S028H-E2-YE R1525S030B-E2-AE R1525S030B-E2-FE R1525S030B-E2-KE R1525S030B-E2-YE R1525S030H-E2-AE R1525S030H-E2-FE R1525S030H-E2-KE R1525S030H-E2-YE R1525S033B-E2-AE R1525S033B-E2-FE R1525S033B-E2-KE R1525S033B-E2-YE R1525S033H-E2-AE R1525S033H-E2-FE R1525S033H-E2-KE R1525S033H-E2-YE R1525S034B-E2-AE R1525S034B-E2-FE R1525S034B-E2-KE R1525S034B-E2-YE R1525S034H-E2-AE R1525S034H-E2-FE R1525S034H-E2-KE R1525S034H-E2-YE R1525S050B-E2-AE R1525S050B-E2-FE R1525S050B-E2-KE R1525S050B-E2-YE R1525S050H-E2-AE R1525S050H-E2-FE R1525S050H-E2-KE R1525S050H-E2-YE R1525S055B-E2-AE R1525S055B-E2-FE R1525S055B-E2-KE R1525S055B-E2-YE R1525S055H-E2-AE R1525S055H-E2-FE R1525S055H-E2-KE R1525S055H-E2-YE R1525S060B-E2-AE R1525S060B-E2-FE R1525S060B-E2-KE R1525S060B-E2-YE R1525S060H-E2-AE R1525S060H-E2-FE R1525S060H-E2-KE R1525S060H-E2-YE R1525S064B-E2-AE R1525S064B-E2-FE R1525S064B-E2-KE R1525S064B-E2-YE R1525S064H-E2-AE R1525S064H-E2-FE R1525S064H-E2-KE R1525S064H-E2-YE R1525S075B-E2-AE R1525S075B-E2-FE R1525S075B-E2-KE R1525S075B-E2-YE R1525S075H-E2-AE R1525S075H-E2-FE R1525S075H-E2-KE R1525S075H-E2-YE R1525S080B-E2-AE R1525S080B-E2-FE R1525S080B-E2-KE R1525S080B-E2-YE R1525S080H-E2-AE R1525S080H-E2-FE R1525S080H-E2-KE R1525S080H-E2-YE R1525S085B-E2-AE R1525S085B-E2-FE R1525S085B-E2-KE R1525S085B-E2-YE R1525S085H-E2-AE R1525S085H-E2-FE R1525S085H-E2-KE R1525S085H-E2-YE R1525S090B-E2-AE R1525S090B-E2-FE R1525S090B-E2-KE R1525S090B-E2-YE R1525S090H-E2-AE R1525S090H-E2-FE R1525S090H-E2-KE R1525S090H-E2-YE
Versión de texto del documento
R1525x
NO. EA-520-190109
R1525S (HSOP-6J) Pin Description Pin No. Pin Name Description
1 VOUT Output Pin 2 GND(1) Ground Pin 3 CE Chip Enable Pin (Active-high) 4 GND(1) Ground Pin 5 GND(1) Ground Pin 6 VDD Input Pin
R1525S (HSOP-8E) Pin Description Pin No. Pin Name Description
1 VOUT Output Pin 2 NC No Connection 3 NC No Connection 4 CE Chip Enable Pin (Active-high) 5 GND Ground Pin 6 NC No Connection 7 NC No Connection 8 VDD Input Pin
Pin Equivalent Circuit Diagrams
Driver CE VOUT
VOUT Pin Equivalent Circuit Diagram CE Pin Equivalent Circuit Diagram
(1) The GND pins are connected to each other on the board. 4
