Datasheet AD8353 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | 1 MHz TO 2.7 GHz RF Gain Block |
| Páginas / Página | 16 / 6 — AD8353. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. COM1 1. … |
| Revisión | F |
| Formato / tamaño de archivo | PDF / 347 Kb |
| Idioma del documento | Inglés |

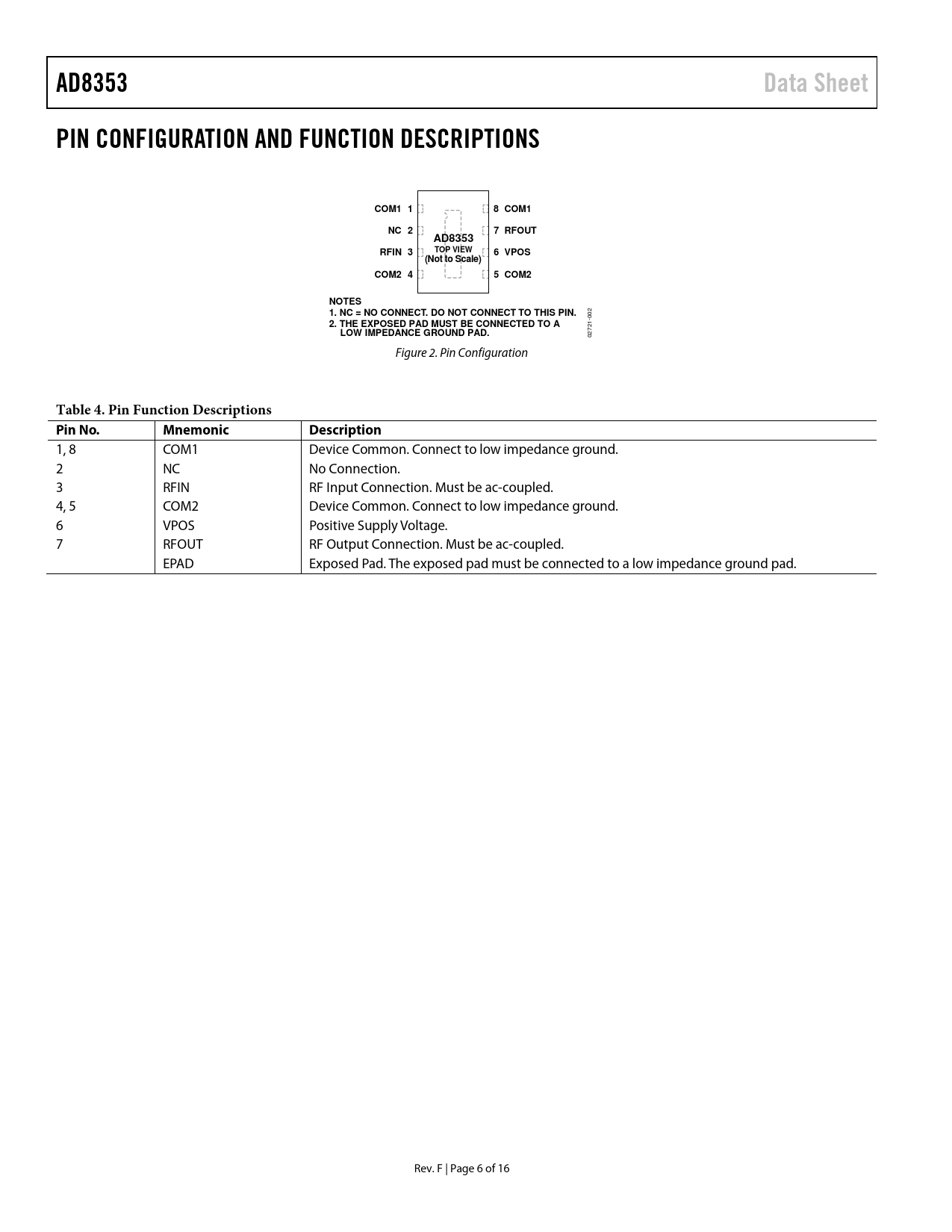

AD8353. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. COM1 1. 8 COM1. NC 2. 7 RFOUT. RFIN 3. TOP VIEW. 6 VPOS. (Not to Scale)
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD8353 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS COM1 1 8 COM1 NC 2 7 RFOUT AD8353 RFIN 3 TOP VIEW 6 VPOS (Not to Scale) COM2 4 5 COM2 NOTES 1. NC = NO CONNECT. DO NOT CONNECT TO THIS PIN.
002
2. THE EXPOSED PAD MUST BE CONNECTED TO A LOW IMPEDANCE GROUND PAD.
02721- Figure 2. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1, 8 COM1 Device Common. Connect to low impedance ground. 2 NC No Connection. 3 RFIN RF Input Connection. Must be ac-coupled. 4, 5 COM2 Device Common. Connect to low impedance ground. 6 VPOS Positive Supply Voltage. 7 RFOUT RF Output Connection. Must be ac-coupled. EPAD Exposed Pad. The exposed pad must be connected to a low impedance ground pad. Rev. F | Page 6 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION BASIC CONNECTIONS APPLICATIONS INFORMATION LOW FREQUENCY APPLICATIONS BELOW 100 MHz EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
