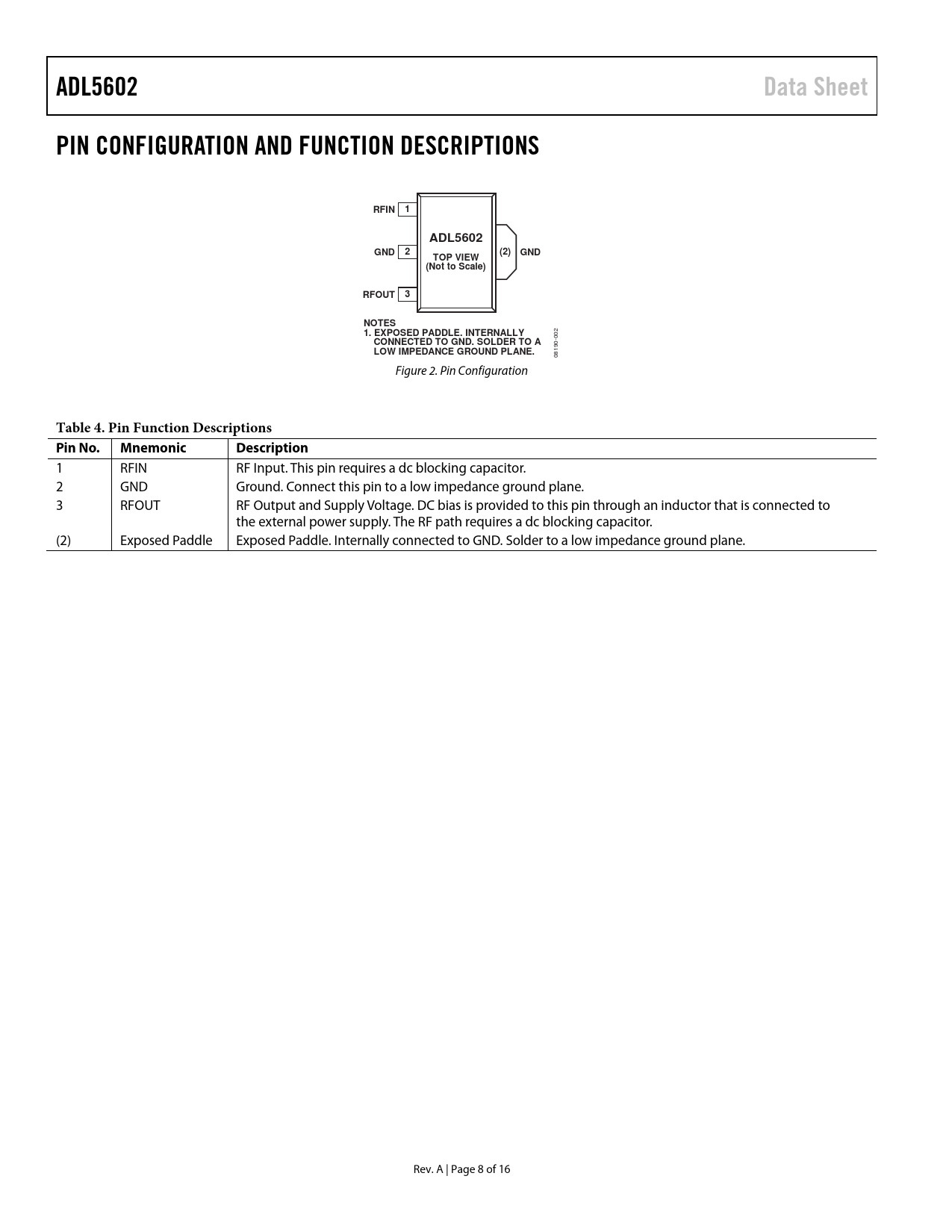

ADL5602. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. RFIN. GND. (2). TOP VIEW. (Not to Scale). RFOUT
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADL5602 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS RFIN 1 ADL5602 GND 2 (2) GND TOP VIEW (Not to Scale) RFOUT 3 NOTES 1. EXPOSED PADDLE. INTERNALLY
002
CONNECTED TO GND. SOLDER TO A LOW IMPEDANCE GROUND PLANE.
08190- Figure 2. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 RFIN RF Input. This pin requires a dc blocking capacitor. 2 GND Ground. Connect this pin to a low impedance ground plane. 3 RFOUT RF Output and Supply Voltage. DC bias is provided to this pin through an inductor that is connected to the external power supply. The RF path requires a dc blocking capacitor. (2) Exposed Paddle Exposed Paddle. Internally connected to GND. Solder to a low impedance ground plane. Rev. A | Page 8 of 16 Document Outline Features Functional Block Diagram General Description Revision History Specifications Typical Scattering Parameters (S Parameters) Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Basic Connections Soldering Information and Recommended PCB Land Pattern W-CDMA ACPR Performance Evaluation Board Outline Dimensions Ordering Guide
