Datasheet ADL5535 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | 20 MHz TO 1.0 GHz IF Gain Block |
| Páginas / Página | 16 / 6 — ADL5535. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 384 Kb |
| Idioma del documento | Inglés |

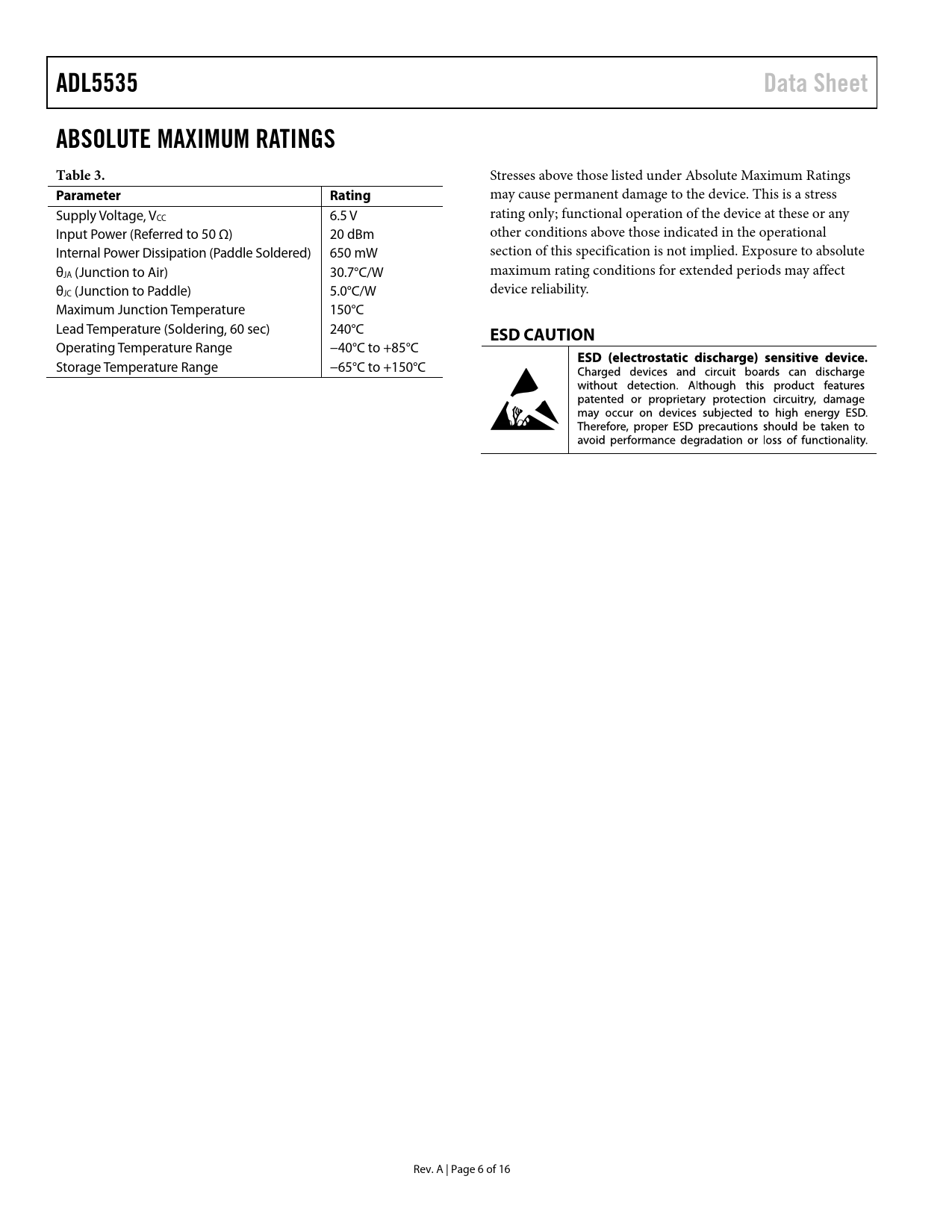

ADL5535. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADL5535 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage, VCC 6.5 V rating only; functional operation of the device at these or any Input Power (Referred to 50 Ω) 20 dBm other conditions above those indicated in the operational Internal Power Dissipation (Paddle Soldered) 650 mW section of this specification is not implied. Exposure to absolute θJA (Junction to Air) 30.7°C/W maximum rating conditions for extended periods may affect θJC (Junction to Paddle) 5.0°C/W device reliability. Maximum Junction Temperature 150°C Lead Temperature (Soldering, 60 sec) 240°C
ESD CAUTION
Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Rev. A | Page 6 of 16 Document Outline Features Functional Block Diagram General Description Table of Contents Revision History Specifications Typical Scattering Parameters (S-Parameters) Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Basic Connections Soldering Information and Recommended PCB Land Pattern ACPR Performance Error Vector Magnitude (EVM) Performance ADC Driving Application Evaluation Board Outline Dimensions Ordering Guide
