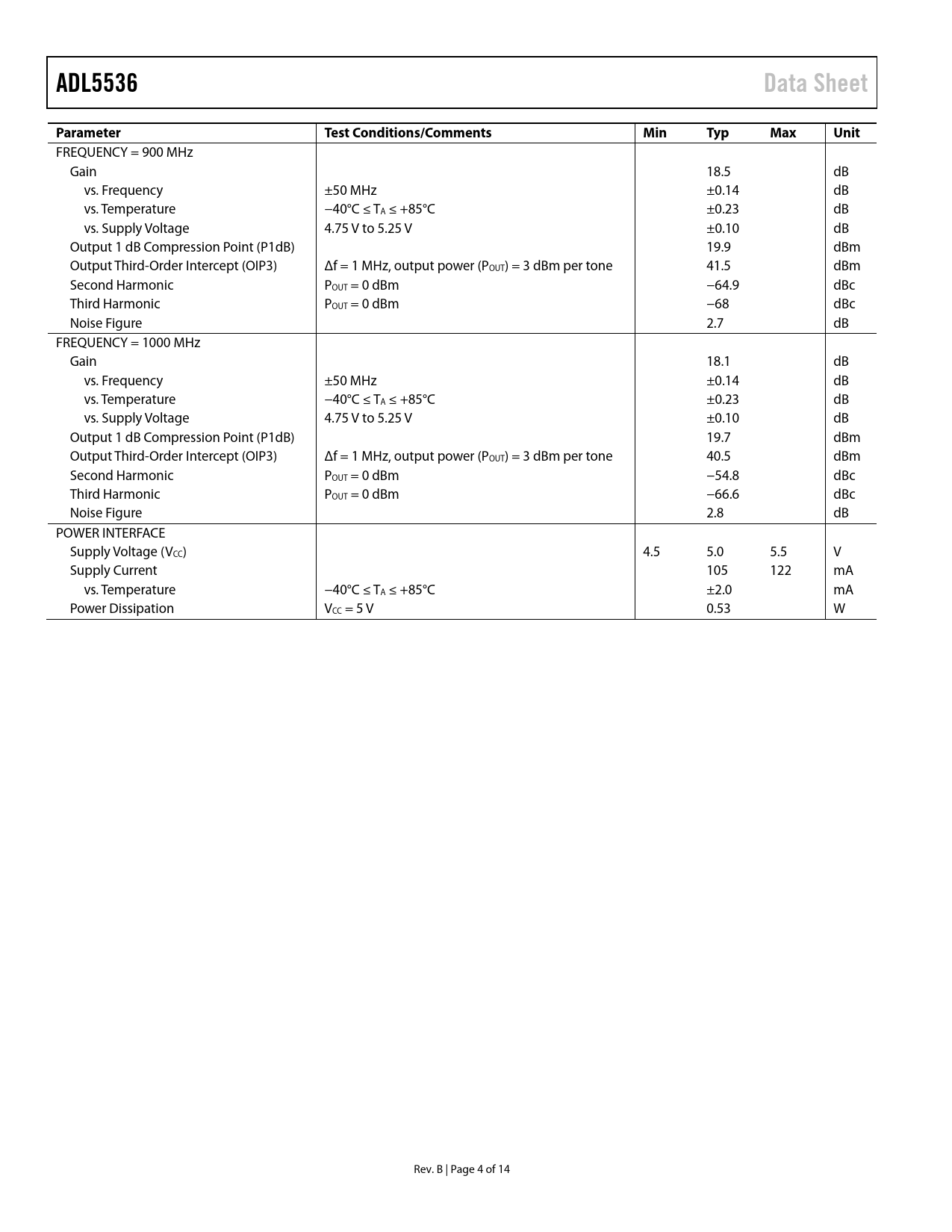

ADL5536 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit
FREQUENCY = 900 MHz Gain 18.5 dB vs. Frequency ±50 MHz ±0.14 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.23 dB vs. Supply Voltage 4.75 V to 5.25 V ±0.10 dB Output 1 dB Compression Point (P1dB) 19.9 dBm Output Third-Order Intercept (OIP3) Δf = 1 MHz, output power (POUT) = 3 dBm per tone 41.5 dBm Second Harmonic POUT = 0 dBm −64.9 dBc Third Harmonic POUT = 0 dBm −68 dBc Noise Figure 2.7 dB FREQUENCY = 1000 MHz Gain 18.1 dB vs. Frequency ±50 MHz ±0.14 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.23 dB vs. Supply Voltage 4.75 V to 5.25 V ±0.10 dB Output 1 dB Compression Point (P1dB) 19.7 dBm Output Third-Order Intercept (OIP3) Δf = 1 MHz, output power (POUT) = 3 dBm per tone 40.5 dBm Second Harmonic POUT = 0 dBm −54.8 dBc Third Harmonic POUT = 0 dBm −66.6 dBc Noise Figure 2.8 dB POWER INTERFACE Supply Voltage (VCC) 4.5 5.0 5.5 V Supply Current 105 122 mA vs. Temperature −40°C ≤ TA ≤ +85°C ±2.0 mA Power Dissipation VCC = 5 V 0.53 W Rev. B | Page 4 of 14 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS (S-PARAMETERS) ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS BASIC CONNECTIONS SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN ACPR PERFORMANCE ERROR VECTOR MAGNITUDE (EVM) PERFORMANCE EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
