Datasheet BC847, BC547 (NXP) - 9
| Fabricante | NXP |
| Descripción | 45 V, 100 mA NPN general-purpose transistors |
| Páginas / Página | 15 / 9 — NXP Semiconductors. BC847/BC547 series. 45 V, 100 mA NPN general-purpose … |
| Formato / tamaño de archivo | PDF / 100 Kb |
| Idioma del documento | Inglés |

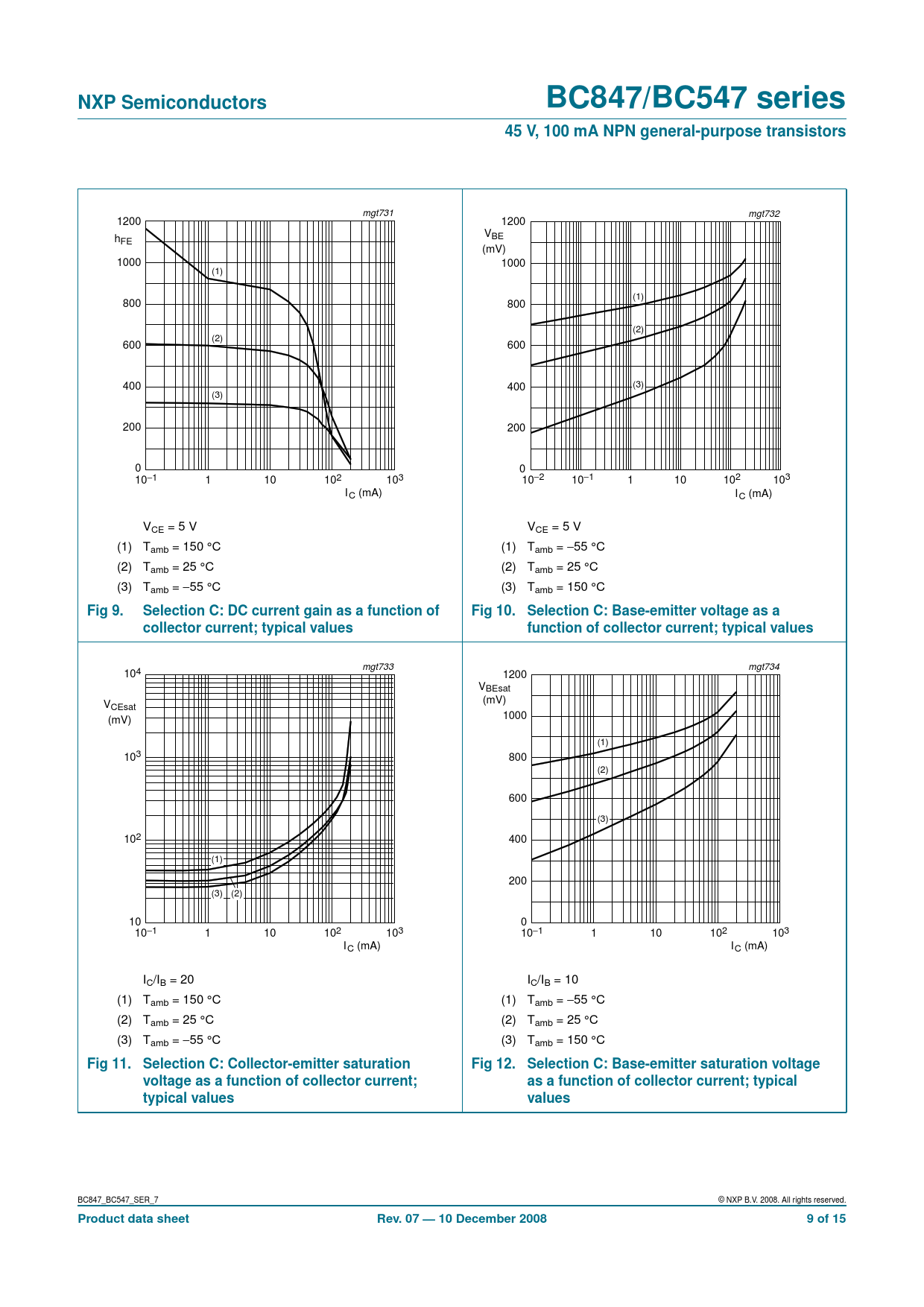

NXP Semiconductors. BC847/BC547 series. 45 V, 100 mA NPN general-purpose transistors. Fig 9
Línea de modelo para esta hoja de datos
Versión de texto del documento
NXP Semiconductors BC847/BC547 series 45 V, 100 mA NPN general-purpose transistors
mgt731 mgt732 1200 1200 V h BE FE (mV) 1000 1000 (1) (1) 800 800 (2) (2) 600 600 400 400 (3) (3) 200 200 0 0 10−1 1 10 102 103 10−2 10−1 1 10 102 103 IC (mA) IC (mA) VCE = 5 V VCE = 5 V (1) Tamb = 150 °C (1) Tamb = −55 °C (2) Tamb = 25 °C (2) Tamb = 25 °C (3) Tamb = −55 °C (3) Tamb = 150 °C
Fig 9. Selection C: DC current gain as a function of Fig 10. Selection C: Base-emitter voltage as a collector current; typical values function of collector current; typical values
mgt733 mgt734 104 1200 VBEsat V (mV) CEsat (mV) 1000 (1) 103 800 (2) 600 (3) 102 400 (1) 200 (3) (2) 10 0 10−1 1 10 102 103 10−1 1 10 102 103 IC (mA) IC (mA) IC/IB = 20 IC/IB = 10 (1) Tamb = 150 °C (1) Tamb = −55 °C (2) Tamb = 25 °C (2) Tamb = 25 °C (3) Tamb = −55 °C (3) Tamb = 150 °C
Fig 11. Selection C: Collector-emitter saturation Fig 12. Selection C: Base-emitter saturation voltage voltage as a function of collector current; as a function of collector current; typical typical values values
BC847_BC547_SER_7 © NXP B.V. 2008. All rights reserved.
Product data sheet Rev. 07 — 10 December 2008 9 of 15
