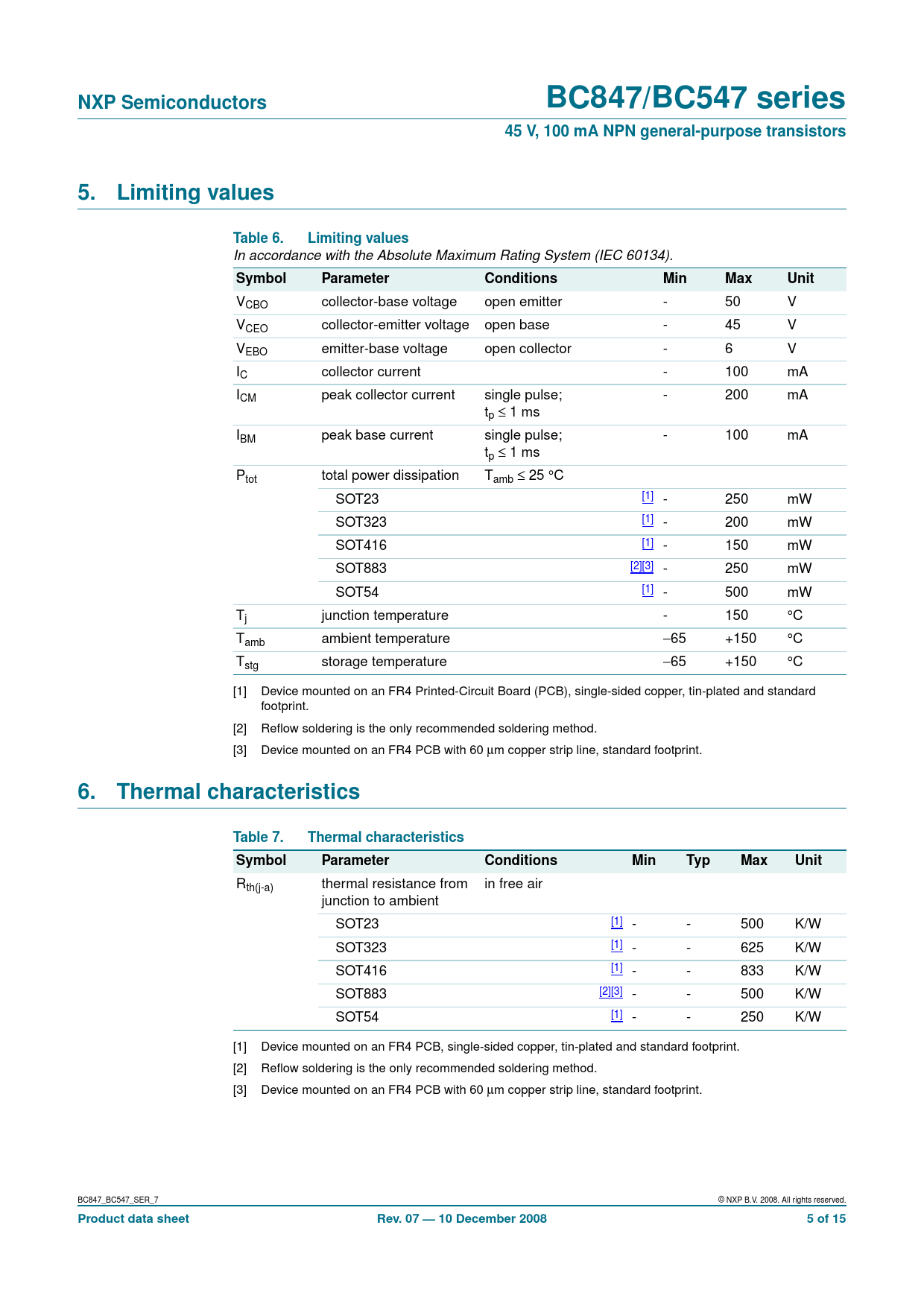

NXP Semiconductors BC847/BC547 series 45 V, 100 mA NPN general-purpose transistors 5. Limiting values Table 6. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VCBO collector-base voltage open emitter - 50 V VCEO collector-emitter voltage open base - 45 V VEBO emitter-base voltage open collector - 6 V IC collector current - 100 mA ICM peak collector current single pulse; - 200 mA t ≤ p 1 ms IBM peak base current single pulse; - 100 mA t ≤ p 1 ms P ≤ tot total power dissipation Tamb 25 °C SOT23 [1] - 250 mW SOT323 [1] - 200 mW SOT416 [1] - 150 mW SOT883 [2][3] - 250 mW SOT54 [1] - 500 mW Tj junction temperature - 150 °C Tamb ambient temperature −65 +150 °C Tstg storage temperature −65 +150 °C [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. [2] Reflow soldering is the only recommended soldering method. [3] Device mounted on an FR4 PCB with 60 µm copper strip line, standard footprint.
6. Thermal characteristics Table 7. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-a) thermal resistance from in free air junction to ambient SOT23 [1] - - 500 K/W SOT323 [1] - - 625 K/W SOT416 [1] - - 833 K/W SOT883 [2][3] - - 500 K/W SOT54 [1] - - 250 K/W [1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint. [2] Reflow soldering is the only recommended soldering method. [3] Device mounted on an FR4 PCB with 60 µm copper strip line, standard footprint. BC847_BC547_SER_7 © NXP B.V. 2008. All rights reserved.
Product data sheet Rev. 07 — 10 December 2008 5 of 15
