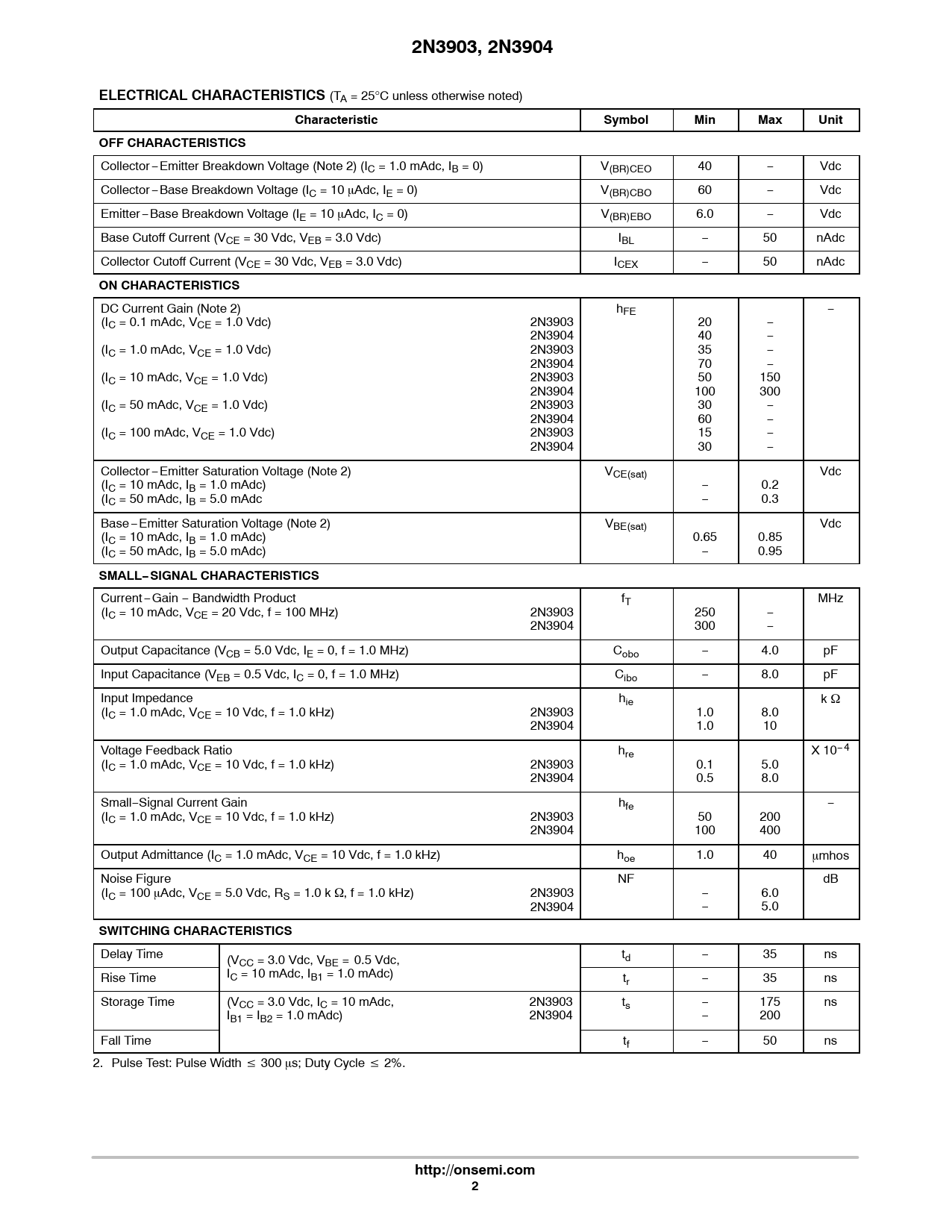

2N3903, 2N3904 ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted)
Characteristic Symbol Min Max Unit OFF CHARACTERISTICS
Collector−Emitter Breakdown Voltage (Note 2) (IC = 1.0 mAdc, IB = 0) V(BR)CEO 40 − Vdc Collector−Base Breakdown Voltage (IC = 10 mAdc, IE = 0) V(BR)CBO 60 − Vdc Emitter−Base Breakdown Voltage (IE = 10 mAdc, IC = 0) V(BR)EBO 6.0 − Vdc Base Cutoff Current (VCE = 30 Vdc, VEB = 3.0 Vdc) IBL − 50 nAdc Collector Cutoff Current (VCE = 30 Vdc, VEB = 3.0 Vdc) ICEX − 50 nAdc
ON CHARACTERISTICS
DC Current Gain (Note 2) hFE − (IC = 0.1 mAdc, VCE = 1.0 Vdc) 2N3903 20 − 2N3904 40 − (IC = 1.0 mAdc, VCE = 1.0 Vdc) 2N3903 35 − 2N3904 70 − (IC = 10 mAdc, VCE = 1.0 Vdc) 2N3903 50 150 2N3904 100 300 (IC = 50 mAdc, VCE = 1.0 Vdc) 2N3903 30 − 2N3904 60 − (IC = 100 mAdc, VCE = 1.0 Vdc) 2N3903 15 − 2N3904 30 − Collector−Emitter Saturation Voltage (Note 2) VCE(sat) Vdc (IC = 10 mAdc, IB = 1.0 mAdc) − 0.2 (IC = 50 mAdc, IB = 5.0 mAdc − 0.3 Base −Emitter Saturation Voltage (Note 2) VBE(sat) Vdc (IC = 10 mAdc, IB = 1.0 mAdc) 0.65 0.85 (IC = 50 mAdc, IB = 5.0 mAdc) − 0.95
SMALL−SIGNAL CHARACTERISTICS
Current−Gain − Bandwidth Product fT MHz (IC = 10 mAdc, VCE = 20 Vdc, f = 100 MHz) 2N3903 250 − 2N3904 300 − Output Capacitance (VCB = 5.0 Vdc, IE = 0, f = 1.0 MHz) Cobo − 4.0 pF Input Capacitance (VEB = 0.5 Vdc, IC = 0, f = 1.0 MHz) Cibo − 8.0 pF Input Impedance hie k W (IC = 1.0 mAdc, VCE = 10 Vdc, f = 1.0 kHz) 2N3903 1.0 8.0 2N3904 1.0 10 Voltage Feedback Ratio hre X 10−4 (IC = 1.0 mAdc, VCE = 10 Vdc, f = 1.0 kHz) 2N3903 0.1 5.0 2N3904 0.5 8.0 Small−Signal Current Gain hfe − (IC = 1.0 mAdc, VCE = 10 Vdc, f = 1.0 kHz) 2N3903 50 200 2N3904 100 400 Output Admittance (IC = 1.0 mAdc, VCE = 10 Vdc, f = 1.0 kHz) hoe 1.0 40 mmhos Noise Figure NF dB (IC = 100 mAdc, VCE = 5.0 Vdc, RS = 1.0 k W, f = 1.0 kHz) 2N3903 − 6.0 2N3904 − 5.0
SWITCHING CHARACTERISTICS
Delay Time (V t CC = 3.0 Vdc, VBE = 0.5 Vdc, d − 35 ns I Rise Time C = 10 mAdc, IB1 = 1.0 mAdc) tr − 35 ns Storage Time (VCC = 3.0 Vdc, IC = 10 mAdc, 2N3903 ts − 175 ns IB1 = IB2 = 1.0 mAdc) 2N3904 − 200 Fall Time tf − 50 ns 2. Pulse Test: Pulse Width v 300 ms; Duty Cycle v 2%.
http://onsemi.com 2
2N3903, 2N3904 ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted)
Characteristic Symbol Min Max Unit OFF CHARACTERISTICS
Collector−Emitter Breakdown Voltage (Note 2) (IC = 1.0 mAdc, IB = 0) V(BR)CEO 40 − Vdc Collector−Base Breakdown Voltage (IC = 10 mAdc, IE = 0) V(BR)CBO 60 − Vdc Emitter−Base Breakdown Voltage (IE = 10 mAdc, IC = 0) V(BR)EBO 6.0 − Vdc Base Cutoff Current (VCE = 30 Vdc, VEB = 3.0 Vdc) IBL − 50 nAdc Collector Cutoff Current (VCE = 30 Vdc, VEB = 3.0 Vdc) ICEX − 50 nAdc
ON CHARACTERISTICS
DC Current Gain (Note 2) hFE − (IC = 0.1 mAdc, VCE = 1.0 Vdc) 2N3903 20 − 2N3904 40 − (IC = 1.0 mAdc, VCE = 1.0 Vdc) 2N3903 35 − 2N3904 70 − (IC = 10 mAdc, VCE = 1.0 Vdc) 2N3903 50 150 2N3904 100 300 (IC = 50 mAdc, VCE = 1.0 Vdc) 2N3903 30 − 2N3904 60 − (IC = 100 mAdc, VCE = 1.0 Vdc) 2N3903 15 − 2N3904 30 − Collector−Emitter Saturation Voltage (Note 2) VCE(sat) Vdc (IC = 10 mAdc, IB = 1.0 mAdc) − 0.2 (IC = 50 mAdc, IB = 5.0 mAdc − 0.3 Base −Emitter Saturation Voltage (Note 2) VBE(sat) Vdc (IC = 10 mAdc, IB = 1.0 mAdc) 0.65 0.85 (IC = 50 mAdc, IB = 5.0 mAdc) − 0.95
SMALL−SIGNAL CHARACTERISTICS
Current−Gain − Bandwidth Product fT MHz (IC = 10 mAdc, VCE = 20 Vdc, f = 100 MHz) 2N3903 250 − 2N3904 300 − Output Capacitance (VCB = 5.0 Vdc, IE = 0, f = 1.0 MHz) Cobo − 4.0 pF Input Capacitance (VEB = 0.5 Vdc, IC = 0, f = 1.0 MHz) Cibo − 8.0 pF Input Impedance hie k W (IC = 1.0 mAdc, VCE = 10 Vdc, f = 1.0 kHz) 2N3903 1.0 8.0 2N3904 1.0 10 Voltage Feedback Ratio hre X 10−4 (IC = 1.0 mAdc, VCE = 10 Vdc, f = 1.0 kHz) 2N3903 0.1 5.0 2N3904 0.5 8.0 Small−Signal Current Gain hfe − (IC = 1.0 mAdc, VCE = 10 Vdc, f = 1.0 kHz) 2N3903 50 200 2N3904 100 400 Output Admittance (IC = 1.0 mAdc, VCE = 10 Vdc, f = 1.0 kHz) hoe 1.0 40 mmhos Noise Figure NF dB (IC = 100 mAdc, VCE = 5.0 Vdc, RS = 1.0 k W, f = 1.0 kHz) 2N3903 − 6.0 2N3904 − 5.0
SWITCHING CHARACTERISTICS
Delay Time (V t CC = 3.0 Vdc, VBE = 0.5 Vdc, d − 35 ns I Rise Time C = 10 mAdc, IB1 = 1.0 mAdc) tr − 35 ns Storage Time (VCC = 3.0 Vdc, IC = 10 mAdc, 2N3903 ts − 175 ns IB1 = IB2 = 1.0 mAdc) 2N3904 − 200 Fall Time tf − 50 ns 2. Pulse Test: Pulse Width v 300 ms; Duty Cycle v 2%.
http://onsemi.com 2
