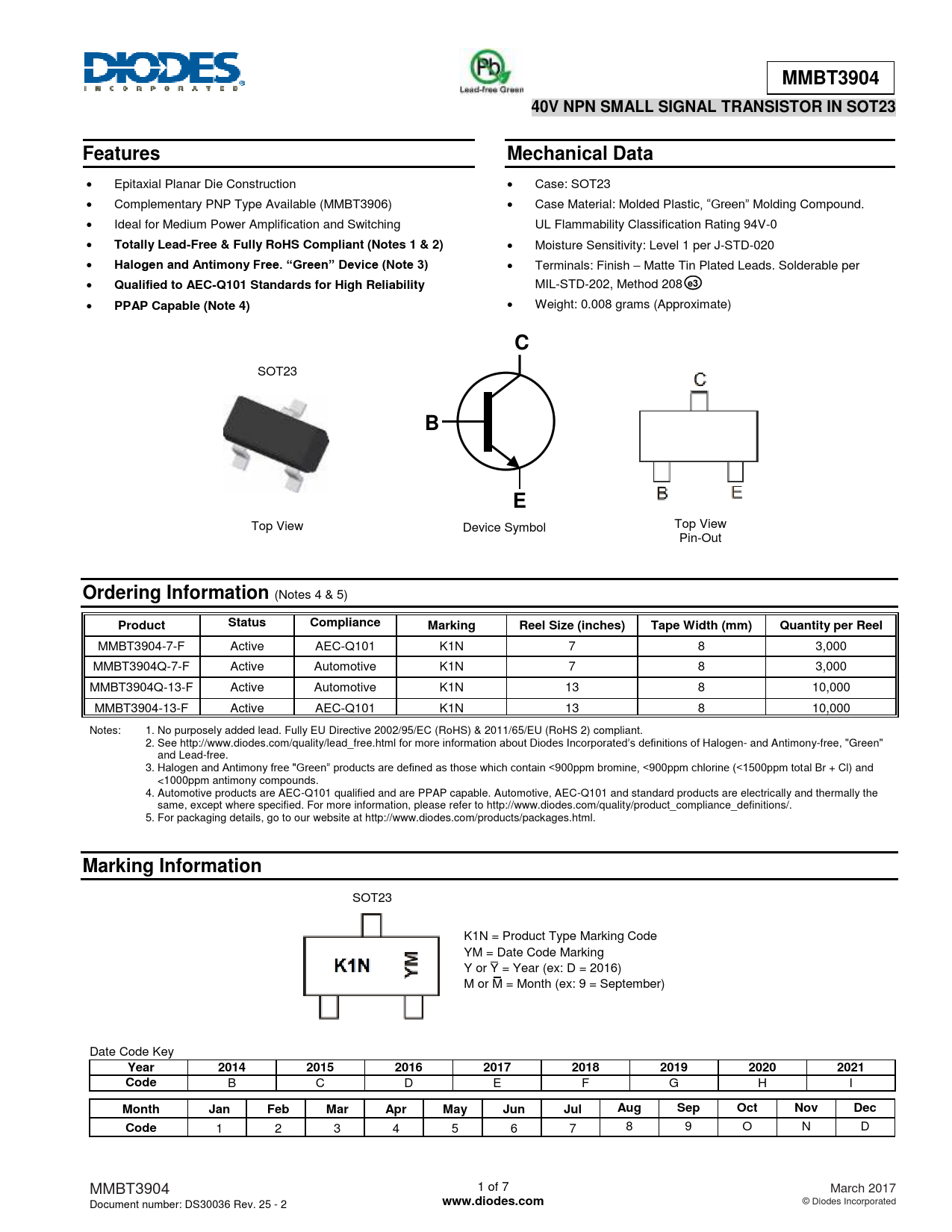

MMBT3904. 40V NPN SMALL SIGNAL TRANSISTOR IN SOT23. Features. Mechanical Data
Línea de modelo para esta hoja de datos
Versión de texto del documento
MMBT3904 40V NPN SMALL SIGNAL TRANSISTOR IN SOT23 Features Mechanical Data
Epitaxial Planar Die Construction Case: SOT23 Complementary PNP Type Available (MMBT3906) Case Material: Molded Plastic, “Green” Molding Compound. Ideal for Medium Power Amplification and Switching UL Flammability Classification Rating 94V-0
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Moisture Sensitivity: Level 1 per J-STD-020
Halogen and Antimony Free. “Green” Device (Note 3)
Terminals: Finish – Matte Tin Plated Leads. Solderable per
Qualified to AEC-Q101 Standards for High Reliability
MIL-STD-202, Method 208
e3 PPAP Capable (Note 4)
Weight: 0.008 grams (Approximate)
C
SOT23
B E
Top View Device Symbol Top View Pin-Out
Ordering Information
(Notes 4 & 5)
Product Status Compliance Marking Reel Size (inches) Tape Width (mm) Quantity per Reel
MMBT3904-7-F Active AEC-Q101 K1N 7 8 3,000 MMBT3904Q-7-F Active Automotive K1N 7 8 3,000 MMBT3904Q-13-F Active Automotive K1N 13 8 10,000 MMBT3904-13-F Active AEC-Q101 K1N 13 8 10,000 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/. 5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SOT23 K1N = Product Type Marking Code YM = Date Code Marking Y or Y = Year (ex: D = 2016) M or M = Month (ex: 9 = September) Date Code Key
Year 2014 2015 2016 2017 2018 2019 2020 2021 Code
B C D E F G H I
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D MMBT3904 1 of 7 March 2017 Document number: DS30036 Rev. 25 - 2
www.diodes.com
© Diodes Incorporated
