Datasheet 7UL1G86FU (Toshiba)
| Fabricante | Toshiba |
| Descripción | Single Exclusive-OR Gate. L-MOS LVP series |
| Páginas / Página | 8 / 1 — 7UL1G86FU. CMOS. Digital. Integrated. Circuits. Silicon. Monolithic. … |
| Formato / tamaño de archivo | PDF / 154 Kb |
| Idioma del documento | Inglés |
7UL1G86FU. CMOS. Digital. Integrated. Circuits. Silicon. Monolithic. 7UL1G86FU. 1. Functional. Description. •. 2-Input. Exclusive-OR. Gate. 2. Features
Línea de modelo para esta hoja de datos
7UL1G
Versión de texto del documento

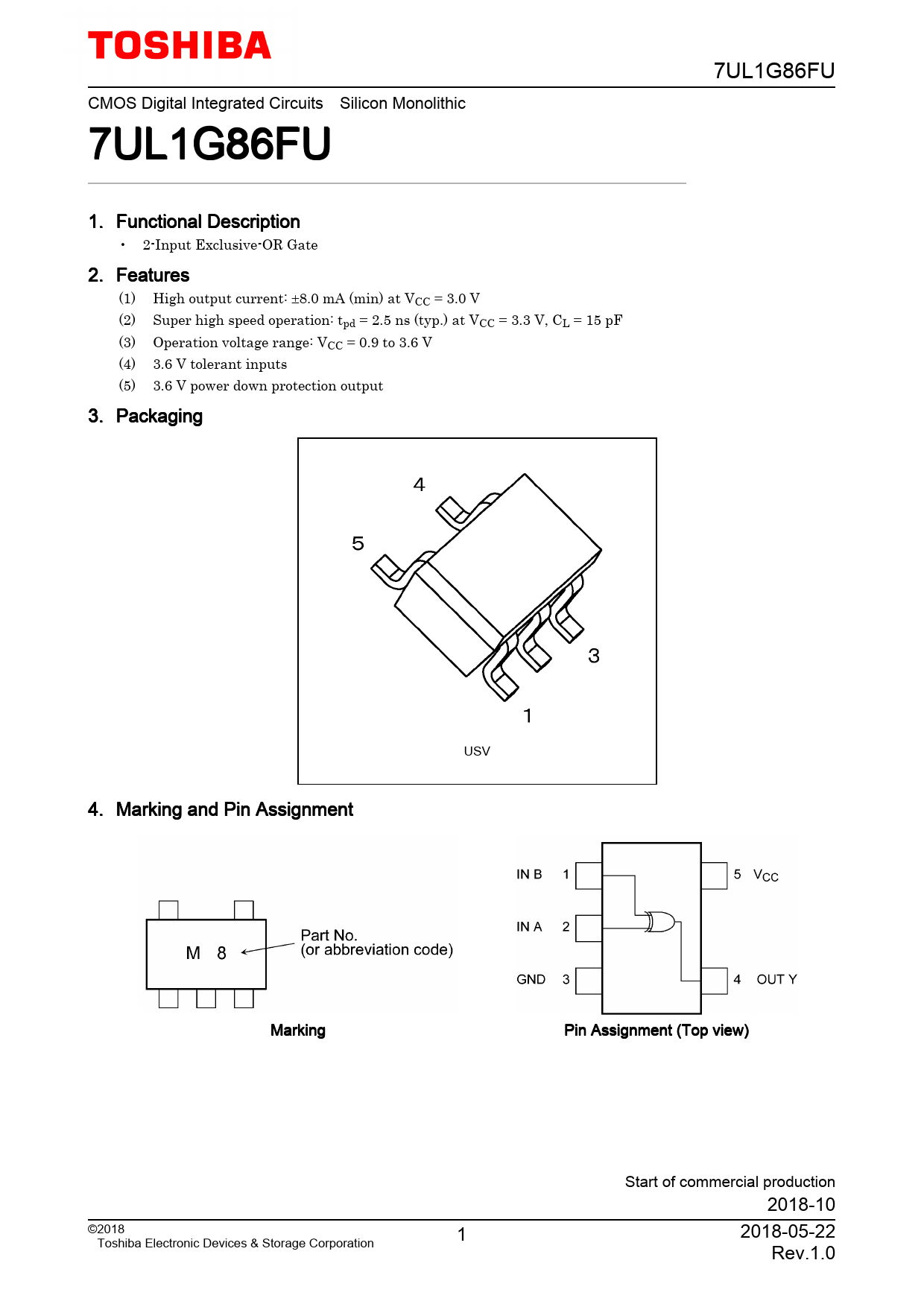

7UL1G86FU CMOS Digital Integrated Circuits Silicon Monolithic 7UL1G86FU 1. Functional Description • 2-Input Exclusive-OR Gate 2. Features (1) High output current: ±8.0 mA (min) at VCC = 3.0 V (2) Super high speed operation: tpd = 2.5 ns (typ.) at VCC = 3.3 V, CL = 15 pF (3) Operation voltage range: VCC = 0.9 to 3.6 V (4) 3.6 V tolerant inputs (5) 3.6 V power down protection output 3. Packaging USV 4. Marking and Pin Assignment Marking Pin Assignment (Top view) Start of commercial production 2018-10 ©2018 1 2018-05-22 Toshiba Electronic Devices & Storage Corporation Rev.1.0
