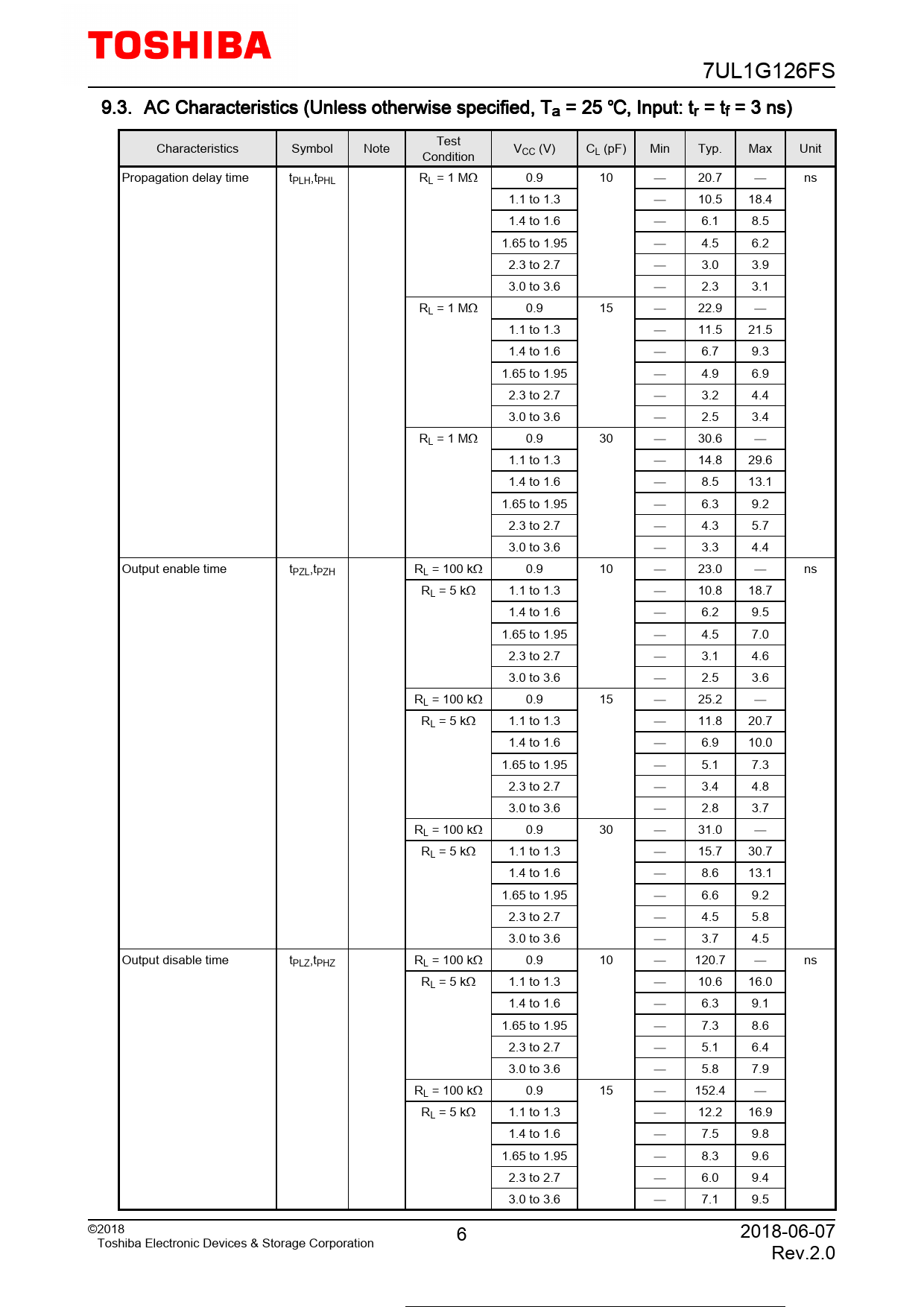

Datasheet 7UL1G126FS (Toshiba) - 6

7UL1G126FS 9.3. AC Characteristics (Unless otherwise specified, Ta = 25 , Input: tr = tf = 3 ns) Test Characteristics Symbol Note VCC (V) CL (pF) Min Typ. Max Unit Condition Propagation delay time tPLH,tPHL RL = 1 MΩ 0.9 10  20.7  ns 1.1 to 1.3  10.5 18.4 1.4 to 1.6  6.1 8.5 1.65 to 1.95  4.5 6.2 2.3 to 2.7  3.0 3.9 3.0 to 3.6  2.3 3.1 RL = 1 MΩ 0.9 15  22.9  1.1 to 1.3  11.5 21.5 1.4 to 1.6  6.7 9.3 1.65 to 1.95  4.9 6.9 2.3 to 2.7  3.2 4.4 3.0 to 3.6  2.5 3.4 RL = 1 MΩ 0.9 30  30.6  1.1 to 1.3  14.8 29.6 1.4 to 1.6  8.5 13.1 1.65 to 1.95  6.3 9.2 2.3 to 2.7  4.3 5.7 3.0 to 3.6  3.3 4.4 Output enable time tPZL,tPZH RL = 100 kΩ 0.9 10  23.0  ns RL = 5 kΩ 1.1 to 1.3  10.8 18.7 1.4 to 1.6  6.2 9.5 1.65 to 1.95  4.5 7.0 2.3 to 2.7  3.1 4.6 3.0 to 3.6  2.5 3.6 RL = 100 kΩ 0.9 15  25.2  RL = 5 kΩ 1.1 to 1.3  11.8 20.7 1.4 to 1.6  6.9 10.0 1.65 to 1.95  5.1 7.3 2.3 to 2.7  3.4 4.8 3.0 to 3.6  2.8 3.7 RL = 100 kΩ 0.9 30  31.0  RL = 5 kΩ 1.1 to 1.3  15.7 30.7 1.4 to 1.6  8.6 13.1 1.65 to 1.95  6.6 9.2 2.3 to 2.7  4.5 5.8 3.0 to 3.6  3.7 4.5 Output disable time tPLZ,tPHZ RL = 100 kΩ 0.9 10  120.7  ns RL = 5 kΩ 1.1 to 1.3  10.6 16.0 1.4 to 1.6  6.3 9.1 1.65 to 1.95  7.3 8.6 2.3 to 2.7  5.1 6.4 3.0 to 3.6  5.8 7.9 RL = 100 kΩ 0.9 15  152.4  RL = 5 kΩ 1.1 to 1.3  12.2 16.9 1.4 to 1.6  7.5 9.8 1.65 to 1.95  8.3 9.6 2.3 to 2.7  6.0 9.4 3.0 to 3.6  7.1 9.5 ©2018 6 2018-06-07 Toshiba Electronic Devices & Storage Corporation Rev.2.0
