Datasheet STGWA50IH65DF (STMicroelectronics) - 8
| Fabricante | STMicroelectronics |
| Descripción | Trench gate field-stop IGBT, 650 V, 50 A soft switching IH series in a TO-247 long leads package |
| Páginas / Página | 14 / 8 — Electrical characteristics. STGWA50IH65DF. Figure 14: Gate charge vs. … |
| Revisión | 2 |
| Formato / tamaño de archivo | PDF / 811 Kb |
| Idioma del documento | Inglés |
Electrical characteristics. STGWA50IH65DF. Figure 14: Gate charge vs. gate-emitter voltage
Línea de modelo para esta hoja de datos
Versión de texto del documento

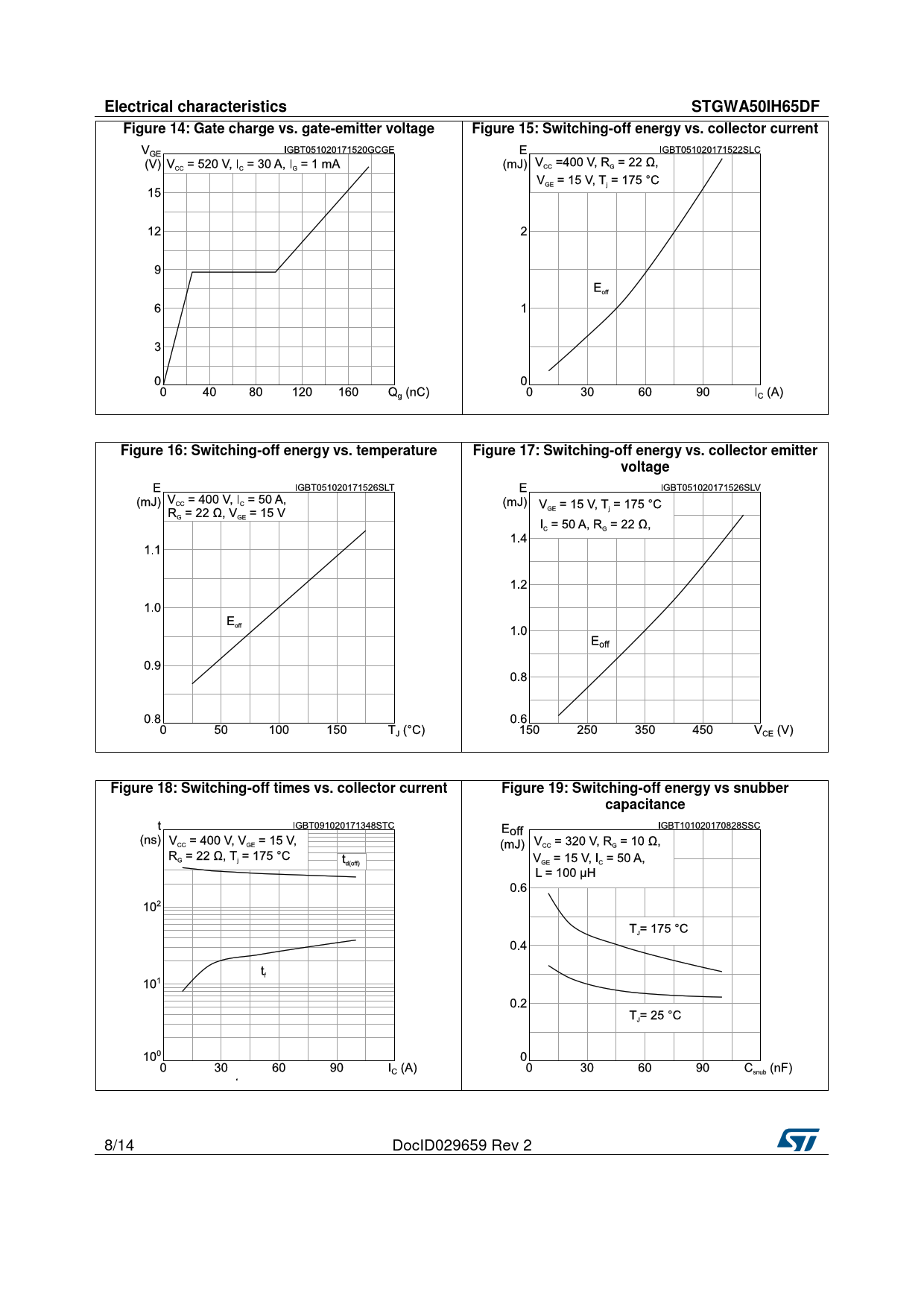

Electrical characteristics STGWA50IH65DF Figure 14: Gate charge vs. gate-emitter voltage Figure 15: Switching-off energy vs. collector current Figure 16: Switching-off energy vs. temperature Figure 17: Switching-off energy vs. collector emitter voltage Figure 18: Switching-off times vs. collector current Figure 19: Switching-off energy vs snubber capacitance
