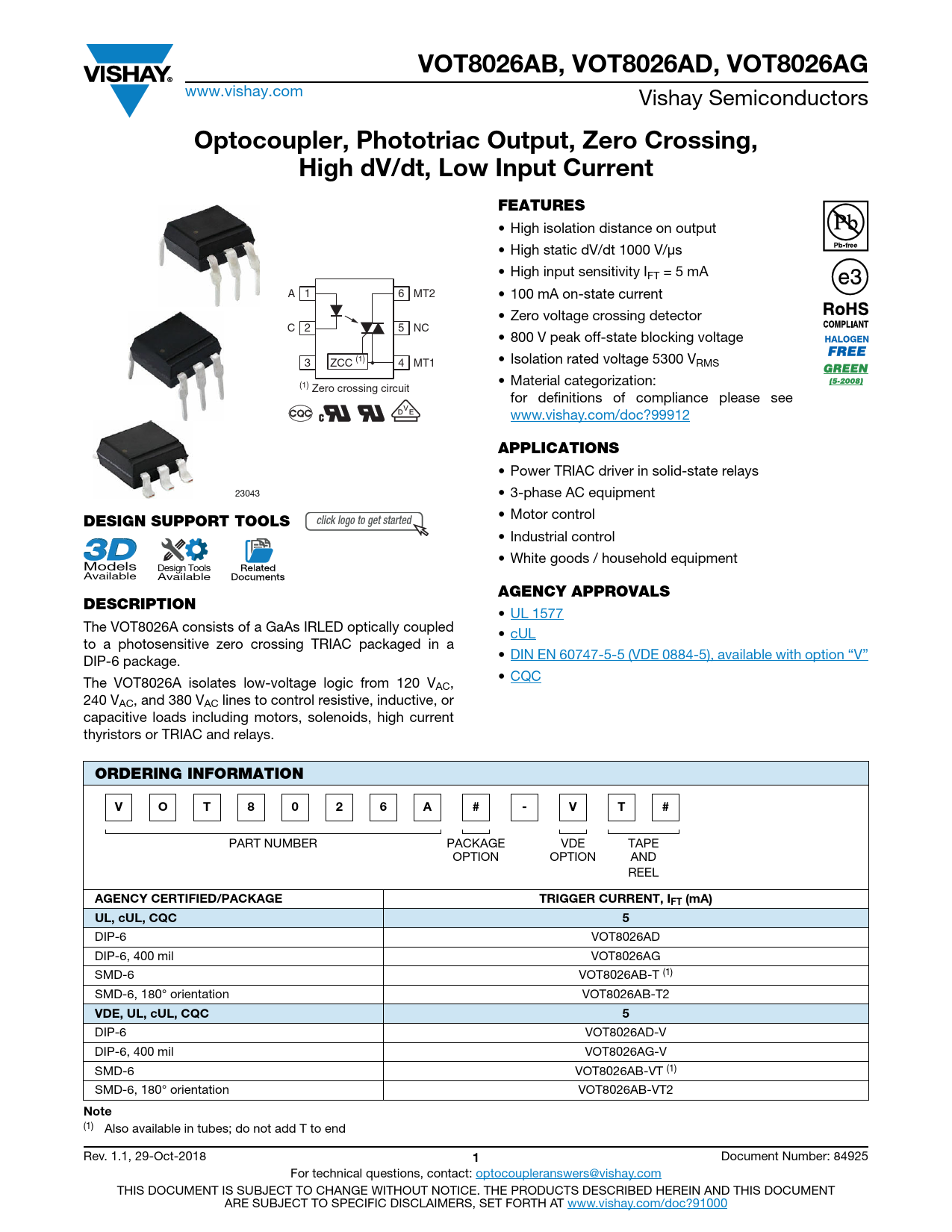

VOT8026AB, VOT8026AD, VOT8026AG. Optocoupler, Phototriac Output, Zero Crossing,. High dV/dt, Low Input Current. FEATURES
Línea de modelo para esta hoja de datos
Versión de texto del documento
VOT8026AB, VOT8026AD, VOT8026AG
www.vishay.com Vishay Semiconductors
Optocoupler, Phototriac Output, Zero Crossing, High dV/dt, Low Input Current FEATURES
• High isolation distance on output • High static dV/dt 1000 V/μs • High input sensitivity IFT = 5 mA A 1 6 MT2 • 100 mA on-state current • Zero voltage crossing detector C 2 5 NC • 800 V peak off-state blocking voltage 3 ZCC (1) 4 MT1 • Isolation rated voltage 5300 VRMS (1) • Material categorization: Zero crossing circuit for definitions of compliance please see www.vishay.com/doc?99912
APPLICATIONS
• Power TRIAC driver in solid-state relays 23043 • 3-phase AC equipment
DESIGN SUPPORT TOOLS
• Motor control click logo to get started • Industrial control • White goods / household equipment Models Design Tools Available Available
AGENCY APPROVALS DESCRIPTION
• UL 1577 The VOT8026A consists of a GaAs IRLED optically coupled • cUL to a photosensitive zero crossing TRIAC packaged in a • DIN EN 60747-5-5 (VDE 0884-5), available with option “V” DIP-6 package. • CQC The VOT8026A isolates low-voltage logic from 120 VAC, 240 VAC, and 380 VAC lines to control resistive, inductive, or capacitive loads including motors, solenoids, high current thyristors or TRIAC and relays.
ORDERING INFORMATION V O T 8 0 2 6 A # - V T #
PART NUMBER PACKAGE VDE TAPE OPTION OPTION AND REEL
AGENCY CERTIFIED/PACKAGE TRIGGER CURRENT, IFT (mA) UL, cUL, CQC 5
DIP-6 VOT8026AD DIP-6, 400 mil VOT8026AG SMD-6 VOT8026AB-T (1) SMD-6, 180° orientation VOT8026AB-T2
VDE, UL, cUL, CQC 5
DIP-6 VOT8026AD-V DIP-6, 400 mil VOT8026AG-V SMD-6 VOT8026AB-VT (1) SMD-6, 180° orientation VOT8026AB-VT2
Note
(1) Also available in tubes; do not add T to end Rev. 1.1, 29-Oct-2018
1
Document Number: 84925 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
