Datasheet VOT8123AB, VOT8123AD, VOT8123AG (Vishay) - 8
| Fabricante | Vishay |
| Descripción | Optocoupler, Phototriac Output, Non-Zero Crossing, High dV/dt, Low Input Current |
| Páginas / Página | 11 / 8 — VOT8123AB, VOT8123AD, VOT8123AG. PACKAGING INFORMATION. DEVICES PER TUBE … |
| Revisión | 1.1 |
| Formato / tamaño de archivo | PDF / 186 Kb |
| Idioma del documento | Inglés |
VOT8123AB, VOT8123AD, VOT8123AG. PACKAGING INFORMATION. DEVICES PER TUBE TYPE. UNITS/TUBE. TUBES/BOX. UNITS/BOX. SMD-6 Tape
Línea de modelo para esta hoja de datos
Versión de texto del documento
VOT8123AB, VOT8123AD, VOT8123AG
www.vishay.com Vishay Semiconductors

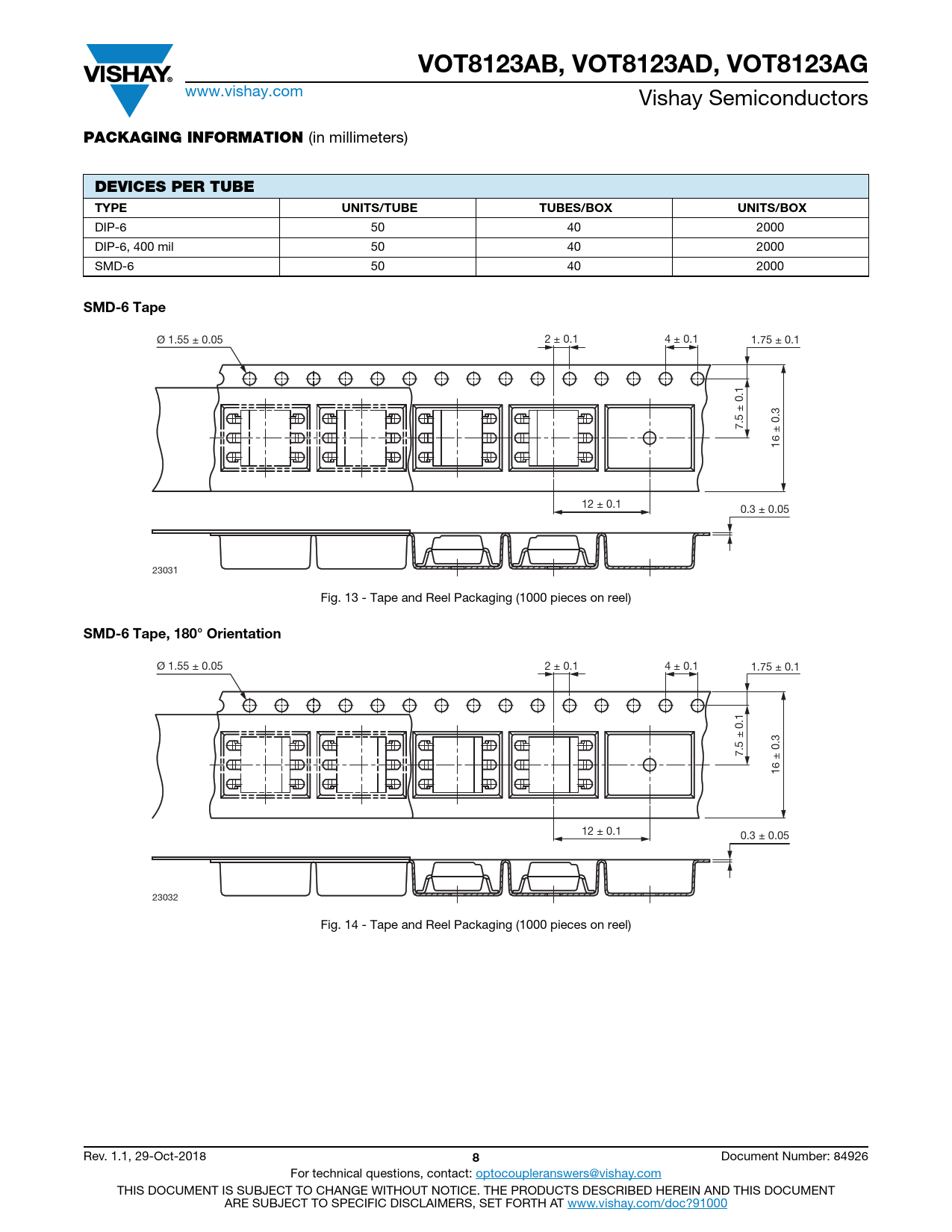

PACKAGING INFORMATION
(in millimeters)
DEVICES PER TUBE TYPE UNITS/TUBE TUBES/BOX UNITS/BOX
DIP-6 50 40 2000 DIP-6, 400 mil 50 40 2000 SMD-6 50 40 2000
SMD-6 Tape
Ø 1.55 ± 0.05 2 ± 0.1 4 ± 0.1 1.75 ± 0.1 7.5 ± 0.1 16 ± 0.3 12 ± 0.1 0.3 ± 0.05 23031 Fig. 13 - Tape and Reel Packaging (1000 pieces on reel)
SMD-6 Tape, 180° Orientation
Ø 1.55 ± 0.05 2 ± 0.1 4 ± 0.1 1.75 ± 0.1 7.5 ± 0.1 16 ± 0.3 12 ± 0.1 0.3 ± 0.05 23032 Fig. 14 - Tape and Reel Packaging (1000 pieces on reel) Rev. 1.1, 29-Oct-2018
8
Document Number: 84926 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
