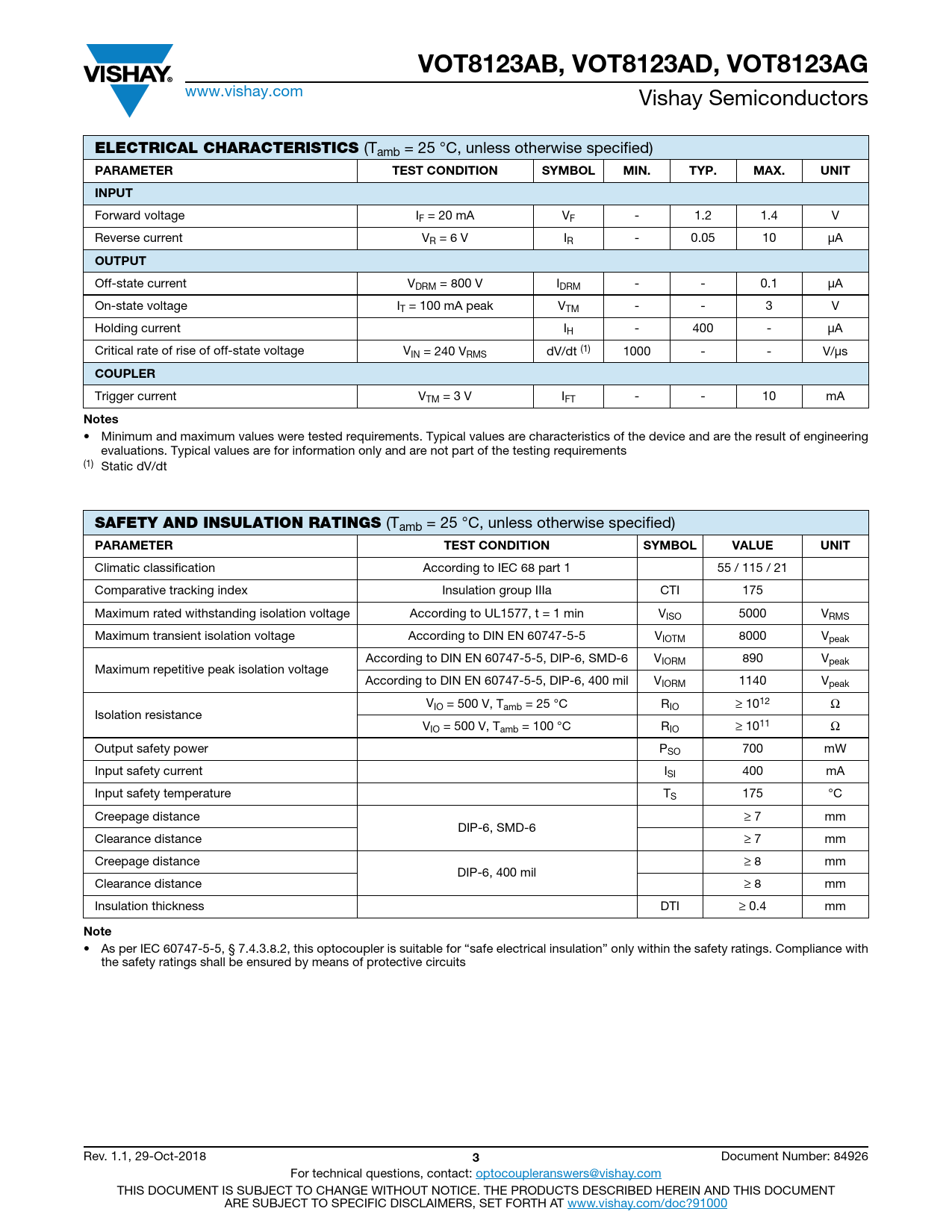

VOT8123AB, VOT8123AD, VOT8123AG
www.vishay.com Vishay Semiconductors
ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT INPUT
Forward voltage IF = 20 mA VF - 1.2 1.4 V Reverse current VR = 6 V IR - 0.05 10 μA
OUTPUT
Off-state current VDRM = 800 V IDRM - - 0.1 μA On-state voltage IT = 100 mA peak VTM - - 3 V Holding current IH - 400 - μA Critical rate of rise of off-state voltage VIN = 240 VRMS dV/dt (1) 1000 - - V/μs
COUPLER
Trigger current VTM = 3 V IFT - - 10 mA
Notes
• Minimum and maximum values were tested requirements. Typical values are characteristics of the device and are the result of engineering evaluations. Typical values are for information only and are not part of the testing requirements (1) Static dV/dt
SAFETY AND INSULATION RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Climatic classification According to IEC 68 part 1 55 / 115 / 21 Comparative tracking index Insulation group IIIa CTI 175 Maximum rated withstanding isolation voltage According to UL1577, t = 1 min VISO 5000 VRMS Maximum transient isolation voltage According to DIN EN 60747-5-5 VIOTM 8000 Vpeak According to DIN EN 60747-5-5, DIP-6, SMD-6 VIORM 890 Vpeak Maximum repetitive peak isolation voltage According to DIN EN 60747-5-5, DIP-6, 400 mil VIORM 1140 Vpeak VIO = 500 V, Tamb = 25 °C RIO ≥ 1012 Ω Isolation resistance VIO = 500 V, Tamb = 100 °C RIO ≥ 1011 Ω Output safety power PSO 700 mW Input safety current ISI 400 mA Input safety temperature TS 175 °C Creepage distance ≥ 7 mm DIP-6, SMD-6 Clearance distance ≥ 7 mm Creepage distance ≥ 8 mm DIP-6, 400 mil Clearance distance ≥ 8 mm Insulation thickness DTI ≥ 0.4 mm
Note
• As per IEC 60747-5-5, § 7.4.3.8.2, this optocoupler is suitable for “safe electrical insulation” only within the safety ratings. Compliance with the safety ratings shall be ensured by means of protective circuits Rev. 1.1, 29-Oct-2018
3
Document Number: 84926 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
