| Fabricante | Toshiba |
| Descripción | Low Dropout (LDO) Linear Voltage Regulator |
| Páginas / Página | 11 / 3 — TCR8BM series. Pin Assignment (top view). List of Produc. ts Number, … |
| Formato / tamaño de archivo | PDF / 722 Kb |
| Idioma del documento | Inglés |
TCR8BM series. Pin Assignment (top view). List of Produc. ts Number, Output voltage and Marking. Top Marking. (top view). 1M0
Línea de modelo para esta hoja de datos
- TCR8BM085A TCR8BM08A TCR8BM095A TCR8BM09A TCR8BM10 TCR8BM105 TCR8BM105A TCR8BM10A TCR8BM11 TCR8BM115A TCR8BM11A TCR8BM12 TCR8BM125A TCR8BM12A TCR8BM13A TCR8BM14A TCR8BM15A TCR8BM16A TCR8BM17A TCR8BM18A TCR8BM19A TCR8BM20A TCR8BM21A TCR8BM22A TCR8BM23A TCR8BM24A TCR8BM25A TCR8BM26A TCR8BM27A TCR8BM285A TCR8BM28A TCR8BM295A TCR8BM29A TCR8BM30A TCR8BM31A TCR8BM32A TCR8BM33A TCR8BM34A TCR8BM35A TCR8BM36A
Versión de texto del documento

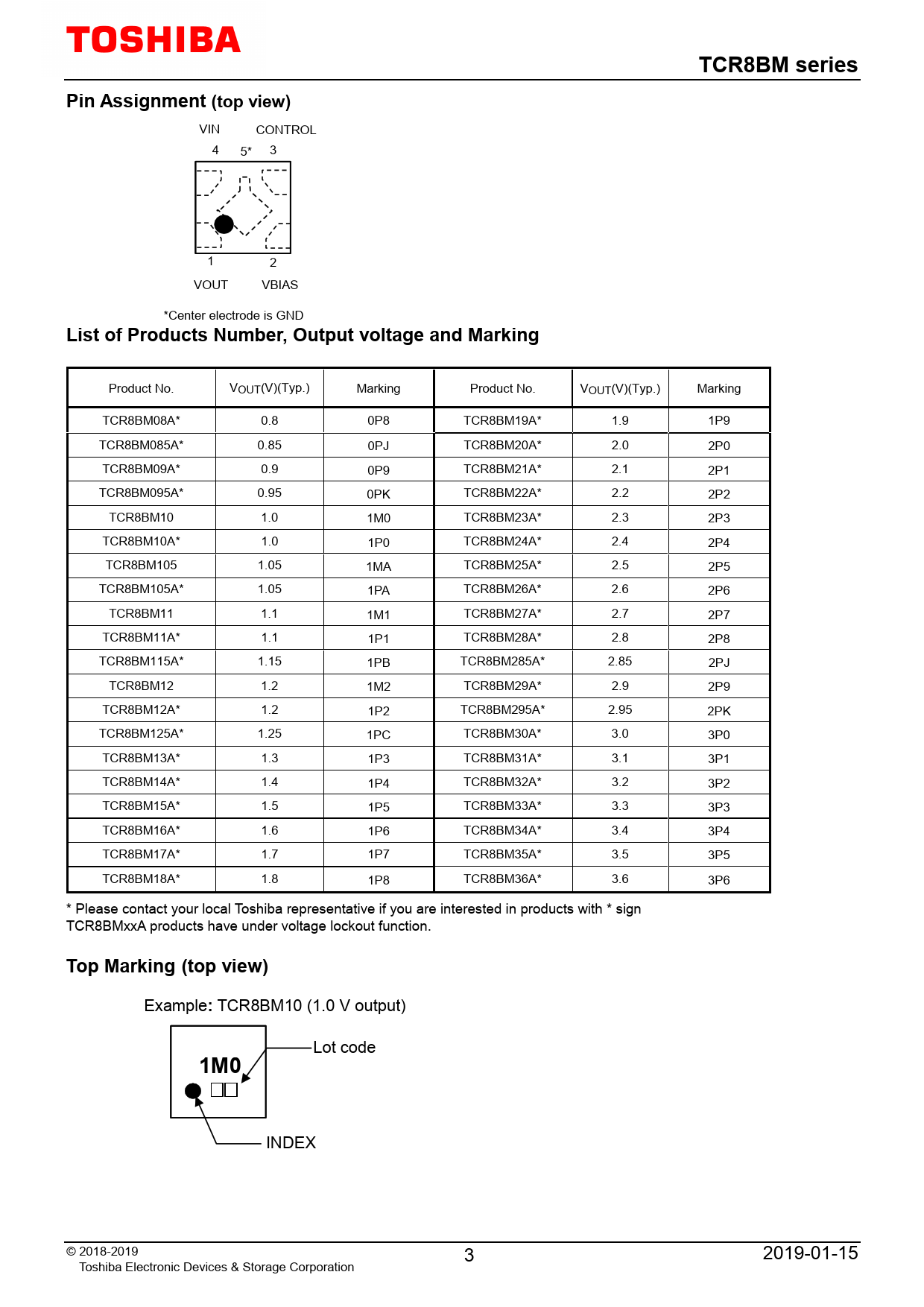

TCR8BM series Pin Assignment (top view)
VIN CONTROL 4 5 * 3 1 2 VBI VOUT AS *Center electrode is GND
List of Produc ts Number, Output voltage and Marking
Product No. VOUT(V)(Typ.) Marking Product No. VOUT(V)(Typ.) Marking TCR8BM08A* 0.8 0P8 TCR8BM19A* 1.9 1P9 TCR8BM085A* 0.85 0PJ TCR8BM20A* 2.0 2P0 TCR8BM09A* 0.9 0P9 TCR8BM21A* 2.1 2P1 TCR8BM095A* 0.95 0PK TCR8BM22A* 2.2 2P2 TCR8BM10 1.0 1M0 TCR8BM23A* 2.3 2P3 TCR8BM10A* 1.0 1P0 TCR8BM24A* 2.4 2P4 TCR8BM105 1.05 1MA TCR8BM25A* 2.5 2P5 TCR8BM105A* 1.05 1PA TCR8BM26A* 2.6 2P6 TCR8BM11 1.1 1M1 TCR8BM27A* 2.7 2P7 TCR8BM11A* 1.1 1P1 TCR8BM28A* 2.8 2P8 TCR8BM115A* 1.15 1PB TCR8BM285A* 2.85 2PJ TCR8BM12 1.2 1M2 TCR8BM29A* 2.9 2P9 TCR8BM12A* 1.2 1P2 TCR8BM295A* 2.95 2PK TCR8BM125A* 1.25 1PC TCR8BM30A* 3.0 3P0 TCR8BM13A* 1.3 1P3 TCR8BM31A* 3.1 3P1 TCR8BM14A* 1.4 1P4 TCR8BM32A* 3.2 3P2 TCR8BM15A* 1.5 1P5 TCR8BM33A* 3.3 3P3 TCR8BM16A* 1.6 1P6 TCR8BM34A* 3.4 3P4 TCR8BM17A* 1.7 1P7 TCR8BM35A* 3.5 3P5 TCR8BM18A* 1.8 1P8 TCR8BM36A* 3.6 3P6 * Please contact your local Toshiba representative if you are interested in products with * sign TCR8BMxxA products have under voltage lockout function.
Top Marking (top view)
Example
:
TCR8BM10 (1.0 V output) Lot code
1M0
INDEX © 2018-2019 3 2019-01-15 Toshiba Electronic Devices & Storage Corporation
