Datasheet TCR5BM (Toshiba) - 5
| Fabricante | Toshiba |
| Descripción | Low Dropout (LDO) Linear Voltage Regulator |
| Páginas / Página | 11 / 5 — TCR5BM series. Electrical Characteristics |
| Formato / tamaño de archivo | PDF / 719 Kb |
| Idioma del documento | Inglés |
TCR5BM series. Electrical Characteristics
Línea de modelo para esta hoja de datos
- TCR5BM105A TCR5BM10A TCR5BM11A TCR5BM12A TCR5BM085A TCR5BM08A TCR5BM095A TCR5BM09A TCR5BM10 TCR5BM105 TCR5BM11 TCR5BM115A TCR5BM12 TCR5BM125A TCR5BM13A TCR5BM14A TCR5BM15A TCR5BM16A TCR5BM17A TCR5BM18A TCR5BM19A TCR5BM20A TCR5BM21A TCR5BM22A TCR5BM23A TCR5BM24A TCR5BM25A TCR5BM26A TCR5BM27A TCR5BM285A TCR5BM28A TCR5BM295A TCR5BM29A TCR5BM30A TCR5BM31A TCR5BM32A TCR5BM33A TCR5BM34A TCR5BM35A TCR5BM36A
Versión de texto del documento

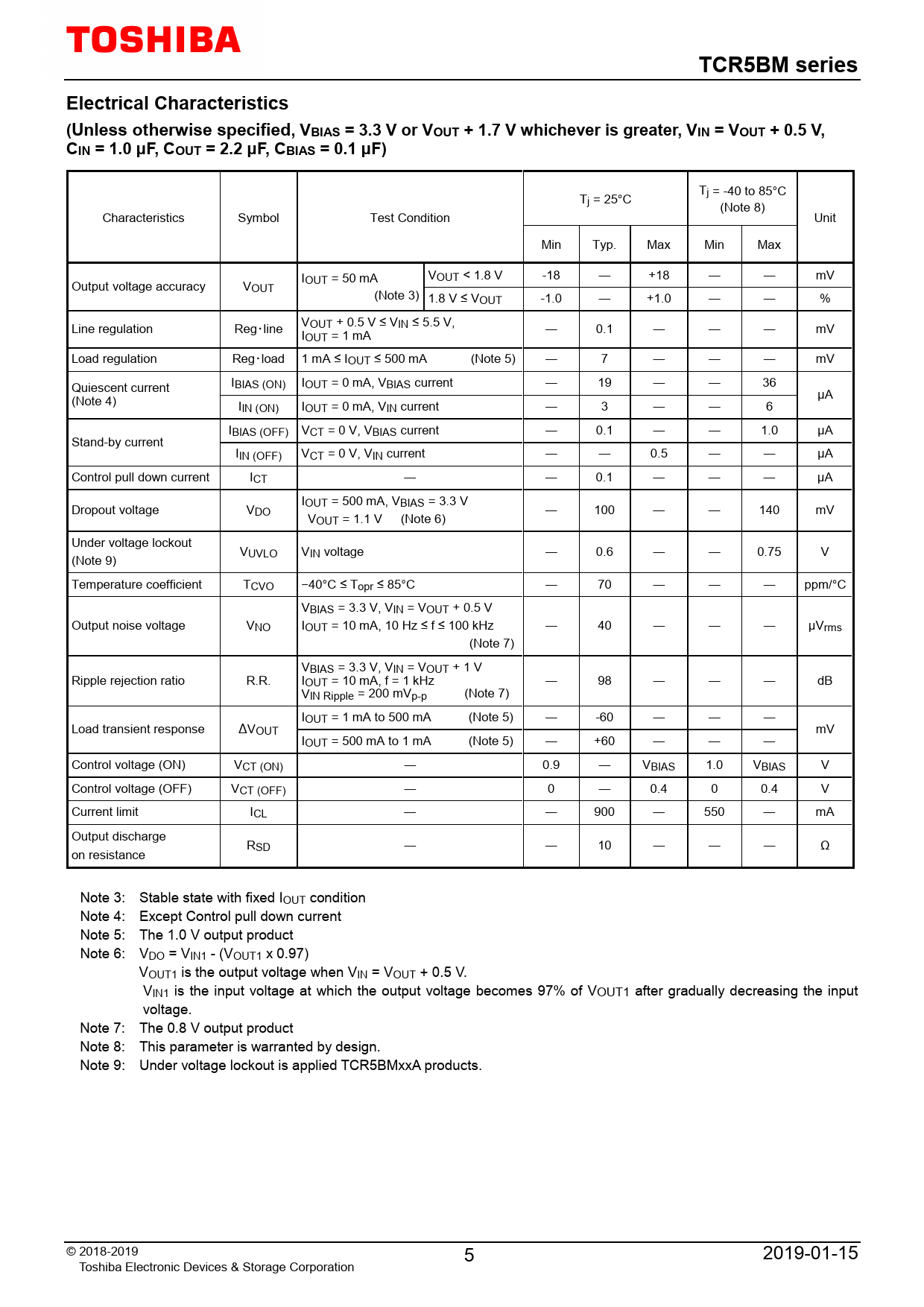

TCR5BM series Electrical Characteristics (Unless otherwise specified, VBIAS = 3.3 V or VOUT + 1.7 V whichever is greater, VIN = VOUT + 0.5 V, CIN = 1.0 μF, COUT = 2.2 μF, CBIAS = 0.1 μF)
T T j = -40 to 85°C j = 25°C (Note 8) Characteristics Symbol Test Condition Unit Min Typ. Max Min Max I VOUT < 1.8 V -18 ― +18 ― ― mV Output voltage accuracy V OUT = 50 mA OUT (Note 3) 1.8 V ≤ VOUT -1.0 ― +1.0 ― ― % Line regulation Reg･line VOUT + 0.5 V ≤ VIN ≤ 5.5 V, IOUT = 1 mA ― 0.1 ― ― ― mV Load regulation Reg･load 1 mA ≤ IOUT ≤ 500 mA (Note 5) ― 7 ― ― ― mV Quiescent current IBIAS (ON) IOUT = 0 mA, VBIAS current ― 19 ― ― 36 (Note 4) μA IIN (ON) IOUT = 0 mA, VIN current ― 3 ― ― 6 IBIAS (OFF) VCT = 0 V, VBIAS current ― 0.1
― ―
1.0 μA Stand-by current IIN (OFF) VCT = 0 V, VIN current ― ― 0.5
― ―
μA Control pull down current ICT ― ― 0.1 ―
― ―
μA I Dropout voltage V OUT = 500 mA, VBIAS = 3.3 V DO ― 100 ― ― 140 mV VOUT = 1.1 V (Note 6) Under voltage lockout V (Note 9) UVLO VIN voltage ― 0.6 ― ― 0.75 V Temperature coefficient TCVO −40°C ≤ Topr ≤ 85°C ― 70 ― ― ― ppm/°C VBIAS = 3.3 V, VIN = VOUT + 0.5 V Output noise voltage VNO IOUT = 10 mA, 10 Hz ≤ f ≤ 100 kHz ― 40 ― ― ― μVrms (Note 7) VBIAS = 3.3 V, VIN = VOUT + 1 V Ripple rejection ratio R.R. IOUT = 10 mA, f = 1 kHz ― 98 ― ― ― dB VIN Ripple = 200 mVp-p (Note 7) IOUT = 1 mA to 500 mA (Note 5) ― -60 ― ― ― Load transient response ∆VOUT mV IOUT = 500 mA to 1 mA (Note 5) ― +60 ― ― ― Control voltage (ON) VCT (ON) ― 0.9 ― VBIAS 1.0 VBIAS V Control voltage (OFF) VCT (OFF) ― 0 ― 0.4 0 0.4 V Current limit ICL ― ― 900 ― 550 ― mA Output discharge R on resistance SD ― ― 10 ― ― ― Ω Note 3: Stable state with fixed IOUT condition Note 4: Except Control pull down current Note 5: The 1.0 V output product Note 6: VDO = VIN1 - (VOUT1 x 0.97) VOUT1 is the output voltage when VIN = VOUT + 0.5 V. VIN1 is the input voltage at which the output voltage becomes 97% of VOUT1 after gradually decreasing the input voltage. Note 7: The 0.8 V output product Note 8: This parameter is warranted by design. Note 9: Under voltage lockout is applied TCR5BMxxA products. © 2018-2019 5 2019-01-15 Toshiba Electronic Devices & Storage Corporation
