ACT81460. Rev 1.0, 18-Dec-2018. ORDERING INFORMATION. Buck_Bst. PART NUMBER. VBUCK1 VBUCK2 VBUCK_BST VBOOST VLDO1. VLDO2. VLDO3. Mode
Línea de modelo para esta hoja de datos
Versión de texto del documento

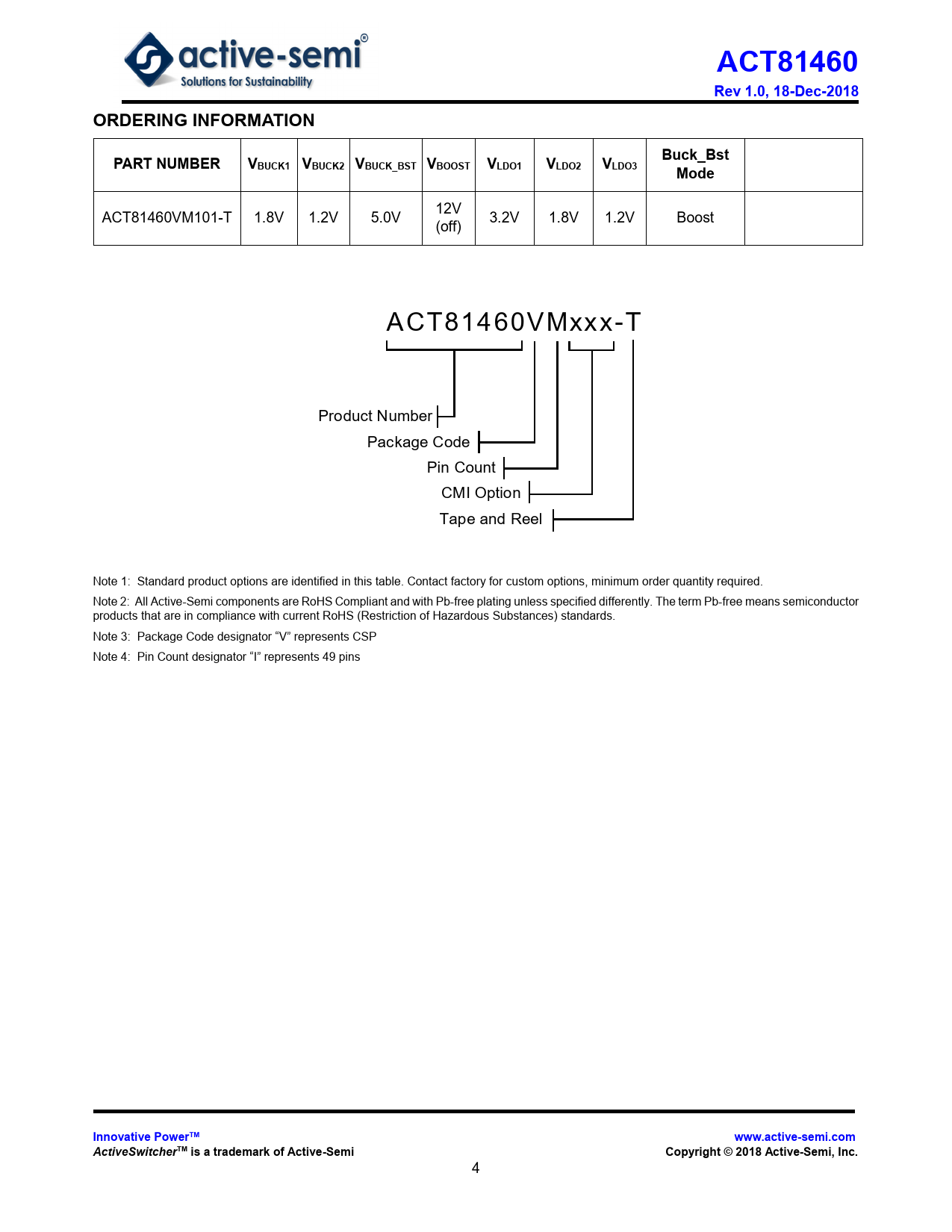

ACT81460 Rev 1.0, 18-Dec-2018 ORDERING INFORMATION Buck_Bst PART NUMBER VBUCK1 VBUCK2 VBUCK_BST VBOOST VLDO1 VLDO2 VLDO3 Mode
12V ACT81460VM101-T 1.8V 1.2V 5.0V 3.2V 1.8V 1.2V Boost (off) ACT81460VMxxx-T Product Number Package Code Pin Count CMI Option Tape and Reel Note 1: Standard product options are identified in this table. Contact factory for custom options, minimum order quantity required. Note 2: All Active-Semi components are RoHS Compliant and with Pb-free plating unless specified differently. The term Pb-free means semiconductor products that are in compliance with current RoHS (Restriction of Hazardous Substances) standards. Note 3: Package Code designator “V” represents CSP Note 4: Pin Count designator “I” represents 49 pins
Innovative PowerTM www.active-semi.com ActiveSwitcher TM is a trademark of Active-Semi Copyright © 2018 Active-Semi, Inc.
4
