Datasheet 1N5820, 1N5821, 1N5822 (ON Semiconductor) - 8

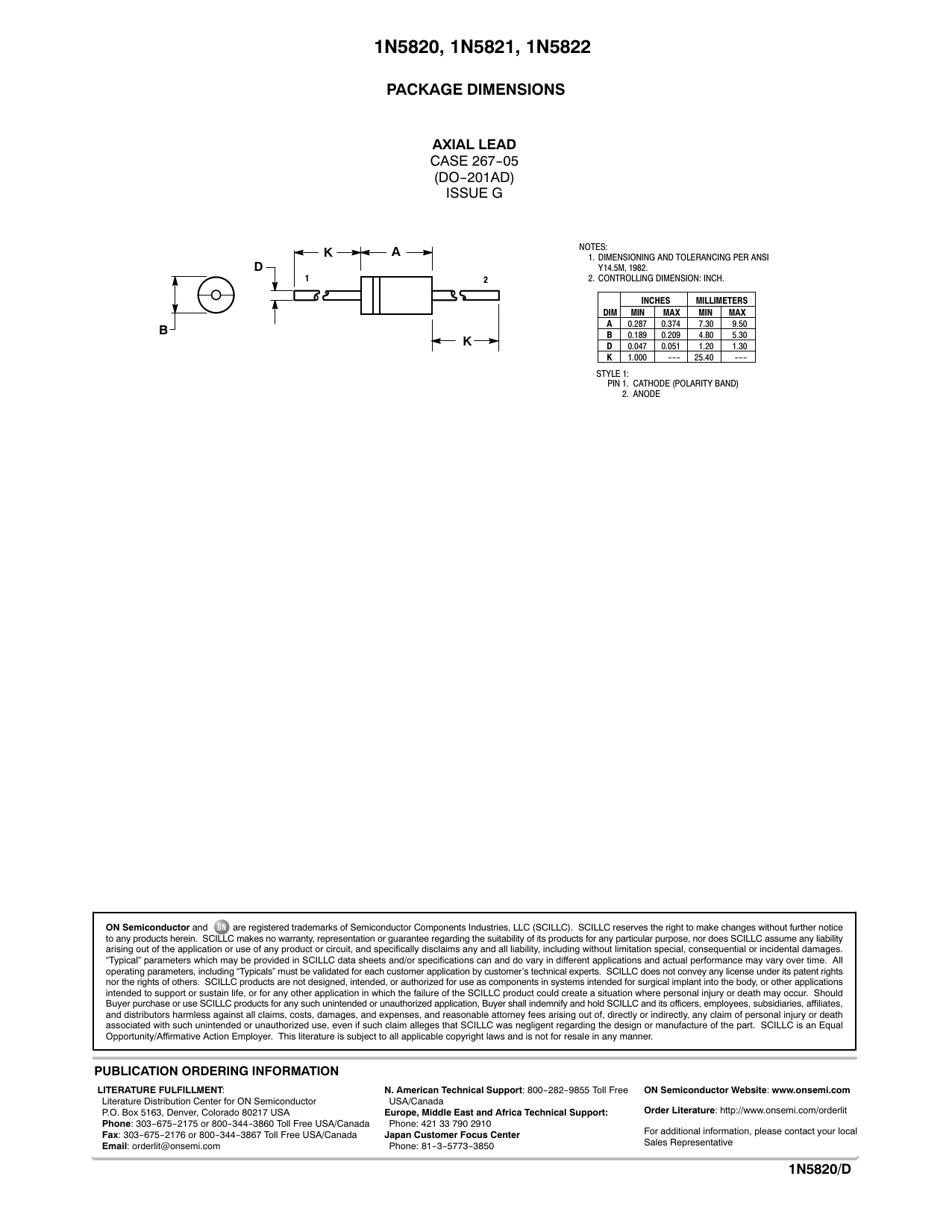

1N5820, 1N5821, 1N5822 PACKAGE DIMENSIONS AXIAL LEAD
CASE 267-05 (DO-201AD) ISSUE G NOTES:
K A
1. DIMENSIONING AND TOLERANCING PER ANSI
D
Y14.5M, 1982.
1 2
2. CONTROLLING DIMENSION: INCH.
INCHES MILLIMETERS DIM MIN MAX MIN MAX A
0.287 0.374 7.30 9.50
B B
0.189 0.209 4.80 5.30
K D
0.047 0.051 1.20 1.30
K
1.000 --- 25.40 --- STYLE 1: PIN 1. CATHODE (POLARITY BAND) 2. ANODE
