Datasheet LT3032 (Analog Devices) - 3
| Fabricante | Analog Devices |
| Descripción | Dual 150mA Positive/Negative Low Noise Low Dropout Linear Regulator |
| Páginas / Página | 24 / 3 — ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE … |
| Formato / tamaño de archivo | PDF / 410 Kb |
| Idioma del documento | Inglés |
ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION. TEMPERATURE RANGE. ELECTRICAL
Línea de modelo para esta hoja de datos
- LT3032EDE#PBF LT3032EDE#TRPBF LT3032EDE-12#PBF LT3032EDE-12#TRPBF LT3032EDE-15#PBF LT3032EDE-15#TRPBF LT3032EDE-3.3#PBF LT3032EDE-3.3#TRPBF LT3032EDE-5#PBF LT3032EDE-5#TRPBF LT3032IDE#PBF LT3032IDE#TRPBF LT3032IDE-12#PBF LT3032IDE-12#TRPBF LT3032IDE-15#PBF LT3032IDE-15#TRPBF LT3032IDE-3.3#PBF LT3032IDE-3.3#TRPBF LT3032IDE-5#PBF LT3032IDE-5#TRPBF LT3032MPDE#PBF LT3032MPDE#TRPBF LT3032MPDE-12#PBF LT3032MPDE-12#TRPBF LT3032MPDE-15#PBF LT3032MPDE-15#TRPBF LT3032MPDE-3.3#PBF LT3032MPDE-3.3#TRPBF LT3032MPDE-5#PBF LT3032MPDE-5#TRPBF
Versión de texto del documento
LT3032 Series

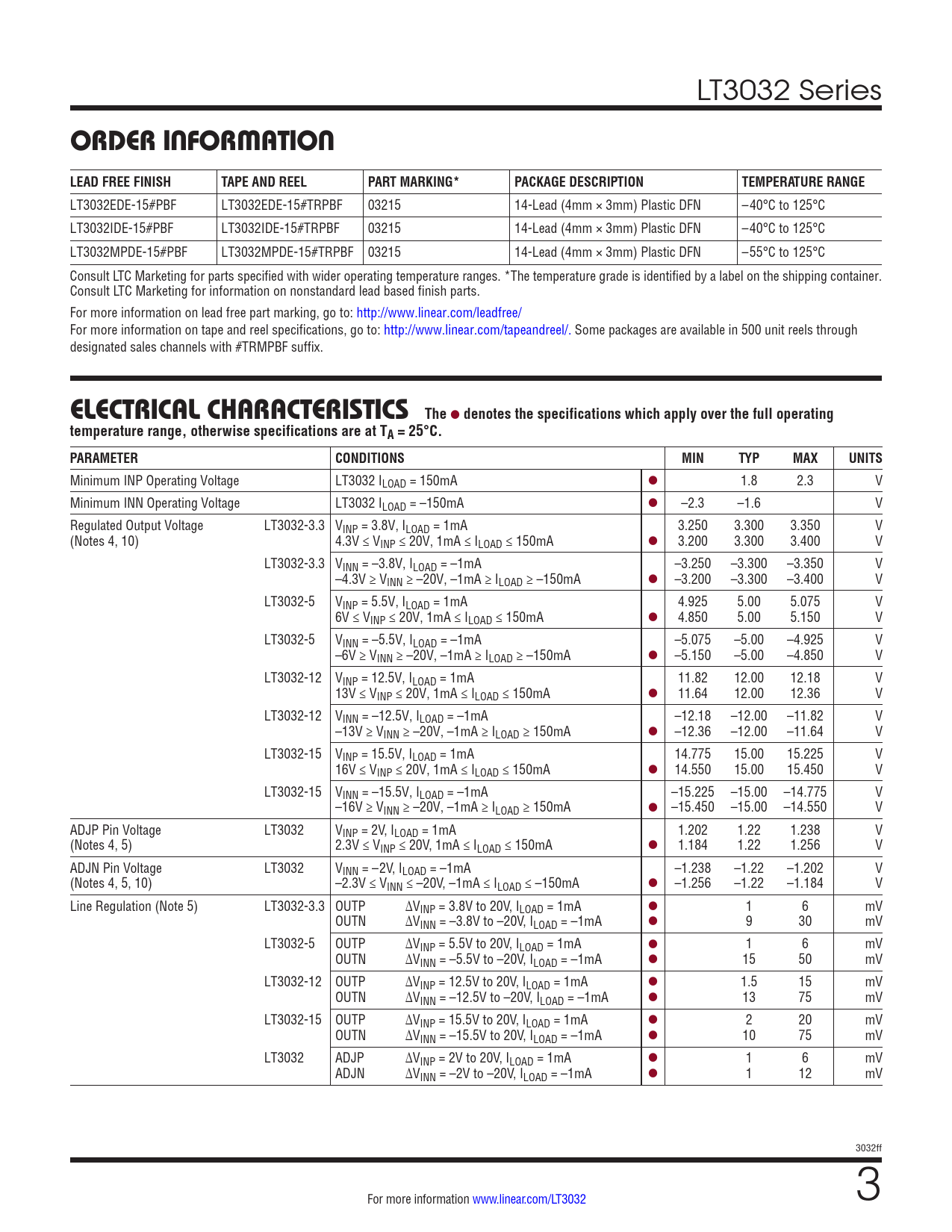

ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3032EDE-15#PBF LT3032EDE-15#TRPBF 03215 14-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3032IDE-15#PBF LT3032IDE-15#TRPBF 03215 14-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3032MPDE-15#PBF LT3032MPDE-15#TRPBF 03215 14-Lead (4mm × 3mm) Plastic DFN –55°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum INP Operating Voltage LT3032 ILOAD = 150mA l 1.8 2.3 V Minimum INN Operating Voltage LT3032 ILOAD = –150mA l –2.3 –1.6 V Regulated Output Voltage LT3032-3.3 VINP = 3.8V, ILOAD = 1mA 3.250 3.300 3.350 V (Notes 4, 10) 4.3V ≤ VINP ≤ 20V, 1mA ≤ ILOAD ≤ 150mA l 3.200 3.300 3.400 V LT3032-3.3 VINN = –3.8V, ILOAD = –1mA –3.250 –3.300 –3.350 V –4.3V ≥ VINN ≥ –20V, –1mA ≥ ILOAD ≥ –150mA l –3.200 –3.300 –3.400 V LT3032-5 VINP = 5.5V, ILOAD = 1mA 4.925 5.00 5.075 V 6V ≤ VINP ≤ 20V, 1mA ≤ ILOAD ≤ 150mA l 4.850 5.00 5.150 V LT3032-5 VINN = –5.5V, ILOAD = –1mA –5.075 –5.00 –4.925 V –6V ≥ VINN ≥ –20V, –1mA ≥ ILOAD ≥ –150mA l –5.150 –5.00 –4.850 V LT3032-12 VINP = 12.5V, ILOAD = 1mA 11.82 12.00 12.18 V 13V ≤ VINP ≤ 20V, 1mA ≤ ILOAD ≤ 150mA l 11.64 12.00 12.36 V LT3032-12 VINN = –12.5V, ILOAD = –1mA –12.18 –12.00 –11.82 V –13V ≥ VINN ≥ –20V, –1mA ≥ ILOAD ≥ 150mA l –12.36 –12.00 –11.64 V LT3032-15 VINP = 15.5V, ILOAD = 1mA 14.775 15.00 15.225 V 16V ≤ VINP ≤ 20V, 1mA ≤ ILOAD ≤ 150mA l 14.550 15.00 15.450 V LT3032-15 VINN = –15.5V, ILOAD = –1mA –15.225 –15.00 –14.775 V –16V ≥ VINN ≥ –20V, –1mA ≥ ILOAD ≥ 150mA l –15.450 –15.00 –14.550 V ADJP Pin Voltage LT3032 VINP = 2V, ILOAD = 1mA 1.202 1.22 1.238 V (Notes 4, 5) 2.3V ≤ VINP ≤ 20V, 1mA ≤ ILOAD ≤ 150mA l 1.184 1.22 1.256 V ADJN Pin Voltage LT3032 VINN = –2V, ILOAD = –1mA –1.238 –1.22 –1.202 V (Notes 4, 5, 10) –2.3V ≤ VINN ≤ –20V, –1mA ≤ ILOAD ≤ –150mA l –1.256 –1.22 –1.184 V Line Regulation (Note 5) LT3032-3.3 OUTP ΔVINP = 3.8V to 20V, ILOAD = 1mA l 1 6 mV OUTN ΔVINN = –3.8V to –20V, ILOAD = –1mA l 9 30 mV LT3032-5 OUTP ΔVINP = 5.5V to 20V, ILOAD = 1mA l 1 6 mV OUTN ΔVINN = –5.5V to –20V, ILOAD = –1mA l 15 50 mV LT3032-12 OUTP ΔVINP = 12.5V to 20V, ILOAD = 1mA l 1.5 15 mV OUTN ΔVINN = –12.5V to –20V, ILOAD = –1mA l 13 75 mV LT3032-15 OUTP ΔVINP = 15.5V to 20V, ILOAD = 1mA l 2 20 mV OUTN ΔVINN = –15.5V to 20V, ILOAD = –1mA l 10 75 mV LT3032 ADJP ΔVINP = 2V to 20V, ILOAD = 1mA l 1 6 mV ADJN ΔVINN = –2V to –20V, ILOAD = –1mA l 1 12 mV 3032ff For more information www.linear.com/LT3032 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Package Description Revision History Typical Application Related Parts
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3032EDE-15#PBF LT3032EDE-15#TRPBF 03215 14-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3032IDE-15#PBF LT3032IDE-15#TRPBF 03215 14-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3032MPDE-15#PBF LT3032MPDE-15#TRPBF 03215 14-Lead (4mm × 3mm) Plastic DFN –55°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum INP Operating Voltage LT3032 ILOAD = 150mA l 1.8 2.3 V Minimum INN Operating Voltage LT3032 ILOAD = –150mA l –2.3 –1.6 V Regulated Output Voltage LT3032-3.3 VINP = 3.8V, ILOAD = 1mA 3.250 3.300 3.350 V (Notes 4, 10) 4.3V ≤ VINP ≤ 20V, 1mA ≤ ILOAD ≤ 150mA l 3.200 3.300 3.400 V LT3032-3.3 VINN = –3.8V, ILOAD = –1mA –3.250 –3.300 –3.350 V –4.3V ≥ VINN ≥ –20V, –1mA ≥ ILOAD ≥ –150mA l –3.200 –3.300 –3.400 V LT3032-5 VINP = 5.5V, ILOAD = 1mA 4.925 5.00 5.075 V 6V ≤ VINP ≤ 20V, 1mA ≤ ILOAD ≤ 150mA l 4.850 5.00 5.150 V LT3032-5 VINN = –5.5V, ILOAD = –1mA –5.075 –5.00 –4.925 V –6V ≥ VINN ≥ –20V, –1mA ≥ ILOAD ≥ –150mA l –5.150 –5.00 –4.850 V LT3032-12 VINP = 12.5V, ILOAD = 1mA 11.82 12.00 12.18 V 13V ≤ VINP ≤ 20V, 1mA ≤ ILOAD ≤ 150mA l 11.64 12.00 12.36 V LT3032-12 VINN = –12.5V, ILOAD = –1mA –12.18 –12.00 –11.82 V –13V ≥ VINN ≥ –20V, –1mA ≥ ILOAD ≥ 150mA l –12.36 –12.00 –11.64 V LT3032-15 VINP = 15.5V, ILOAD = 1mA 14.775 15.00 15.225 V 16V ≤ VINP ≤ 20V, 1mA ≤ ILOAD ≤ 150mA l 14.550 15.00 15.450 V LT3032-15 VINN = –15.5V, ILOAD = –1mA –15.225 –15.00 –14.775 V –16V ≥ VINN ≥ –20V, –1mA ≥ ILOAD ≥ 150mA l –15.450 –15.00 –14.550 V ADJP Pin Voltage LT3032 VINP = 2V, ILOAD = 1mA 1.202 1.22 1.238 V (Notes 4, 5) 2.3V ≤ VINP ≤ 20V, 1mA ≤ ILOAD ≤ 150mA l 1.184 1.22 1.256 V ADJN Pin Voltage LT3032 VINN = –2V, ILOAD = –1mA –1.238 –1.22 –1.202 V (Notes 4, 5, 10) –2.3V ≤ VINN ≤ –20V, –1mA ≤ ILOAD ≤ –150mA l –1.256 –1.22 –1.184 V Line Regulation (Note 5) LT3032-3.3 OUTP ΔVINP = 3.8V to 20V, ILOAD = 1mA l 1 6 mV OUTN ΔVINN = –3.8V to –20V, ILOAD = –1mA l 9 30 mV LT3032-5 OUTP ΔVINP = 5.5V to 20V, ILOAD = 1mA l 1 6 mV OUTN ΔVINN = –5.5V to –20V, ILOAD = –1mA l 15 50 mV LT3032-12 OUTP ΔVINP = 12.5V to 20V, ILOAD = 1mA l 1.5 15 mV OUTN ΔVINN = –12.5V to –20V, ILOAD = –1mA l 13 75 mV LT3032-15 OUTP ΔVINP = 15.5V to 20V, ILOAD = 1mA l 2 20 mV OUTN ΔVINN = –15.5V to 20V, ILOAD = –1mA l 10 75 mV LT3032 ADJP ΔVINP = 2V to 20V, ILOAD = 1mA l 1 6 mV ADJN ΔVINN = –2V to –20V, ILOAD = –1mA l 1 12 mV 3032ff For more information www.linear.com/LT3032 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Package Description Revision History Typical Application Related Parts
