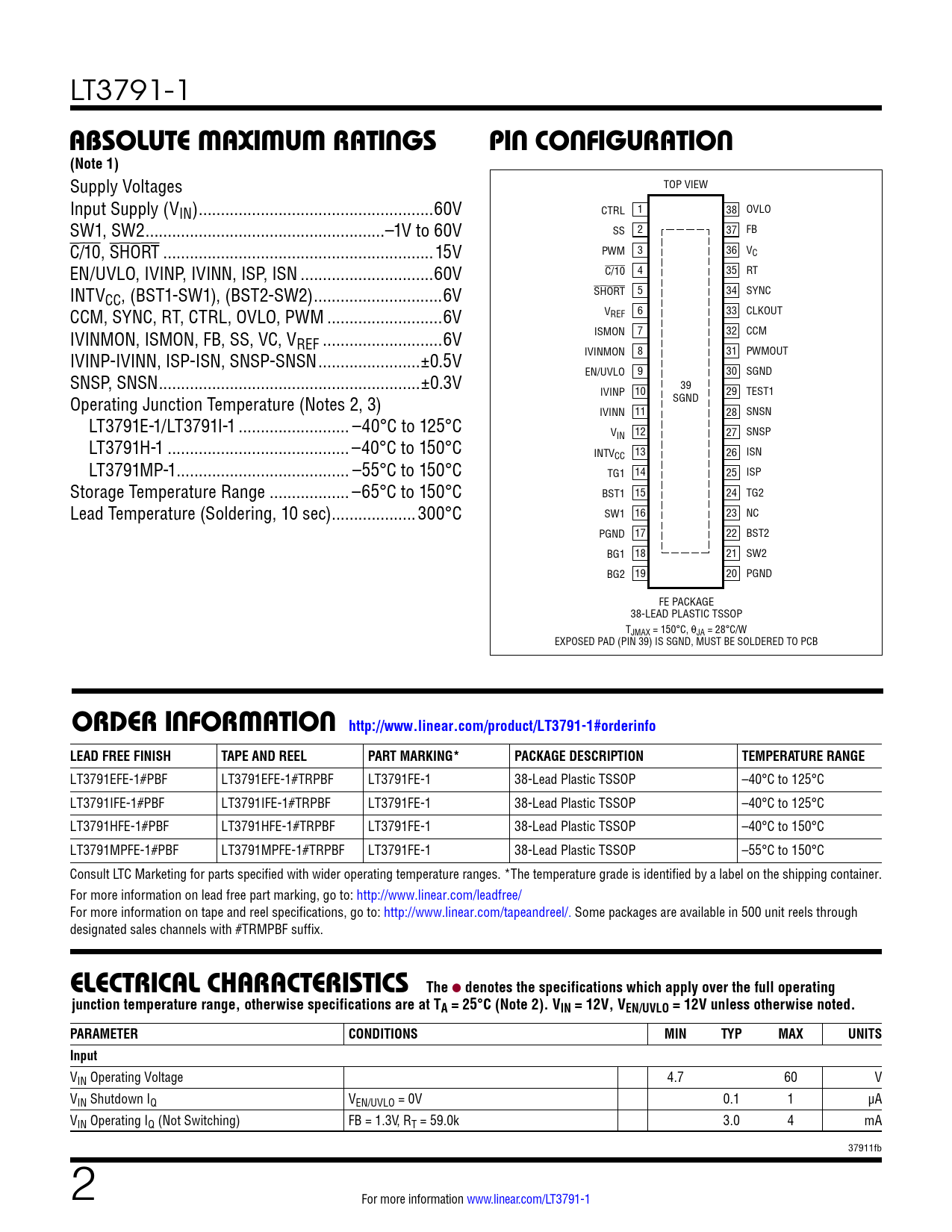

LT3791-1
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
Supply Voltages TOP VIEW Input Supply (VIN) ...60V CTRL 1 38 OVLO SW1, SW2 ..–1V to 60V SS 2 37 FB C/10, SHORT ...15V PWM 3 36 VC EN/UVLO, IVINP, IVINN, ISP, ISN ..60V C/10 4 35 RT INTV SHORT 5 34 SYNC CC, (BST1-SW1), (BST2-SW2) ...6V CCM, SYNC, RT, CTRL, OVLO, PWM ..6V V 6 33 REF CLKOUT IVINMON, ISMON, FB, SS, VC, V ISMON 7 32 CCM REF ...6V IVINP-IVINN, ISP-ISN, SNSP-SNSN ...±0.5V IVINMON 8 31 PWMOUT SNSP, SNSN ...±0.3V EN/UVLO 9 30 SGND 39 IVINP 10 29 TEST1 Operating Junction Temperature (Notes 2, 3) SGND IVINN 11 28 SNSN LT3791E-1/LT3791I-1 ... –40°C to 125°C V 12 27 IN SNSP LT3791H-1 ... –40°C to 150°C INTV 13 26 CC ISN LT3791MP-1... –55°C to 150°C TG1 14 25 ISP Storage Temperature Range .. –65°C to 150°C BST1 15 24 TG2 Lead Temperature (Soldering, 10 sec) ...300°C SW1 16 23 NC PGND 17 22 BST2 BG1 18 21 SW2 BG2 19 20 PGND FE PACKAGE 38-LEAD PLASTIC TSSOP TJMAX = 150°C, θJA = 28°C/W EXPOSED PAD (PIN 39) IS SGND, MUST BE SOLDERED TO PCB
orDer inForMaTion http://www.linear.com/product/LT3791-1#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3791EFE-1#PBF LT3791EFE-1#TRPBF LT3791FE-1 38-Lead Plastic TSSOP –40°C to 125°C LT3791IFE-1#PBF LT3791IFE-1#TRPBF LT3791FE-1 38-Lead Plastic TSSOP –40°C to 125°C LT3791HFE-1#PBF LT3791HFE-1#TRPBF LT3791FE-1 38-Lead Plastic TSSOP –40°C to 150°C LT3791MPFE-1#PBF LT3791MPFE-1#TRPBF LT3791FE-1 38-Lead Plastic TSSOP –55°C to 150°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
e lecTrical characTerisTics The
l
denotes the specifications which apply over the full operating junction temperature range, otherwise specifications are at TA = 25°C (Note 2). VIN = 12V, VEN/UVLO = 12V unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS Input
VIN Operating Voltage 4.7 60 V VIN Shutdown IQ VEN/UVLO = 0V 0.1 1 µA VIN Operating IQ (Not Switching) FB = 1.3V, RT = 59.0k 3.0 4 mA 37911fb 2 For more information www.linear.com/LT3791-1 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Typical Application Related Parts
