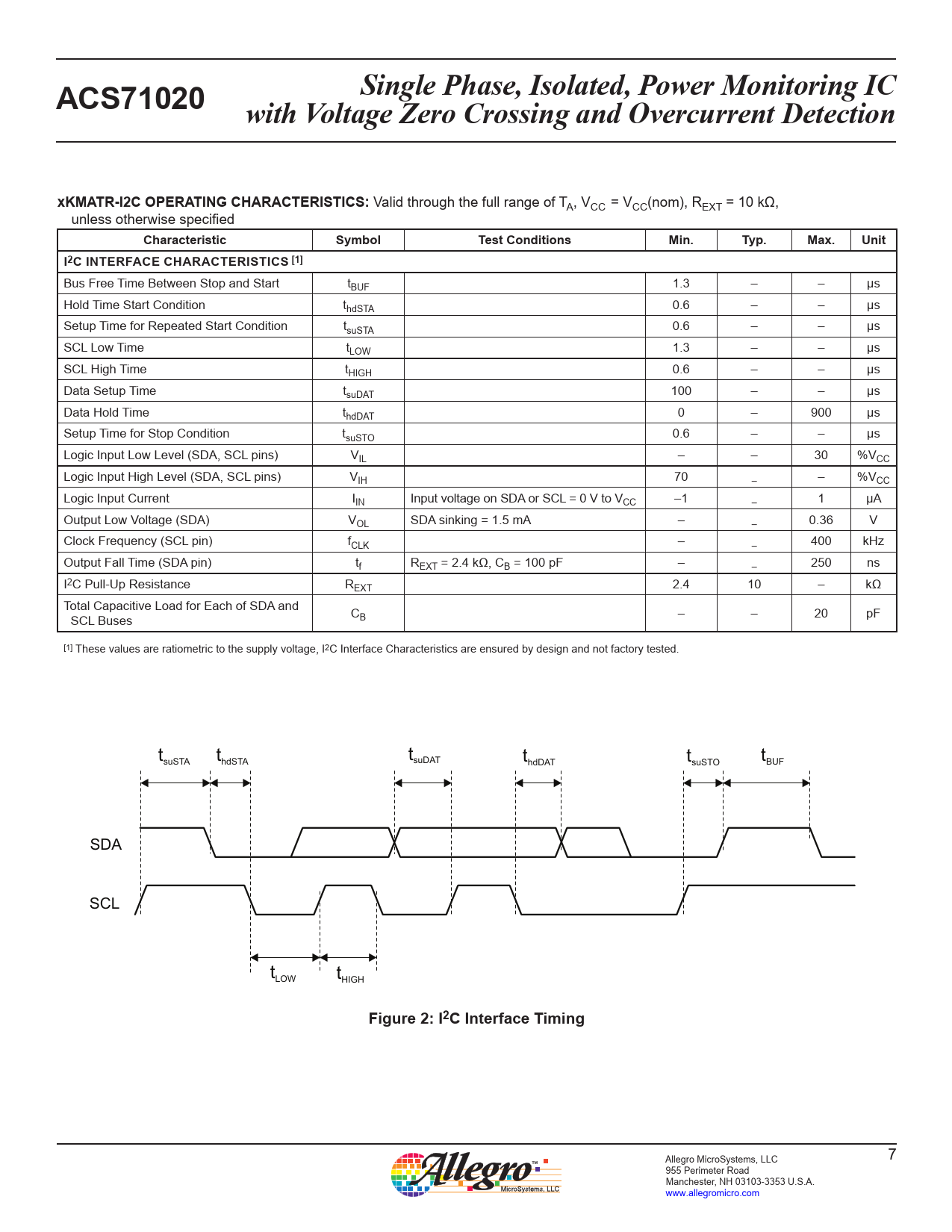

Single Phase, Isolated, Power Monitoring IC. ACS71020 with Voltage Zero Crossing and Overcurrent Detection
Línea de modelo para esta hoja de datos
Versión de texto del documento
Single Phase, Isolated, Power Monitoring IC ACS71020 with Voltage Zero Crossing and Overcurrent Detection xKMATR-I2C OPERATING CHARACTERISTICS:
Valid through the full range of TA, VCC = VCC(nom), REXT = 10 kΩ, unless otherwise specified
Characteristic Symbol Test Conditions Min. Typ. Max. Unit I2C INTERFACE CHARACTERISTICS [1]
Bus Free Time Between Stop and Start tBUF 1.3 – – µs Hold Time Start Condition thdSTA 0.6 – – µs Setup Time for Repeated Start Condition tsuSTA 0.6 – – µs SCL Low Time tLOW 1.3 – – µs SCL High Time tHIGH 0.6 – – µs Data Setup Time tsuDAT 100 – – µs Data Hold Time thdDAT 0 – 900 µs Setup Time for Stop Condition tsuSTO 0.6 – – µs Logic Input Low Level (SDA, SCL pins) VIL – – 30 %VCC Logic Input High Level (SDA, SCL pins) VIH 70 – – %VCC Logic Input Current IIN Input voltage on SDA or SCL = 0 V to VCC –1 – 1 µA Output Low Voltage (SDA) VOL SDA sinking = 1.5 mA – – 0.36 V Clock Frequency (SCL pin) fCLK – – 400 kHz Output Fall Time (SDA pin) tf REXT = 2.4 kΩ, CB = 100 pF – – 250 ns I2C Pull-Up Resistance REXT 2.4 10 – kΩ Total Capacitive Load for Each of SDA and SCL Buses CB – – 20 pF [1] These values are ratiometric to the supply voltage, I2C Interface Characteristics are ensured by design and not factory tested. t t t t t t suSTA hdSTA suDAT hdDAT suSTO BUF SDA SCL t t LOW HIGH
Figure 2: I2C Interface Timing
