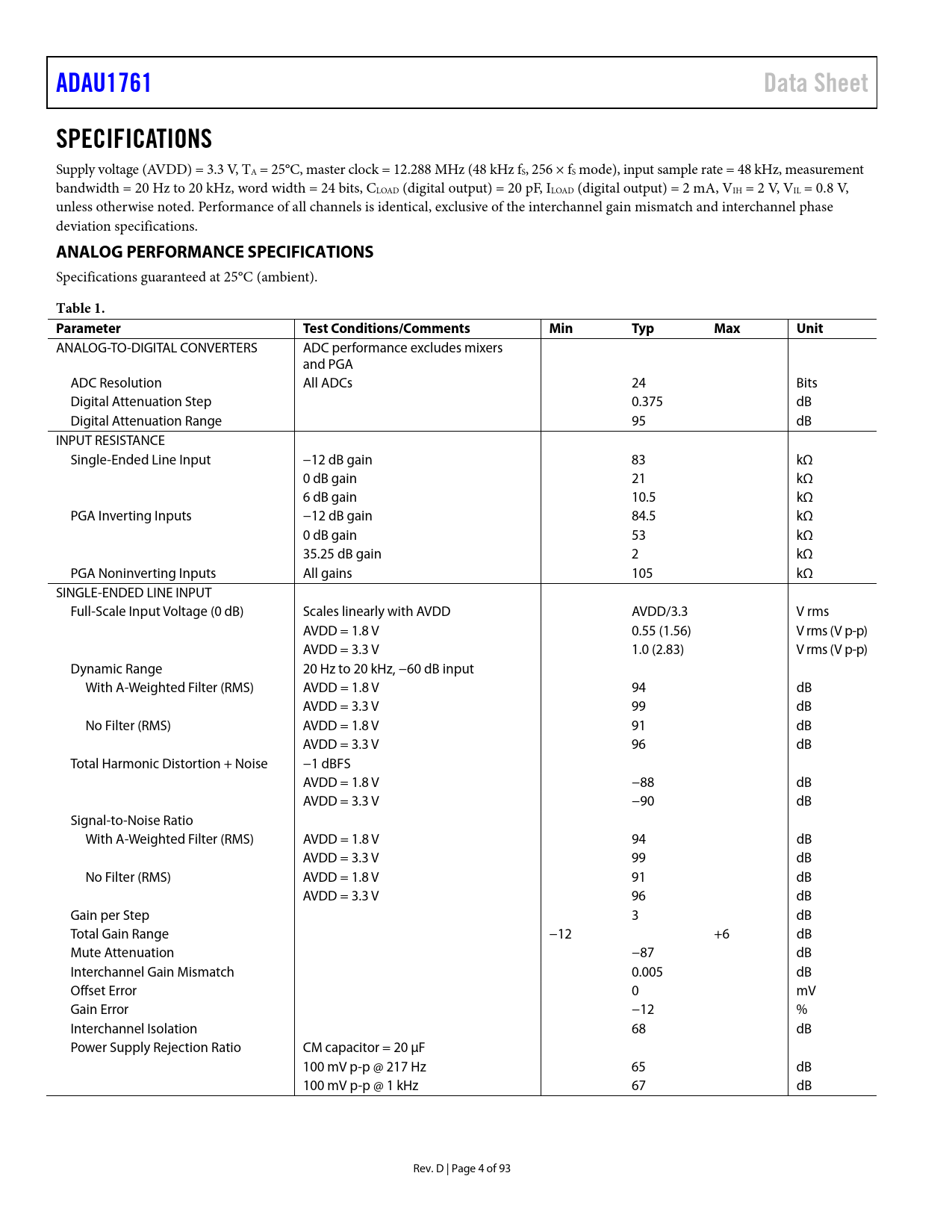

ADAU1761 Data Sheet SPECIFICATIONS
Supply voltage (AVDD) = 3.3 V, TA = 25°C, master clock = 12.288 MHz (48 kHz fS, 256 × fS mode), input sample rate = 48 kHz, measurement bandwidth = 20 Hz to 20 kHz, word width = 24 bits, CLOAD (digital output) = 20 pF, ILOAD (digital output) = 2 mA, VIH = 2 V, VIL = 0.8 V, unless otherwise noted. Performance of all channels is identical, exclusive of the interchannel gain mismatch and interchannel phase deviation specifications.
ANALOG PERFORMANCE SPECIFICATIONS
Specifications guaranteed at 25°C (ambient).
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
ANALOG-TO-DIGITAL CONVERTERS ADC performance excludes mixers and PGA ADC Resolution All ADCs 24 Bits Digital Attenuation Step 0.375 dB Digital Attenuation Range 95 dB INPUT RESISTANCE Single-Ended Line Input −12 dB gain 83 kΩ 0 dB gain 21 kΩ 6 dB gain 10.5 kΩ PGA Inverting Inputs −12 dB gain 84.5 kΩ 0 dB gain 53 kΩ 35.25 dB gain 2 kΩ PGA Noninverting Inputs All gains 105 kΩ SINGLE-ENDED LINE INPUT Full-Scale Input Voltage (0 dB) Scales linearly with AVDD AVDD/3.3 V rms AVDD = 1.8 V 0.55 (1.56) V rms (V p-p) AVDD = 3.3 V 1.0 (2.83) V rms (V p-p) Dynamic Range 20 Hz to 20 kHz, −60 dB input With A-Weighted Filter (RMS) AVDD = 1.8 V 94 dB AVDD = 3.3 V 99 dB No Filter (RMS) AVDD = 1.8 V 91 dB AVDD = 3.3 V 96 dB Total Harmonic Distortion + Noise −1 dBFS AVDD = 1.8 V −88 dB AVDD = 3.3 V −90 dB Signal-to-Noise Ratio With A-Weighted Filter (RMS) AVDD = 1.8 V 94 dB AVDD = 3.3 V 99 dB No Filter (RMS) AVDD = 1.8 V 91 dB AVDD = 3.3 V 96 dB Gain per Step 3 dB Total Gain Range −12 +6 dB Mute Attenuation −87 dB Interchannel Gain Mismatch 0.005 dB Offset Error 0 mV Gain Error −12 % Interchannel Isolation 68 dB Power Supply Rejection Ratio CM capacitor = 20 μF 100 mV p-p @ 217 Hz 65 dB 100 mV p-p @ 1 kHz 67 dB Rev. D | Page 4 of 93 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Analog Performance Specifications Power Supply Specifications Typical Current Consumption Typical Power Management Measurements Digital Filters Digital Input/Output Specifications Digital Timing Specifications Digital Timing Diagrams Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics System Block Diagrams Theory of Operation Startup, Initialization, and Power Power-Up Sequence Power Reduction Modes Digital Power Supply Input/Output Power Supply Clock Generation and Management Case 1: PLL Is Bypassed Case 2: PLL Is Used PLL Lock Acquisition Clocking and Sampling Rates Core Clock Sampling Rates PLL Integer Mode Fractional Mode Record Signal Path Input Signal Paths Analog Microphone Inputs Analog Line Inputs Digital Microphone Input Microphone Bias Analog-to-Digital Converters ADC Full-Scale Level Digital ADC Volume Control High-Pass Filter Automatic Level Control (ALC) ALC Parameters Noise Gate Function Playback Signal Path Output Signal Paths Routing Flexibility Headphone Output Capless Headphone Configuration Headphone Output Power-Up/Power-Down Sequencing Ground-Centered Headphone Configuration Jack Detection Pop-and-Click Suppression Line Outputs Control Ports Burst Mode Writing and Reading I2C Port Addressing I2C Read and Write Operations SPI Port Chip Address R/WB Subaddress Data Bytes Serial Data Input/Output Ports Applications Information Power Supply Bypass Capacitors GSM Noise Filter Grounding Exposed Pad PCB Design DSP Core Signal Processing Architecture Program Counter Features Startup Numeric Formats Numeric Format 5.23 Programming Program RAM, Parameter RAM, and Data RAM Program RAM Parameter RAM Data RAM Read/Write Data Formats Software Safeload Software Slew General-Purpose Input/Output GPIO Pins Set from the Control Port Control Registers Control Register Details R0: Clock Control, 16,384 (0x4000) R1: PLL Control, 16,386 (0x4002) R2: Digital Microphone/Jack Detection Control, 16,392 (0x4008) R3: Record Power Management, 16,393 (0x4009) R4: Record Mixer Left (Mixer 1) Control 0, 16,394 (0x400A) R5: Record Mixer Left (Mixer 1) Control 1, 16,395 (0x400B) R6: Record Mixer Right (Mixer 2) Control 0, 16,396 (0x400C) R7: Record Mixer Right (Mixer 2) Control 1, 16,397 (0x400D) R8: Left Differential Input Volume Control, 16,398 (0x400E) R9: Right Differential Input Volume Control, 16,399 (0x400F) R10: Record Microphone Bias Control, 16,400 (0x4010) R11: ALC Control 0, 16,401 (0x4011) R12: ALC Control 1, 16,402 (0x4012) R13: ALC Control 2, 16,403 (0x4013) R14: ALC Control 3, 16,404 (0x4014) R15: Serial Port Control 0, 16,405 (0x4015) R16: Serial Port Control 1, 16,406 (0x4016) R17: Converter Control 0, 16,407 (0x4017) R18: Converter Control 1, 16,408 (0x4018) R19: ADC Control, 16,409 (0x4019) R20: Left Input Digital Volume, 16,410 (0x401A) R21: Right Input Digital Volume, 16,411 (0x401B) R22: Playback Mixer Left (Mixer 3) Control 0, 16,412 (0x401C) R23: Playback Mixer Left (Mixer 3) Control 1, 16,413 (0x401D) R24: Playback Mixer Right (Mixer 4) Control 0, 16,414 (0x401E) R25: Playback Mixer Right (Mixer 4) Control 1, 16,415 (0x401F) R26: Playback L/R Mixer Left (Mixer 5) Line Output Control, 16,416 (0x4020) R27: Playback L/R Mixer Right (Mixer 6) Line Output Control, 16,417 (0x4021) R28: Playback L/R Mixer Mono Output (Mixer 7) Control, 16,418 (0x4022) R29: Playback Headphone Left Volume Control, 16,419 (0x4023) R30: Playback Headphone Right Volume Control, 16,420 (0x4024) R31: Playback Line Output Left Volume Control, 16,421 (0x4025) R32: Playback Line Output Right Volume Control, 16,422 (0x4026) R33: Playback Mono Output Control, 16,423 (0x4027) R34: Playback Pop/Click Suppression, 16,424 (0x4028) R35: Playback Power Management, 16,425 (0x4029) R36: DAC Control 0, 16,426 (0x402A) R37: DAC Control 1, 16,427 (0x402B) R38: DAC Control 2, 16,428 (0x402C) R39: Serial Port Pad Control, 16,429 (0x402D) R40: Control Port Pad Control 0, 16,431 (0x402F) R41: Control Port Pad Control 1, 16,432 (0x4030) R42: Jack Detect Pin Control, 16,433 (0x4031) R67: Dejitter Control, 16,438 (0x4036) R43 to R47: Cyclic Redundancy Check Registers, 16,576 to 16,580 (0x40C0 to 0x40C4) R48 to R51: GPIO Pin Control, 16,582 to 16,585 (0x40C6 to 0x40C9) R52 to R56: Watchdog Registers, 16,592 to 16,596 (0x40D0 to 0x40D4) R57: DSP Sampling Rate Setting, 16,619 (0x40EB) R58: Serial Input Route Control, 16,626 (0x40F2) R59: Serial Output Route Control, 16,627 (0x40F3) R60: Serial Data/GPIO Pin Configuration, 16,628 (0x40F4) R61: DSP Enable, 16,629 (0x40F5) R62: DSP Run, 16,630 (0x40F6) R63: DSP Slew Modes, 16,631 (0x40F7) R64: Serial Port Sampling Rate, 16,632 (0x40F8) R65: Clock Enable 0, 16,633 (0x40F9) R66: Clock Enable 1, 16,634 (0x40FA) Outline Dimensions Ordering Guide
