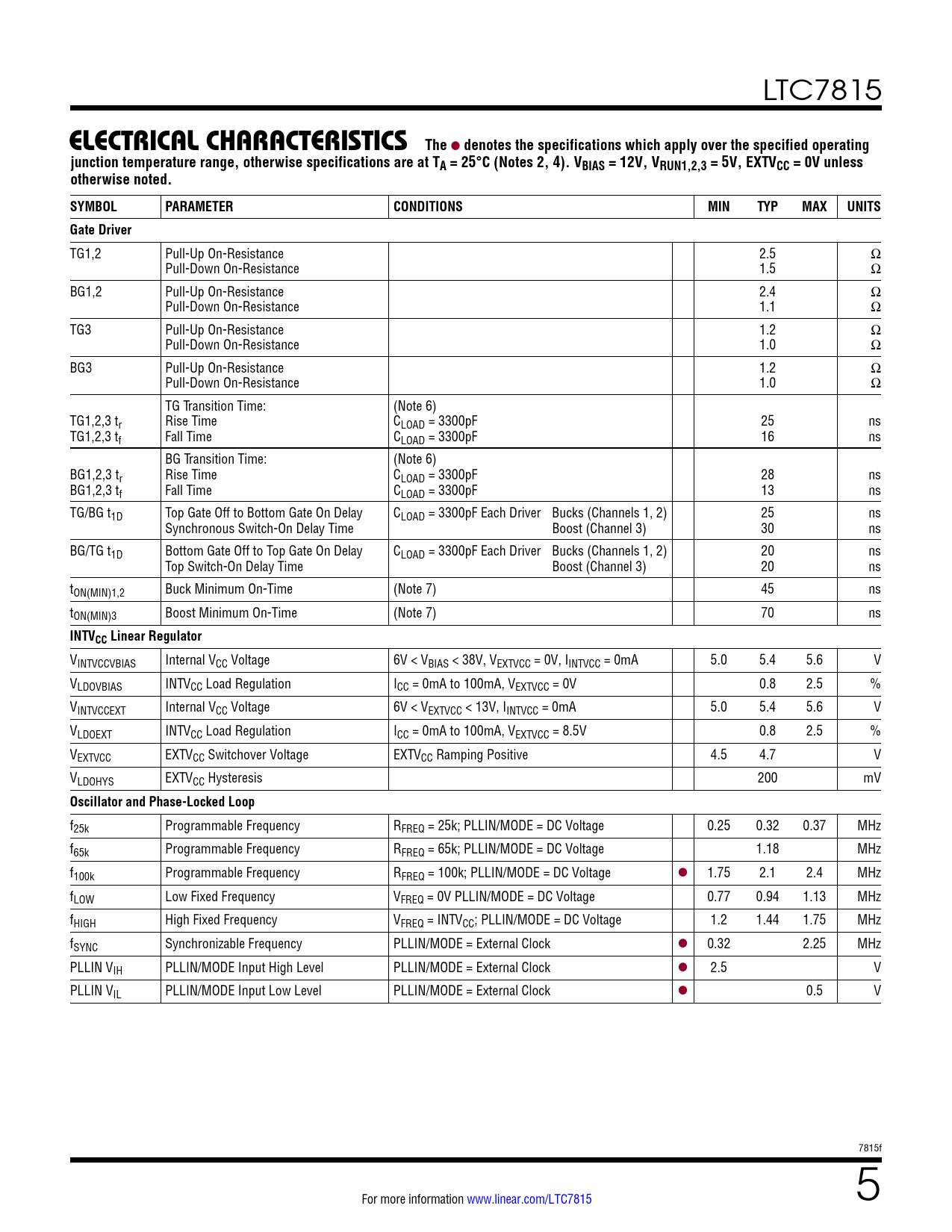

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the specified operating
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC7815
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified operating junction temperature range, otherwise specifications are at TA = 25°C (Notes 2, 4). VBIAS = 12V, VRUN1,2,3 = 5V, EXTVCC = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Gate Driver
TG1,2 Pull-Up On-Resistance 2.5 Ω Pull-Down On-Resistance 1.5 Ω BG1,2 Pull-Up On-Resistance 2.4 Ω Pull-Down On-Resistance 1.1 Ω TG3 Pull-Up On-Resistance 1.2 Ω Pull-Down On-Resistance 1.0 Ω BG3 Pull-Up On-Resistance 1.2 Ω Pull-Down On-Resistance 1.0 Ω TG Transition Time: (Note 6) TG1,2,3 tr Rise Time CLOAD = 3300pF 25 ns TG1,2,3 tf Fall Time CLOAD = 3300pF 16 ns BG Transition Time: (Note 6) BG1,2,3 tr Rise Time CLOAD = 3300pF 28 ns BG1,2,3 tf Fall Time CLOAD = 3300pF 13 ns TG/BG t1D Top Gate Off to Bottom Gate On Delay CLOAD = 3300pF Each Driver Bucks (Channels 1, 2) 25 ns Synchronous Switch-On Delay Time Boost (Channel 3) 30 ns BG/TG t1D Bottom Gate Off to Top Gate On Delay CLOAD = 3300pF Each Driver Bucks (Channels 1, 2) 20 ns Top Switch-On Delay Time Boost (Channel 3) 20 ns tON(MIN)1,2 Buck Minimum On-Time (Note 7) 45 ns tON(MIN)3 Boost Minimum On-Time (Note 7) 70 ns
INTVCC Linear Regulator
VINTVCCVBIAS Internal VCC Voltage 6V < VBIAS < 38V, VEXTVCC = 0V, IINTVCC = 0mA 5.0 5.4 5.6 V VLDOVBIAS INTVCC Load Regulation ICC = 0mA to 100mA, VEXTVCC = 0V 0.8 2.5 % VINTVCCEXT Internal VCC Voltage 6V < VEXTVCC < 13V, IINTVCC = 0mA 5.0 5.4 5.6 V VLDOEXT INTVCC Load Regulation ICC = 0mA to 100mA, VEXTVCC = 8.5V 0.8 2.5 % VEXTVCC EXTVCC Switchover Voltage EXTVCC Ramping Positive 4.5 4.7 V VLDOHYS EXTVCC Hysteresis 200 mV
Oscillator and Phase-Locked Loop
