Datasheet LT1936 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 1.4A, 500kHz Step-Down Switching Regulator |
| Páginas / Página | 20 / 5 — TYPICAL PERFORMANCE CHARACTERISTICS. Minimum Input Voltage. Switch … |
| Formato / tamaño de archivo | PDF / 306 Kb |
| Idioma del documento | Inglés |

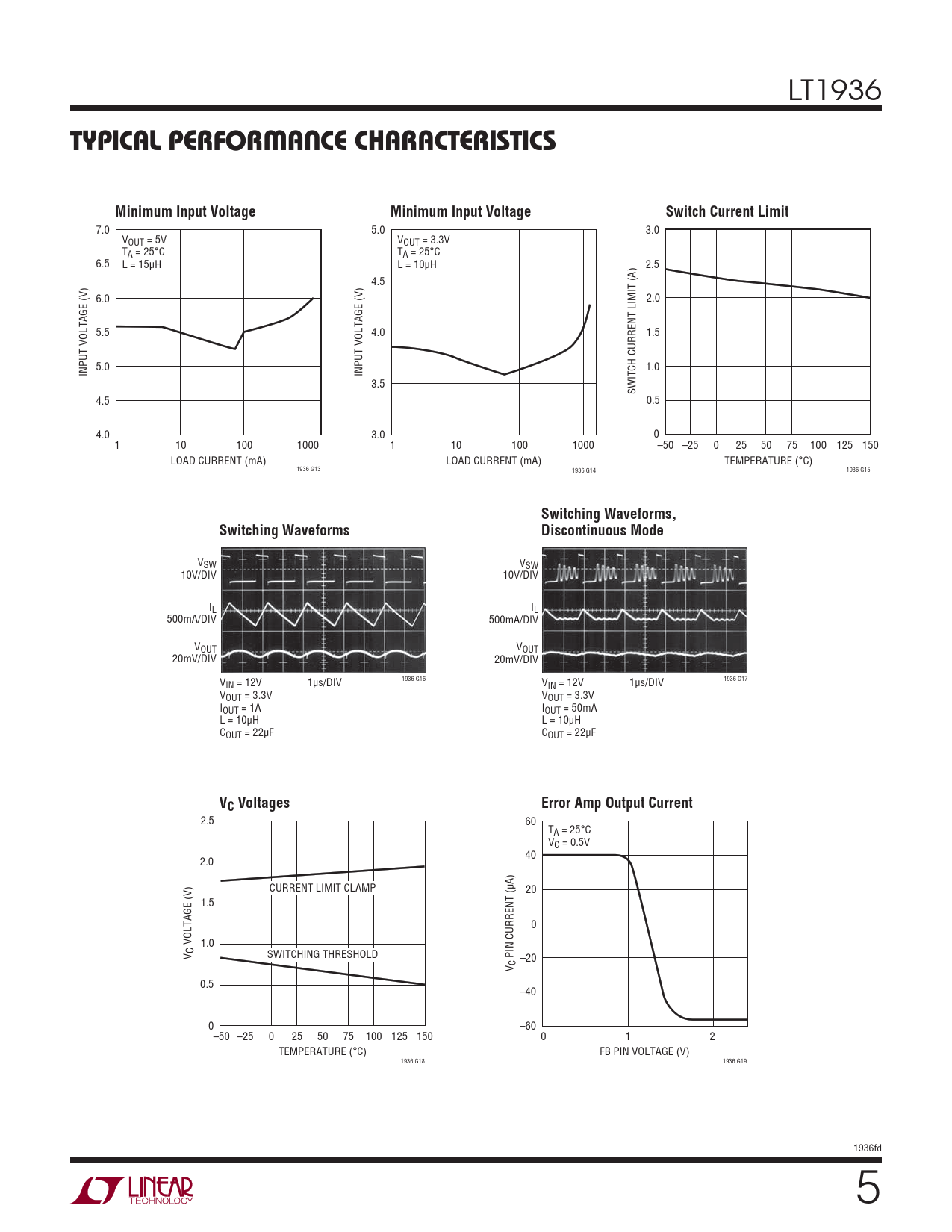

TYPICAL PERFORMANCE CHARACTERISTICS. Minimum Input Voltage. Switch Current Limit. Switching Waveforms,. Switching Waveforms
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT1936
TYPICAL PERFORMANCE CHARACTERISTICS Minimum Input Voltage Minimum Input Voltage Switch Current Limit
7.0 5.0 3.0 VOUT = 5V VOUT = 3.3V TA = 25°C TA = 25°C 6.5 L = 15μH L = 10μH 2.5 4.5 6.0 2.0 5.5 4.0 1.5 5.0 1.0 INPUT VOLTAGE (V) INPUT VOLTAGE (V) 3.5 SWITCH CURRENT LIMIT (A) 4.5 0.5 4.0 3.0 0 1 10 100 1000 1 10 100 1000 –50 –25 0 25 50 75 100 125 150 LOAD CURRENT (mA) LOAD CURRENT (mA) TEMPERATURE (°C) 1936 G13 1936 G14 1936 G15
Switching Waveforms, Switching Waveforms Discontinuous Mode
VSW VSW 10V/DIV 10V/DIV IL IL 500mA/DIV 500mA/DIV VOUT VOUT 20mV/DIV 20mV/DIV V 1μs/DIV 1936 G16 1936 G17 IN = 12V V 1μs/DIV IN = 12V VOUT = 3.3V VOUT = 3.3V IOUT = 1A IOUT = 50mA L = 10μH L = 10μH COUT = 22μF COUT = 22μF
VC Voltages Error Amp Output Current
2.5 60 TA = 25°C VC = 0.5V 40 2.0 CURRENT LIMIT CLAMP 20 1.5 0 VOLTAGE (V) 1.0 CV SWITCHING THRESHOLD PIN CURRENT (μA) C –20 V 0.5 –40 0 –60 –50 –25 0 25 50 75 100 125 150 0 1 2 TEMPERATURE (°C) FB PIN VOLTAGE (V) 1936 G18 1936 G19 1936fd 5
