| Descripción | Dual Synchronous, 1.8V/0.8A and 3.3V/0.8A 2.25MHz Step-Down DC/DC Regulator |
| Páginas / Página | 16 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDERING … |
| Formato / tamaño de archivo | PDF / 269 Kb |
| Idioma del documento | Inglés |

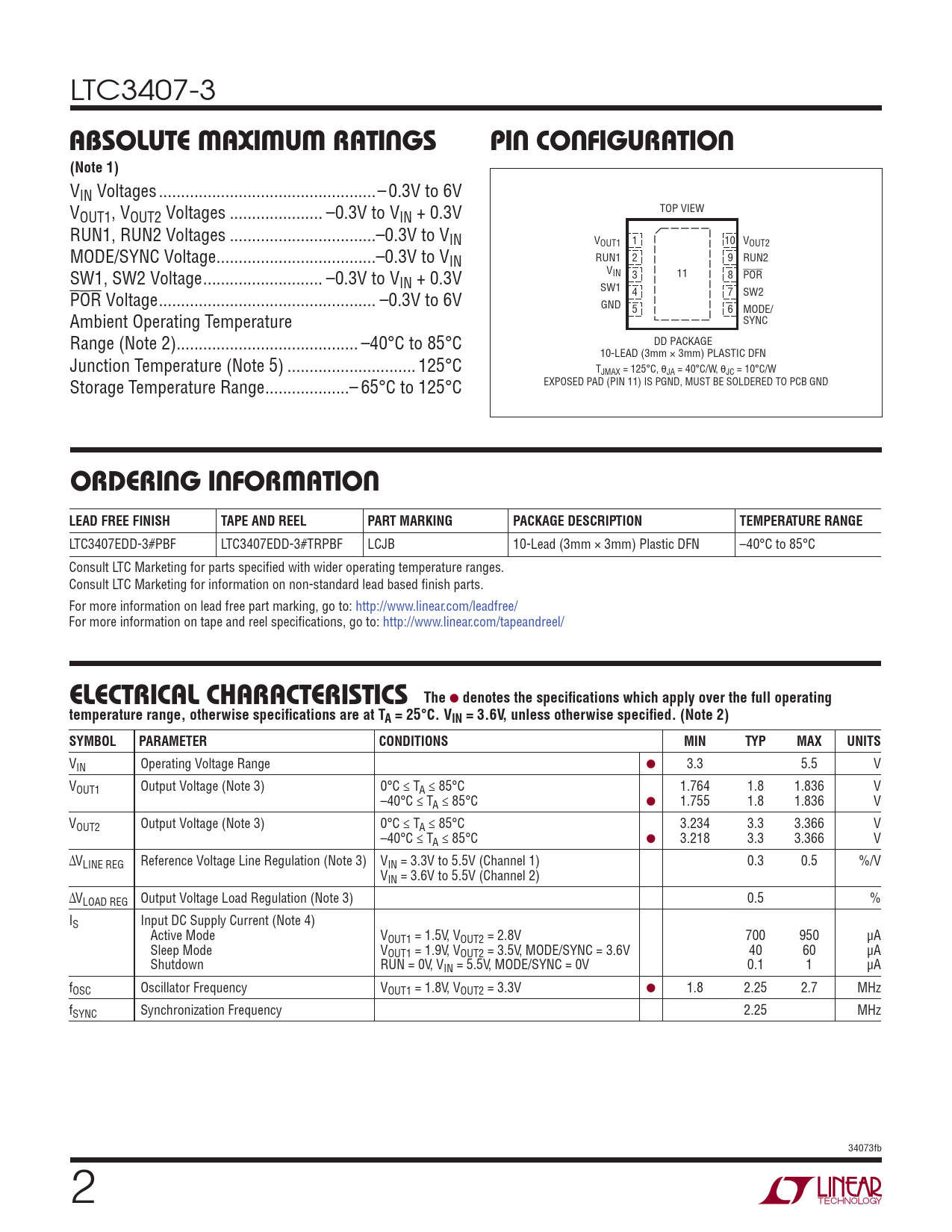

ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDERING INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC3407-3
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
VIN Voltages ...– 0.3V to 6V V TOP VIEW OUT1, VOUT2 Voltages ... –0.3V to VIN + 0.3V RUN1, RUN2 Voltages ...–0.3V to VIN VOUT1 1 10 VOUT2 MODE/SYNC Voltage ..–0.3V to VIN RUN1 2 9 RUN2 SW1, SW2 Voltage ... –0.3V to V VIN 3 11 8 POR IN + 0.3V SW1 POR Voltage ... –0.3V to 6V 4 7 SW2 GND 5 6 MODE/ Ambient Operating Temperature SYNC Range (Note 2) ... –40°C to 85°C DD PACKAGE 10-LEAD (3mm × 3mm) PLASTIC DFN Junction Temperature (Note 5) ... 125°C TJMAX = 125°C, θJA = 40°C/W, θJC = 10°C/W Storage Temperature Range ...– 65°C to 125°C EXPOSED PAD (PIN 11) IS PGND, MUST BE SOLDERED TO PCB GND
ORDERING INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3407EDD-3#PBF LTC3407EDD-3#TRPBF LCJB 10-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VIN = 3.6V, unless otherwise specifi ed. (Note 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN Operating Voltage Range ● 3.3 5.5 V VOUT1 Output Voltage (Note 3) 0°C ≤ TA ≤ 85°C 1.764 1.8 1.836 V –40°C ≤ TA ≤ 85°C ● 1.755 1.8 1.836 V VOUT2 Output Voltage (Note 3) 0°C ≤ TA ≤ 85°C 3.234 3.3 3.366 V –40°C ≤ TA ≤ 85°C ● 3.218 3.3 3.366 V ΔVLINE REG Reference Voltage Line Regulation (Note 3) VIN = 3.3V to 5.5V (Channel 1) 0.3 0.5 %/V VIN = 3.6V to 5.5V (Channel 2) ΔVLOAD REG Output Voltage Load Regulation (Note 3) 0.5 % IS Input DC Supply Current (Note 4) Active Mode VOUT1 = 1.5V, VOUT2 = 2.8V 700 950 μA Sleep Mode VOUT1 = 1.9V, VOUT2 = 3.5V, MODE/SYNC = 3.6V 40 60 μA Shutdown RUN = 0V, VIN = 5.5V, MODE/SYNC = 0V 0.1 1 μA fOSC Oscillator Frequency VOUT1 = 1.8V, VOUT2 = 3.3V ● 1.8 2.25 2.7 MHz fSYNC Synchronization Frequency 2.25 MHz 34073fb 2
