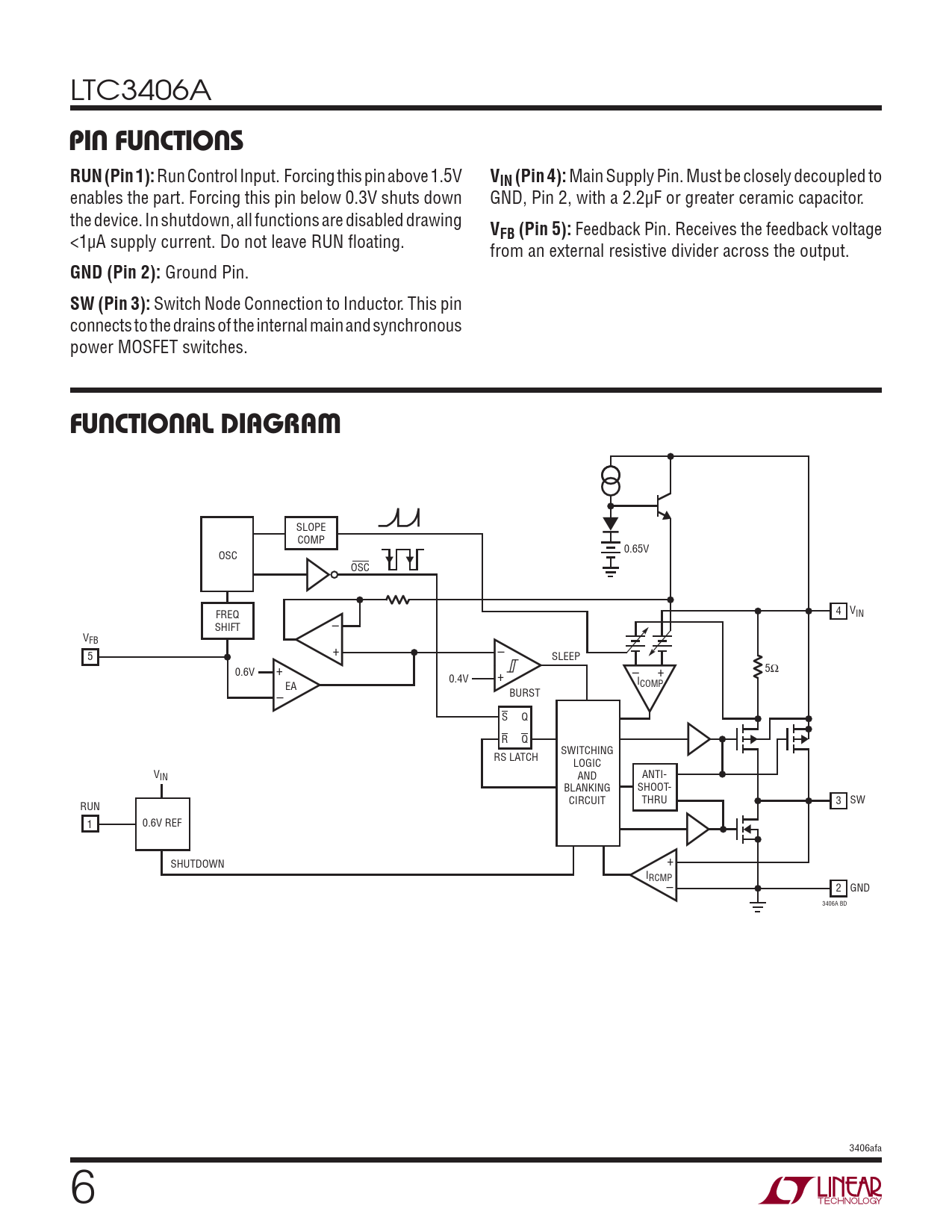

LTC3406A PIN FUNCTIONSRUN (Pin 1): Run Control Input. Forcing this pin above 1.5V VIN (Pin 4): Main Supply Pin. Must be closely decoupled to enables the part. Forcing this pin below 0.3V shuts down GND, Pin 2, with a 2.2μF or greater ceramic capacitor. the device. In shutdown, all functions are disabled drawing V <1μA supply current. Do not leave RUN fl oating. FB (Pin 5): Feedback Pin. Receives the feedback voltage from an external resistive divider across the output. GND (Pin 2): Ground Pin. SW (Pin 3): Switch Node Connection to Inductor. This pin connects to the drains of the internal main and synchronous power MOSFET switches. FUNCTIONAL DIAGRAM SLOPE COMP 0.65V OSC OSC FREQ 4 VIN SHIFT – VFB + – 5 SLEEP + 0.6V 5Ω 0.4V + – + I – EA COMP BURST S Q R Q SWITCHING RS LATCH LOGIC VIN AND ANTI- BLANKING SHOOT- CIRCUIT THRU 3 SW RUN 1 0.6V REF + SHUTDOWN IRCMP– 2 GND 3406A BD 3406afa 6
