Datasheet LT3663 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 1.2A Step-Down Switching Regulator with Output Current Limit |
| Páginas / Página | 16 / 5 — Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. … |
| Formato / tamaño de archivo | PDF / 354 Kb |
| Idioma del documento | Inglés |
Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. Switch Voltage Drop. Boost Diode Vf. BOOST Pin Current
Línea de modelo para esta hoja de datos
- LT3663EDCB#PBF LT3663EDCB#TRMPBF LT3663EDCB#TRPBF LT3663EDCB-3.3#PBF LT3663EDCB-3.3#TRMPBF LT3663EDCB-3.3#TRPBF LT3663EDCB-5#TRMPBF LT3663EDCB-5#TRPBF LT3663EMS8E#PBF LT3663EMS8E#TRPBF LT3663EMS8E-3.3#PBF LT3663EMS8E-3.3#TRPBF LT3663EMS8E-5#PBF LT3663EMS8E-5#TRPBF LT3663HMS8E#PBF LT3663HMS8E#TRPBF LT3663HMS8E-3.3#PBF LT3663HMS8E-3.3#TRPBF LT3663HMS8E-5#PBF LT3663HMS8E-5#TRPBF LT3663IDCB#PBF LT3663IDCB#TRMPBF LT3663IDCB#TRPBF LT3663IDCB-5#TRMPBF LT3663IDCB-5#TRPBF LT3663IMS8E#PBF LT3663IMS8E#TRPBF LT3663IMS8E-3.3#PBF LT3663IMS8E-3.3#TRPBF LT3663IMS8E-5#PBF LT3663IMS8E-5#TRPBF
Versión de texto del documento

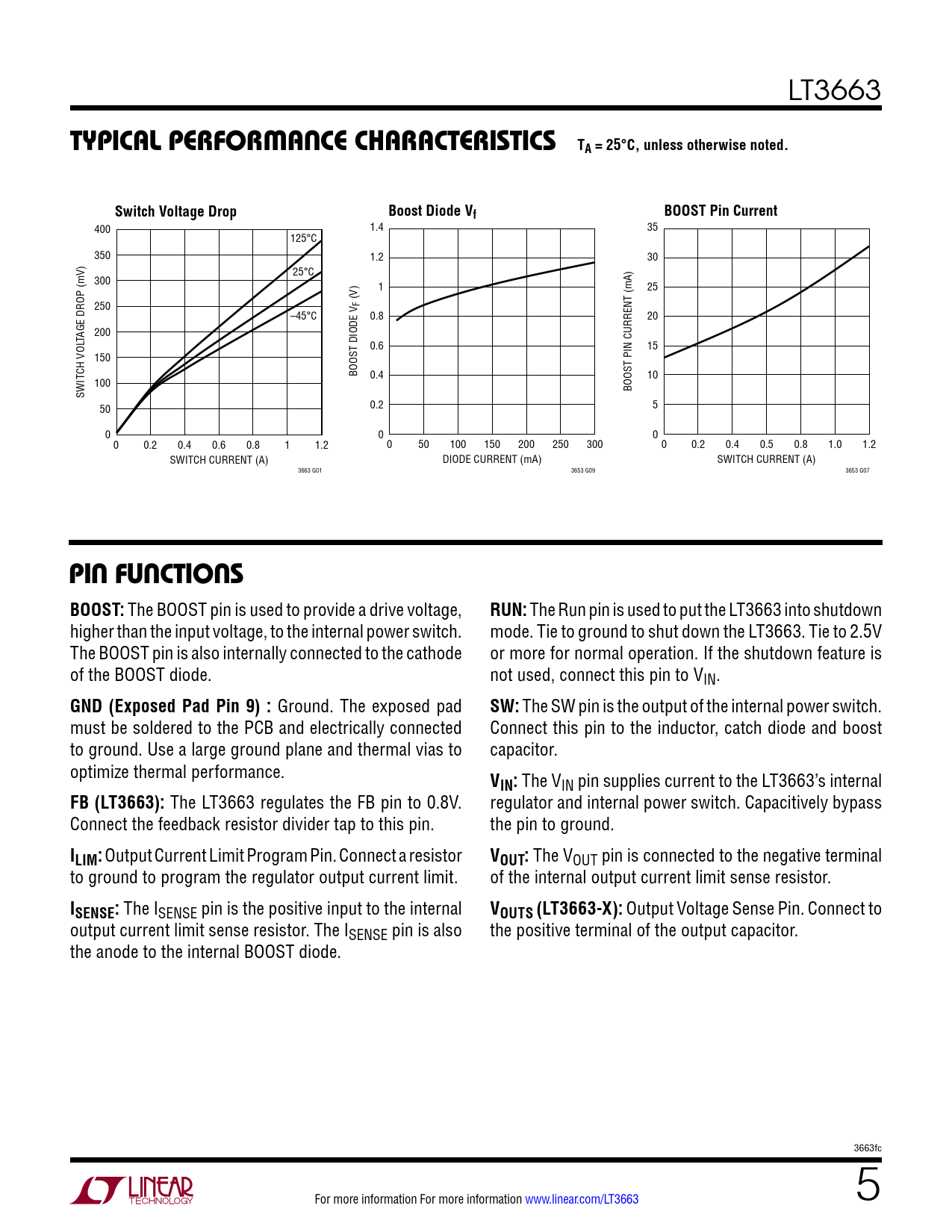

LT3663
Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. Switch Voltage Drop Boost Diode Vf BOOST Pin Current
400 1.4 35 125°C 350 1.2 30 25°C 300 1 25 (V) F 250 –45°C 0.8 20 TAGE DROP (mV) 200 0.6 15 150 BOOST DIODE V 0.4 10 100 BOOST PIN CURRENT (mA) SWITCH VOL 0.2 5 50 0 0 0 0 0.2 0.4 0.6 0.8 1 1.2 0 50 100 150 200 250 300 0 0.2 0.4 0.5 0.8 1.0 1.2 SWITCH CURRENT (A) DIODE CURRENT (mA) SWITCH CURRENT (A) 3663 G01 3653 G09 3653 G07
pin FuncTions BOOST:
The BOOST pin is used to provide a drive voltage,
RUN:
The Run pin is used to put the LT3663 into shutdown higher than the input voltage, to the internal power switch. mode. Tie to ground to shut down the LT3663. Tie to 2.5V The BOOST pin is also internal y connected to the cathode or more for normal operation. If the shutdown feature is of the BOOST diode. not used, connect this pin to VIN.
GND (Exposed Pad Pin 9) :
Ground. The exposed pad
SW:
The SW pin is the output of the internal power switch. must be soldered to the PCB and electrical y connected Connect this pin to the inductor, catch diode and boost to ground. Use a large ground plane and thermal vias to capacitor. optimize thermal performance.
VIN:
The VIN pin supplies current to the LT3663’s internal
FB (LT3663):
The LT3663 regulates the FB pin to 0.8V. regulator and internal power switch. Capacitively bypass Connect the feedback resistor divider tap to this pin. the pin to ground.
ILIM:
Output Current Limit Program Pin. Connect a resistor
VOUT:
The VOUT pin is connected to the negative terminal to ground to program the regulator output current limit. of the internal output current limit sense resistor.
ISENSE:
The ISENSE pin is the positive input to the internal
VOUTS (LT3663-X):
Output Voltage Sense Pin. Connect to output current limit sense resistor. The ISENSE pin is also the positive terminal of the output capacitor. the anode to the internal BOOST diode. 3663fc For more information For more information www.linear.com/LT3663 5 Document Outline Description Typical Application Absolute Maximum Ratings Electrical Characteristics Typical Performance Characteristics Operation Applications Information Package Description
