Datasheet LT3695 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | 1A Fault Tolerant Micropower Step-Down Regulator |
| Páginas / Página | 30 / 1 — FEATURES. DESCRIPTION. Wide Input Range:. Operation from 3.6V to 36V. … |
| Formato / tamaño de archivo | PDF / 508 Kb |
| Idioma del documento | Inglés |
FEATURES. DESCRIPTION. Wide Input Range:. Operation from 3.6V to 36V. Overvoltage Lockout Protects Circuits Through. 60V
Línea de modelo para esta hoja de datos
- LT3695EMSE#PBF LT3695EMSE#TRPBF LT3695EMSE-3.3#PBF LT3695EMSE-3.3#TRPBF LT3695EMSE-5#PBF LT3695EMSE-5#TRPBF LT3695HMSE#PBF LT3695HMSE#TRPBF LT3695HMSE-3.3#PBF LT3695HMSE-3.3#TRPBF LT3695HMSE-5#PBF LT3695HMSE-5#TRPBF LT3695IMSE#PBF LT3695IMSE#TRPBF LT3695IMSE-3.3#PBF LT3695IMSE-3.3#TRPBF LT3695IMSE-5#PBF LT3695IMSE-5#TRPBF
Versión de texto del documento

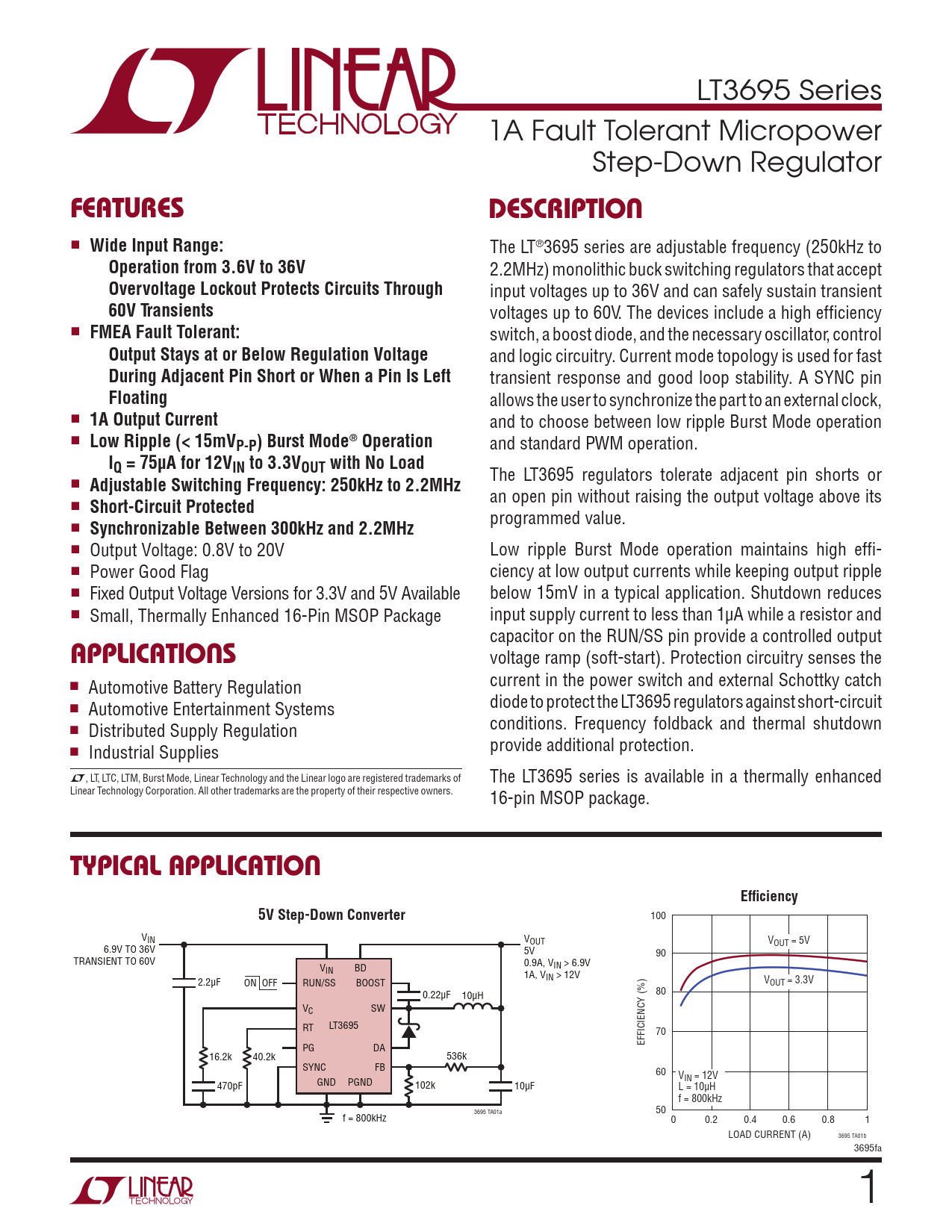

LT3695 Series 1A Fault Tolerant Micropower Step-Down Regulator
FEATURES DESCRIPTION
n
Wide Input Range:
The LT®3695 series are adjustable frequency (250kHz to
Operation from 3.6V to 36V
2.2MHz) monolithic buck switching regulators that accept
Overvoltage Lockout Protects Circuits Through
input voltages up to 36V and can safely sustain transient
60V Transients
voltages up to 60V. The devices include a high effi ciency n
FMEA Fault Tolerant:
switch, a boost diode, and the necessary oscillator, control
Output Stays at or Below Regulation Voltage
and logic circuitry. Current mode topology is used for fast
During Adjacent Pin Short or When a Pin Is Left
transient response and good loop stability. A SYNC pin
Floating
allows the user to synchronize the part to an external clock, n
1A Output Current
and to choose between low ripple Burst Mode operation n
Low Ripple (< 15mVP-P) Burst Mode® Operation
and standard PWM operation.
IQ = 75μA for 12VIN to 3.3VOUT with No Load
The LT3695 regulators tolerate adjacent pin shorts or n
Adjustable Switching Frequency: 250kHz to 2.2MHz
an open pin without raising the output voltage above its n
Short-Circuit Protected
programmed value. n
Synchronizable Between 300kHz and 2.2MHz
n Output Voltage: 0.8V to 20V Low ripple Burst Mode operation maintains high effi - n Power Good Flag ciency at low output currents while keeping output ripple n Fixed Output Voltage Versions for 3.3V and 5V Available below 15mV in a typical application. Shutdown reduces n Small, Thermally Enhanced 16-Pin MSOP Package input supply current to less than 1μA while a resistor and capacitor on the RUN/SS pin provide a controlled output
APPLICATIONS
voltage ramp (soft-start). Protection circuitry senses the current in the power switch and external Schottky catch n Automotive Battery Regulation diode to protect the LT3695 regulators against short-circuit n Automotive Entertainment Systems conditions. Frequency foldback and thermal shutdown n Distributed Supply Regulation provide additional protection. n Industrial Supplies L, LT, LTC, LTM, Burst Mode, Linear Technology and the Linear logo are registered trademarks of The LT3695 series is available in a thermally enhanced Linear Technology Corporation. All other trademarks are the property of their respective owners. 16-pin MSOP package.
TYPICAL APPLICATION Effi ciency 5V Step-Down Converter
100 VIN VOUT VOUT = 5V 6.9V TO 36V 5V 90 TRANSIENT TO 60V 0.9A, V V IN > 6.9V IN BD 1A, VIN > 12V 2.2μF ON OFF RUN/SS BOOST VOUT = 3.3V 0.22μF 10μH 80 VC SW LT3695 RT 70 EFFICIENCY (%) PG DA 16.2k 40.2k 536k SYNC FB 60 VIN = 12V 470pF GND PGND 102k 10μF L = 10μH f = 800kHz 3695 TA01a 50 f = 800kHz 0 0.2 0.4 0.6 0.8 1 LOAD CURRENT (A) 3695 TA01b 3695fa 1
FEATURES DESCRIPTION
n
Wide Input Range:
The LT®3695 series are adjustable frequency (250kHz to
Operation from 3.6V to 36V
2.2MHz) monolithic buck switching regulators that accept
Overvoltage Lockout Protects Circuits Through
input voltages up to 36V and can safely sustain transient
60V Transients
voltages up to 60V. The devices include a high effi ciency n
FMEA Fault Tolerant:
switch, a boost diode, and the necessary oscillator, control
Output Stays at or Below Regulation Voltage
and logic circuitry. Current mode topology is used for fast
During Adjacent Pin Short or When a Pin Is Left
transient response and good loop stability. A SYNC pin
Floating
allows the user to synchronize the part to an external clock, n
1A Output Current
and to choose between low ripple Burst Mode operation n
Low Ripple (< 15mVP-P) Burst Mode® Operation
and standard PWM operation.
IQ = 75μA for 12VIN to 3.3VOUT with No Load
The LT3695 regulators tolerate adjacent pin shorts or n
Adjustable Switching Frequency: 250kHz to 2.2MHz
an open pin without raising the output voltage above its n
Short-Circuit Protected
programmed value. n
Synchronizable Between 300kHz and 2.2MHz
n Output Voltage: 0.8V to 20V Low ripple Burst Mode operation maintains high effi - n Power Good Flag ciency at low output currents while keeping output ripple n Fixed Output Voltage Versions for 3.3V and 5V Available below 15mV in a typical application. Shutdown reduces n Small, Thermally Enhanced 16-Pin MSOP Package input supply current to less than 1μA while a resistor and capacitor on the RUN/SS pin provide a controlled output
APPLICATIONS
voltage ramp (soft-start). Protection circuitry senses the current in the power switch and external Schottky catch n Automotive Battery Regulation diode to protect the LT3695 regulators against short-circuit n Automotive Entertainment Systems conditions. Frequency foldback and thermal shutdown n Distributed Supply Regulation provide additional protection. n Industrial Supplies L, LT, LTC, LTM, Burst Mode, Linear Technology and the Linear logo are registered trademarks of The LT3695 series is available in a thermally enhanced Linear Technology Corporation. All other trademarks are the property of their respective owners. 16-pin MSOP package.
TYPICAL APPLICATION Effi ciency 5V Step-Down Converter
100 VIN VOUT VOUT = 5V 6.9V TO 36V 5V 90 TRANSIENT TO 60V 0.9A, V V IN > 6.9V IN BD 1A, VIN > 12V 2.2μF ON OFF RUN/SS BOOST VOUT = 3.3V 0.22μF 10μH 80 VC SW LT3695 RT 70 EFFICIENCY (%) PG DA 16.2k 40.2k 536k SYNC FB 60 VIN = 12V 470pF GND PGND 102k 10μF L = 10μH f = 800kHz 3695 TA01a 50 f = 800kHz 0 0.2 0.4 0.6 0.8 1 LOAD CURRENT (A) 3695 TA01b 3695fa 1
