Datasheet ADP2443 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | 3 A, 36 V, Synchronous Step-Down DC-to-DC Regulator |
| Páginas / Página | 24 / 6 — ADP2443. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table … |
| Formato / tamaño de archivo | PDF / 689 Kb |
| Idioma del documento | Inglés |

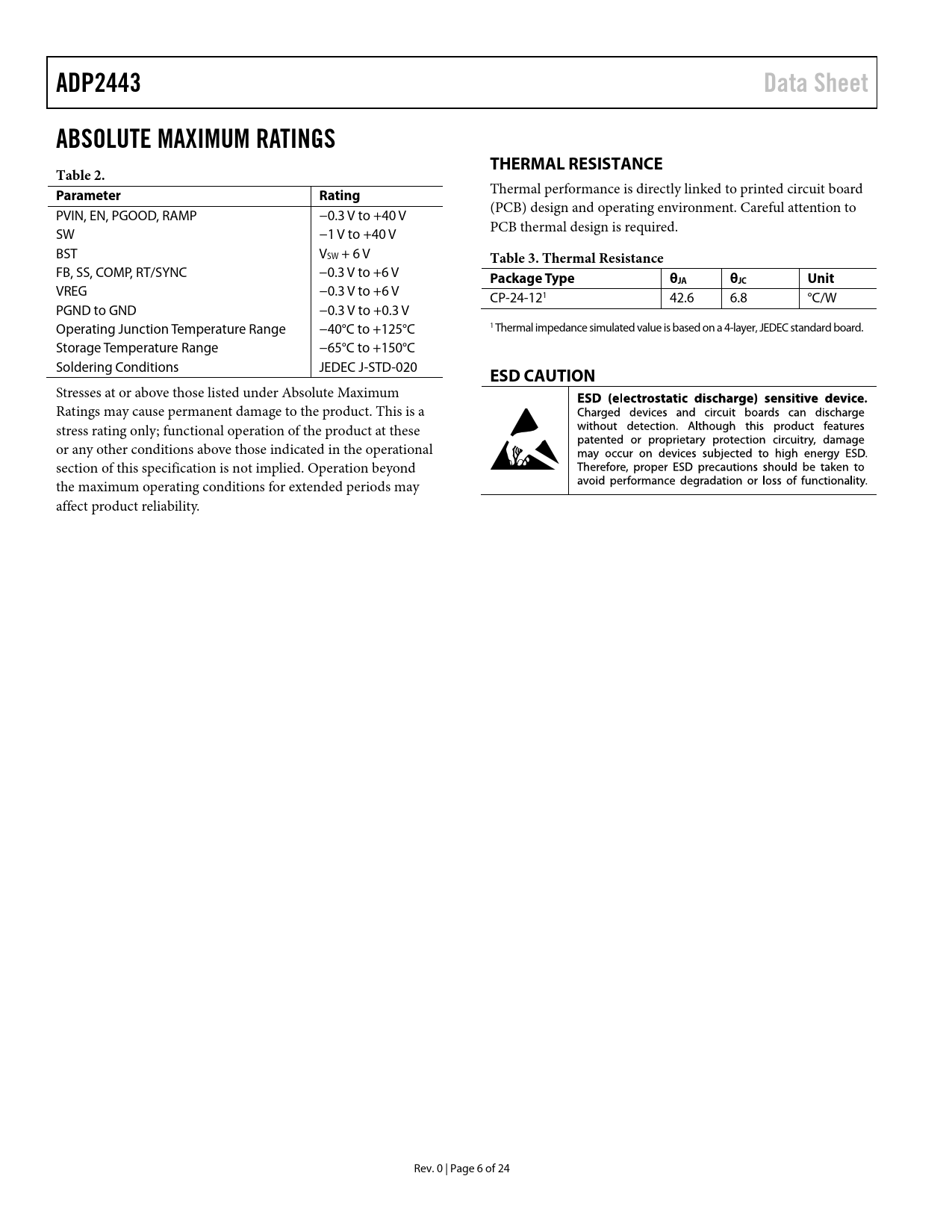

ADP2443. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 2. Parameter. Rating. Table 3. Thermal Resistance
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADP2443 Data Sheet ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 2. Parameter Rating
Thermal performance is directly linked to printed circuit board PVIN, EN, PGOOD, RAMP −0.3 V to +40 V (PCB) design and operating environment. Careful attention to SW −1 V to +40 V PCB thermal design is required. BST VSW + 6 V
Table 3. Thermal Resistance
FB, SS, COMP, RT/SYNC −0.3 V to +6 V
Package Type θJA θJC Unit
VREG −0.3 V to +6 V CP-24-121 42.6 6.8 °C/W PGND to GND −0.3 V to +0.3 V Operating Junction Temperature Range −40°C to +125°C 1 Thermal impedance simulated value is based on a 4-layer, JEDEC standard board. Storage Temperature Range −65°C to +150°C Soldering Conditions JEDEC J-STD-020
ESD CAUTION
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. 0 | Page 6 of 24 Document Outline FEATURES APPLICATIONS TYPICAL APPLICATION CIRCUIT GENERAL DESCRIPTION REVISION HISTORY FUNCTIONAL BLOCK DIAGRAM SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION CONTROL SCHEME PRECISION ENABLE/SHUTDOWN INTERNAL REGULATOR (VREG) BOOTSTRAP CIRCUITRY OSCILLATOR SYNCHRONIZATION SOFT START POWER GOOD PEAK CURRENT-LIMIT AND SHORT-CIRCUIT PROTECTION OVERVOLTAGE PROTECTION (OVP) UNDERVOLTAGE LOCKOUT (UVLO) THERMAL SHUTDOWN APPLICATIONS INFORMATION INPUT CAPACITOR SELECTION OUTPUT VOLTAGE SETTING VOLTAGE CONVERSION LIMITATIONS INDUCTOR SELECTION OUTPUT CAPACITOR SELECTION PROGRAMMING INPUT VOLTAGE UVLO SLOPE COMPENSATION SETTING COMPENSATION DESIGN ADIsimPOWER DESIGN TOOL DESIGN EXAMPLE OUTPUT VOLTAGE SETTING FREQUENCY SETTING INDUCTOR SELECTION OUTPUT CAPACITOR SELECTION SLOPE COMPENSATION SETTING COMPENSATION COMPONENTS SOFT START TIME PROGRAM INPUT CAPACITOR SELECTION RECOMMENDED EXTERNAL COMPONENTS PRINTED CIRCUIT BOARD LAYOUT RECOMMENDATIONS TYPICAL APPLICATIONS CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
