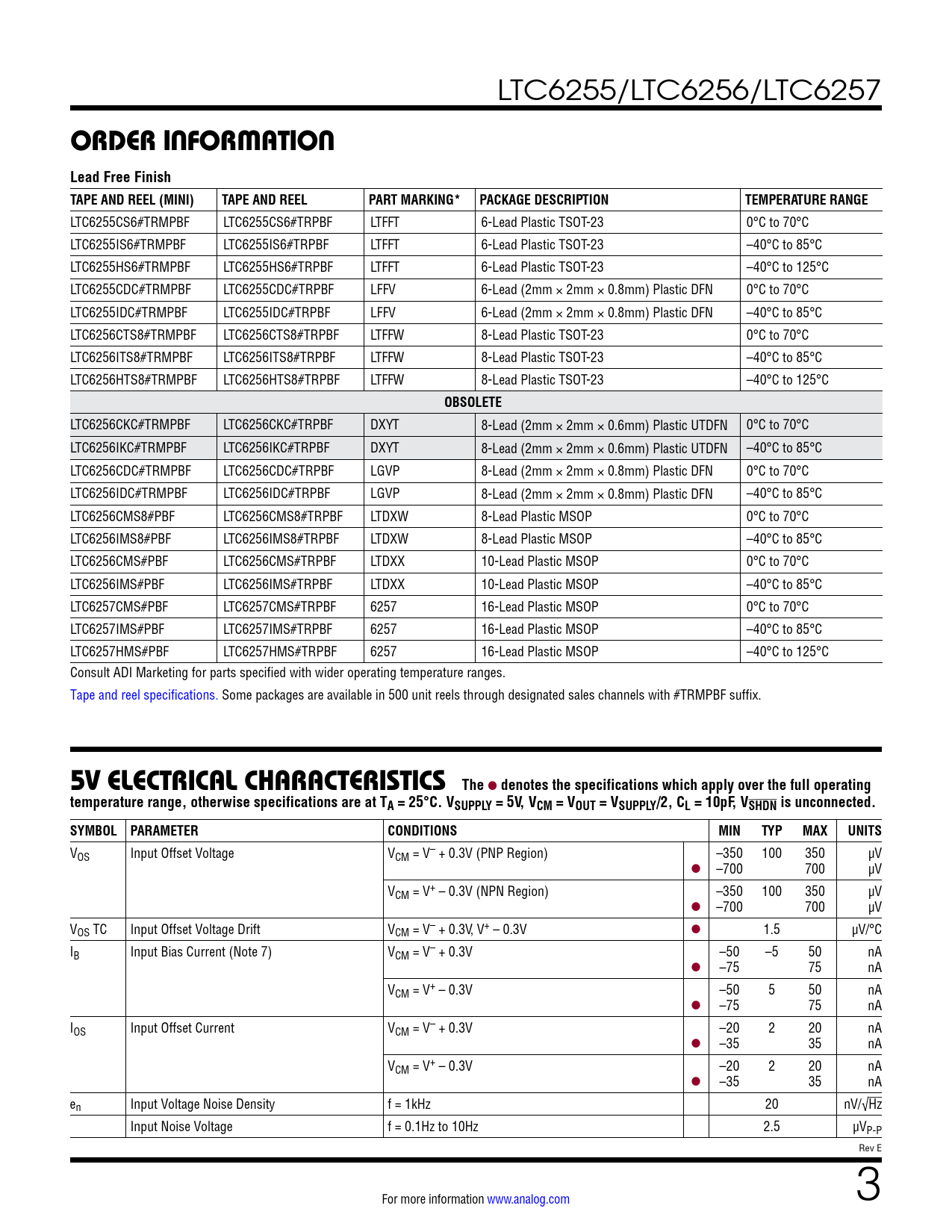

LTC6255/LTC6256/LTC6257
ORDER INFORMATION Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC6255CS6#TRMPBF LTC6255CS6#TRPBF LTFFT 6-Lead Plastic TSOT-23 0°C to 70°C LTC6255IS6#TRMPBF LTC6255IS6#TRPBF LTFFT 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6255HS6#TRMPBF LTC6255HS6#TRPBF LTFFT 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6255CDC#TRMPBF LTC6255CDC#TRPBF LFFV 6-Lead (2mm × 2mm × 0.8mm) Plastic DFN 0°C to 70°C LTC6255IDC#TRMPBF LTC6255IDC#TRPBF LFFV 6-Lead (2mm × 2mm × 0.8mm) Plastic DFN –40°C to 85°C LTC6256CTS8#TRMPBF LTC6256CTS8#TRPBF LTFFW 8-Lead Plastic TSOT-23 0°C to 70°C LTC6256ITS8#TRMPBF LTC6256ITS8#TRPBF LTFFW 8-Lead Plastic TSOT-23 –40°C to 85°C LTC6256HTS8#TRMPBF LTC6256HTS8#TRPBF LTFFW 8-Lead Plastic TSOT-23 –40°C to 125°C
OBSOLETE
LTC6256CKC#TRMPBF LTC6256CKC#TRPBF DXYT 8-Lead (2mm × 2mm × 0.6mm) Plastic UTDFN 0°C to 70°C LTC6256IKC#TRMPBF LTC6256IKC#TRPBF DXYT 8-Lead (2mm × 2mm × 0.6mm) Plastic UTDFN –40°C to 85°C LTC6256CDC#TRMPBF LTC6256CDC#TRPBF LGVP 8-Lead (2mm × 2mm × 0.8mm) Plastic DFN 0°C to 70°C LTC6256IDC#TRMPBF LTC6256IDC#TRPBF LGVP 8-Lead (2mm × 2mm × 0.8mm) Plastic DFN –40°C to 85°C LTC6256CMS8#PBF LTC6256CMS8#TRPBF LTDXW 8-Lead Plastic MSOP 0°C to 70°C LTC6256IMS8#PBF LTC6256IMS8#TRPBF LTDXW 8-Lead Plastic MSOP –40°C to 85°C LTC6256CMS#PBF LTC6256CMS#TRPBF LTDXX 10-Lead Plastic MSOP 0°C to 70°C LTC6256IMS#PBF LTC6256IMS#TRPBF LTDXX 10-Lead Plastic MSOP –40°C to 85°C LTC6257CMS#PBF LTC6257CMS#TRPBF 6257 16-Lead Plastic MSOP 0°C to 70°C LTC6257IMS#PBF LTC6257IMS#TRPBF 6257 16-Lead Plastic MSOP –40°C to 85°C LTC6257HMS#PBF LTC6257HMS#TRPBF 6257 16-Lead Plastic MSOP –40°C to 125°C Consult ADI Marketing for parts specified with wider operating temperature ranges. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
5V ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VSUPPLY = 5V, VCM = VOUT = VSUPPLY/2, CL = 10pF, VSHDN is unconnected. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
