Datasheet LT1007X (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | Low Noise 200°C Op Amp |
| Páginas / Página | 1 / 1 — Features. Pin conFiguration. order inFormation ORDER PART NUMBER. PART … |
| Formato / tamaño de archivo | PDF / 130 Kb |
| Idioma del documento | Inglés |
Features. Pin conFiguration. order inFormation ORDER PART NUMBER. PART MARKING. PACKAGE DESCRIPTION. TEMPERATURE RANGE
Línea de modelo para esta hoja de datos
Versión de texto del documento

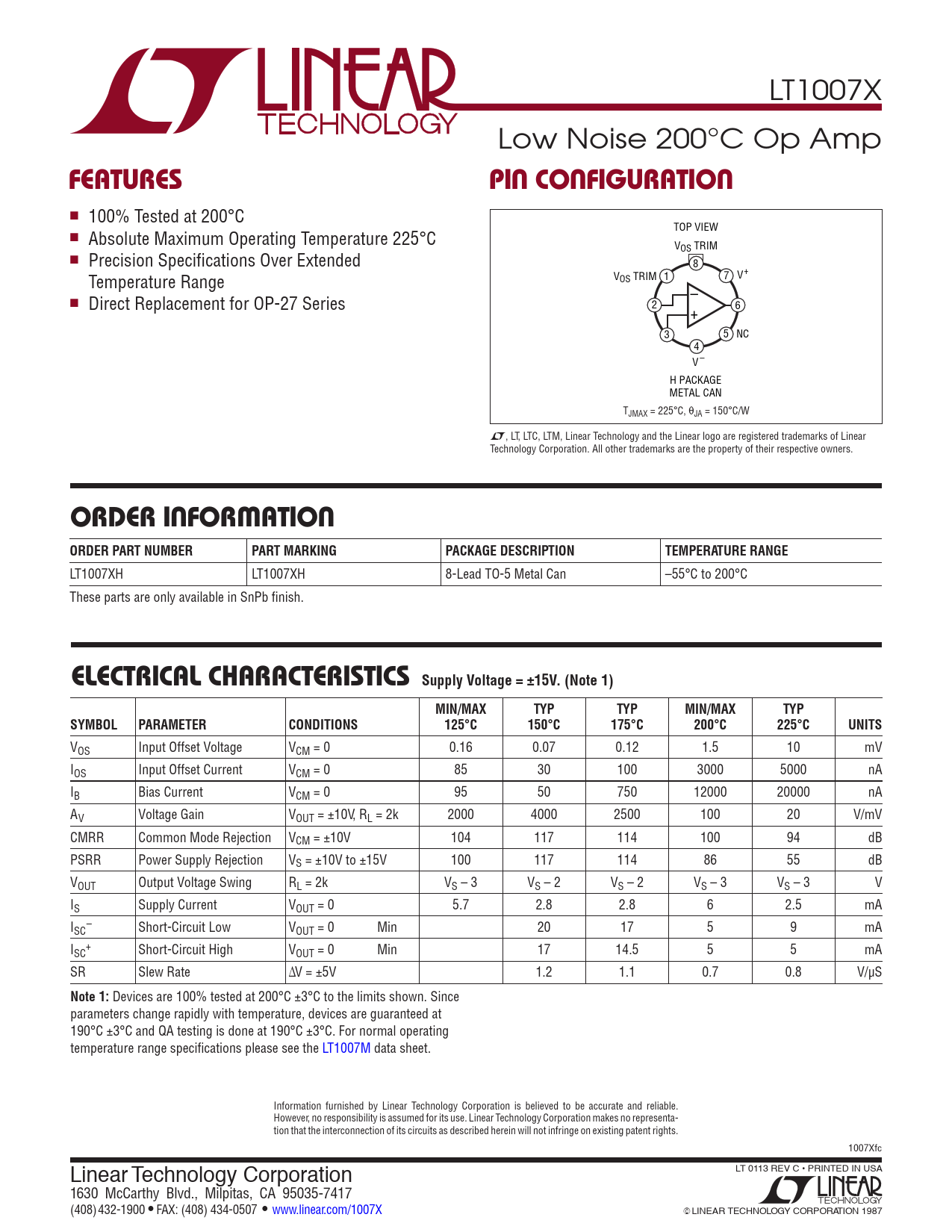

LT1007X Low Noise 200°C Op Amp
Features Pin conFiguration
n 100% Tested at 200°C TOP VIEW n Absolute Maximum Operating Temperature 225°C VOS TRIM n Precision Specifications Over Extended 8 Temperature Range V 1 7 V+ OS TRIM – n Direct Replacement for OP-27 Series 2 + 6 3 5 NC 4 V – H PACKAGE METAL CAN TJMAX = 225°C, θJA = 150°C/W L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
order inFormation ORDER PART NUMBER PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1007XH LT1007XH 8-Lead TO-5 Metal Can –55°C to 200°C These parts are only available in SnPb finish.
electrical characteristics Supply Voltage = ±15V. (Note 1) MIN/MAX TYP TYP MIN/MAX TYP SYMBOL PARAMETER CONDITIONS 125°C 150°C 175°C 200°C 225°C UNITS
VOS Input Offset Voltage VCM = 0 0.16 0.07 0.12 1.5 10 mV IOS Input Offset Current VCM = 0 85 30 100 3000 5000 nA IB Bias Current VCM = 0 95 50 750 12000 20000 nA AV Voltage Gain VOUT = ±10V, RL = 2k 2000 4000 2500 100 20 V/mV CMRR Common Mode Rejection VCM = ±10V 104 117 114 100 94 dB PSRR Power Supply Rejection VS = ±10V to ±15V 100 117 114 86 55 dB VOUT Output Voltage Swing RL = 2k VS – 3 VS – 2 VS – 2 VS – 3 VS – 3 V IS Supply Current VOUT = 0 5.7 2.8 2.8 6 2.5 mA I – SC Short-Circuit Low VOUT = 0 Min 20 17 5 9 mA I + SC Short-Circuit High VOUT = 0 Min 17 14.5 5 5 mA SR Slew Rate ∆V = ±5V 1.2 1.1 0.7 0.8 V/µS
Note 1:
Devices are 100% tested at 200°C ±3°C to the limits shown. Since parameters change rapidly with temperature, devices are guaranteed at 190°C ±3°C and QA testing is done at 190°C ±3°C. For normal operating temperature range specifications please see the LT1007M data sheet. Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa- tion that the interconnection of its circuits as described herein will not infringe on existing patent rights. 1007Xfc Linear Technology Corporation LT 0113 REV C • PRINTED IN USA 1630 McCarthy Blvd., Milpitas, CA 95035-7417 (408) 432-1900 ● FAX: (408) 434-0507 ● www.linear.com/1007X LINEAR TECHNOLOGY CORPORATION 1987 Document Outline Features Pin Configuration Order Information Electrical Characteristics
