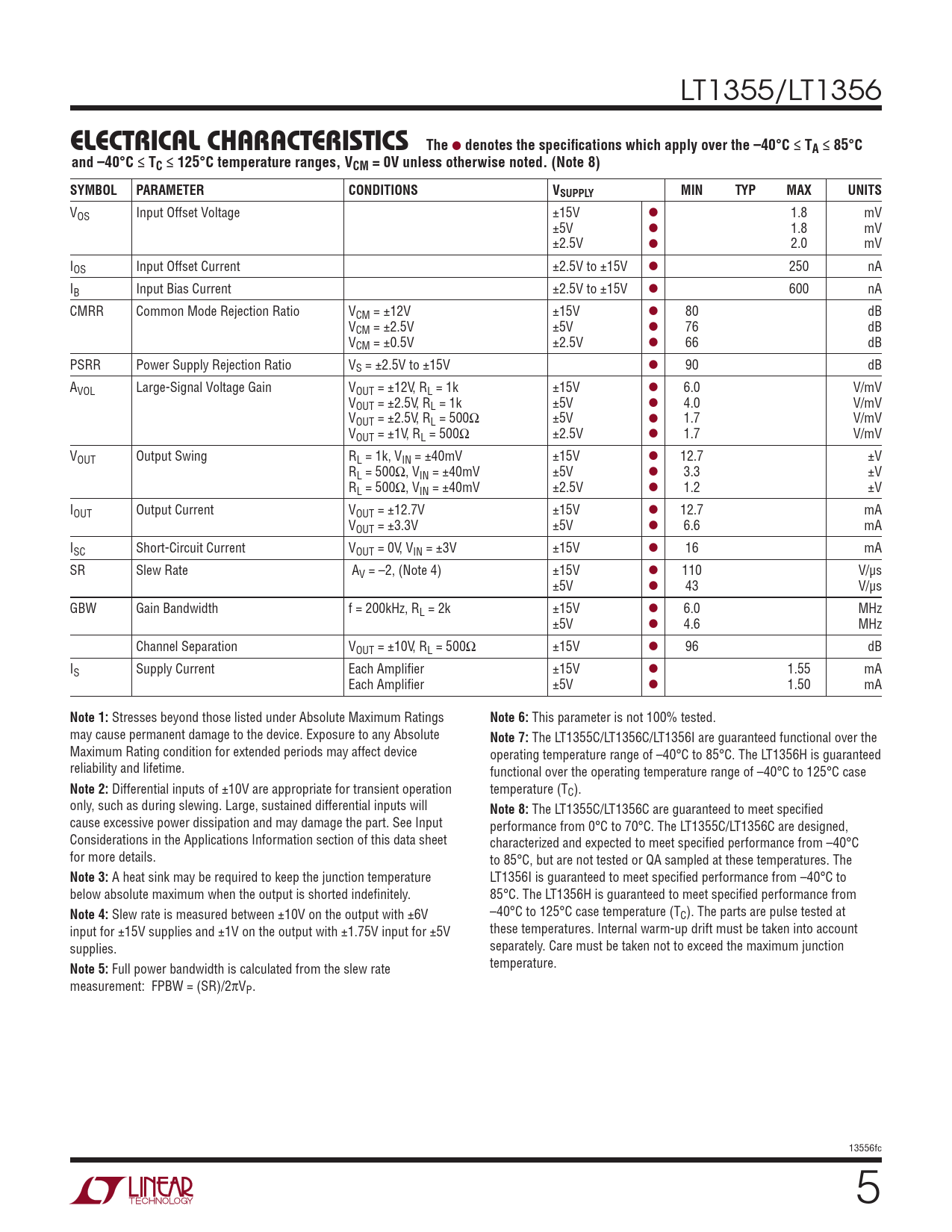

LT1355/LT1356
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the –40°C ≤ TA ≤ 85°C and –40°C ≤ TC ≤ 125°C temperature ranges, VCM = 0V unless otherwise noted. (Note 8) SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage ±15V l 1.8 mV ±5V l 1.8 mV ±2.5V l 2.0 mV IOS Input Offset Current ±2.5V to ±15V l 250 nA IB Input Bias Current ±2.5V to ±15V l 600 nA CMRR Common Mode Rejection Ratio VCM = ±12V ±15V l 80 dB VCM = ±2.5V ±5V l 76 dB VCM = ±0.5V ±2.5V l 66 dB PSRR Power Supply Rejection Ratio VS = ±2.5V to ±15V l 90 dB AVOL Large-Signal Voltage Gain VOUT = ±12V, RL = 1k ±15V l 6.0 V/mV VOUT = ±2.5V, RL = 1k ±5V l 4.0 V/mV VOUT = ±2.5V, RL = 500Ω ±5V l 1.7 V/mV VOUT = ±1V, RL = 500Ω ±2.5V l 1.7 V/mV VOUT Output Swing RL = 1k, VIN = ±40mV ±15V l 12.7 ±V RL = 500Ω, VIN = ±40mV ±5V l 3.3 ±V RL = 500Ω, VIN = ±40mV ±2.5V l 1.2 ±V IOUT Output Current VOUT = ±12.7V ±15V l 12.7 mA VOUT = ±3.3V ±5V l 6.6 mA ISC Short-Circuit Current VOUT = 0V, VIN = ±3V ±15V l 16 mA SR Slew Rate AV = –2, (Note 4) ±15V l 110 V/µs ±5V l 43 V/µs GBW Gain Bandwidth f = 200kHz, RL = 2k ±15V l 6.0 MHz ±5V l 4.6 MHz Channel Separation VOUT = ±10V, RL = 500Ω ±15V l 96 dB IS Supply Current Each Amplifier ±15V l 1.55 mA Each Amplifier ±5V l 1.50 mA
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 6:
This parameter is not 100% tested. may cause permanent damage to the device. Exposure to any Absolute
Note 7:
The LT1355C/LT1356C/LT1356I are guaranteed functional over the Maximum Rating condition for extended periods may affect device operating temperature range of –40°C to 85°C. The LT1356H is guaranteed reliability and lifetime. functional over the operating temperature range of –40°C to 125°C case
Note 2:
Differential inputs of ±10V are appropriate for transient operation temperature (TC). only, such as during slewing. Large, sustained differential inputs will
Note 8:
The LT1355C/LT1356C are guaranteed to meet specified cause excessive power dissipation and may damage the part. See Input performance from 0°C to 70°C. The LT1355C/LT1356C are designed, Considerations in the Applications Information section of this data sheet characterized and expected to meet specified performance from –40°C for more details. to 85°C, but are not tested or QA sampled at these temperatures. The
Note 3:
A heat sink may be required to keep the junction temperature LT1356I is guaranteed to meet specified performance from –40°C to below absolute maximum when the output is shorted indefinitely. 85°C. The LT1356H is guaranteed to meet specified performance from
Note 4:
Slew rate is measured between ±10V on the output with ±6V –40°C to 125°C case temperature (TC). The parts are pulse tested at input for ±15V supplies and ±1V on the output with ±1.75V input for ±5V these temperatures. Internal warm-up drift must be taken into account supplies. separately. Care must be taken not to exceed the maximum junction
Note 5:
Full power bandwidth is calculated from the slew rate temperature. measurement: FPBW = (SR)/2πVP . 13556fc 5 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical Applications Related Parts
