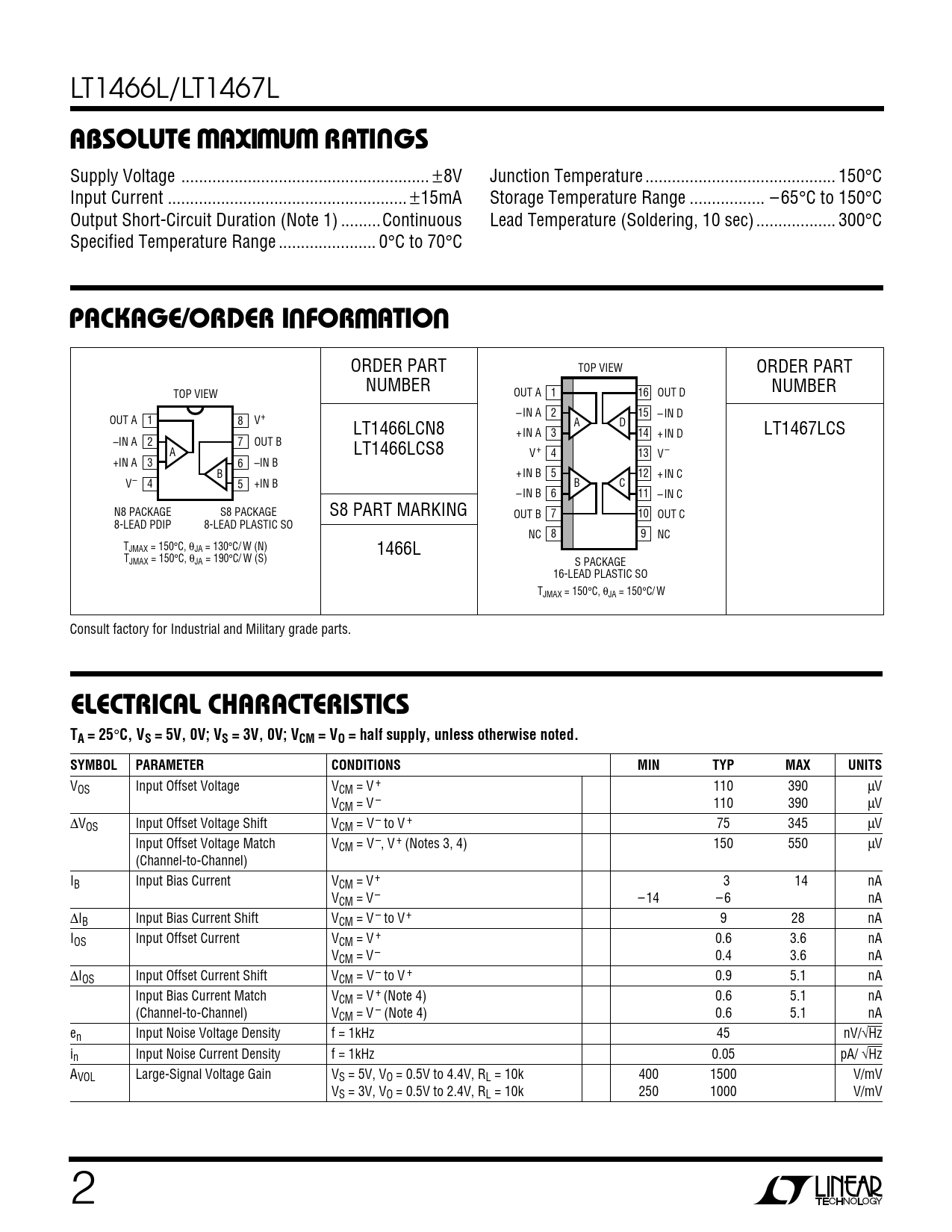

LT1466L/LT1467L
W W W U ABSOLUTE MAXIMUM RATINGS
Supply Voltage .. ±8V Junction Temperature ... 150°C Input Current .. ±15mA Storage Temperature Range ... – 65°C to 150°C Output Short-Circuit Duration (Note 1) ...Continuous Lead Temperature (Soldering, 10 sec) .. 300°C Specified Temperature Range .. 0°C to 70°C
U W U PACKAGE/ORDER INFORMATION
ORDER PART TOP VIEW ORDER PART NUMBER NUMBER TOP VIEW OUT A 1 16 OUT D – IN A 2 15 – IN D OUT A 1 8 V+ LT1466LCN8 A D + IN A 3 14 + IN D LT1467LCS –IN A 2 7 OUT B A LT1466LCS8 V + 4 13 V – +IN A 3 6 –IN B B + IN B 5 12 + IN C V– 4 5 +IN B B C – IN B 6 11 – IN C N8 PACKAGE S8 PACKAGE S8 PART MARKING OUT B 7 10 OUT C 8-LEAD PDIP 8-LEAD PLASTIC SO NC 8 9 NC TJMAX = 150°C, θJA = 130°C/ W (N) 1466L TJMAX = 150°C, θJA = 190°C/ W (S) S PACKAGE 16-LEAD PLASTIC SO TJMAX = 150°C, θJA = 150°C/ W Consult factory for Industrial and Military grade parts.
ELECTRICAL CHARACTERISTICS TA = 25
°
C, VS = 5V, 0V; VS = 3V, 0V; VCM = VO = half supply, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = V + 110 390 µV VCM = V – 110 390 µV ∆VOS Input Offset Voltage Shift VCM = V – to V + 75 345 µV Input Offset Voltage Match VCM = V–, V + (Notes 3, 4) 150 550 µV (Channel-to-Channel) IB Input Bias Current VCM = V+ 3 14 nA VCM = V– – 14 – 6 nA ∆IB Input Bias Current Shift VCM = V – to V+ 9 28 nA IOS Input Offset Current VCM = V + 0.6 3.6 nA VCM = V– 0.4 3.6 nA ∆IOS Input Offset Current Shift VCM = V– to V + 0.9 5.1 nA Input Bias Current Match VCM = V + (Note 4) 0.6 5.1 nA (Channel-to-Channel) VCM = V – (Note 4) 0.6 5.1 nA en Input Noise Voltage Density f = 1kHz 45 nV/√Hz in Input Noise Current Density f = 1kHz 0.05 pA/ √Hz AVOL Large-Signal Voltage Gain VS = 5V, VO = 0.5V to 4.4V, RL = 10k 400 1500 V/mV VS = 3V, VO = 0.5V to 2.4V, RL = 10k 250 1000 V/mV 2
