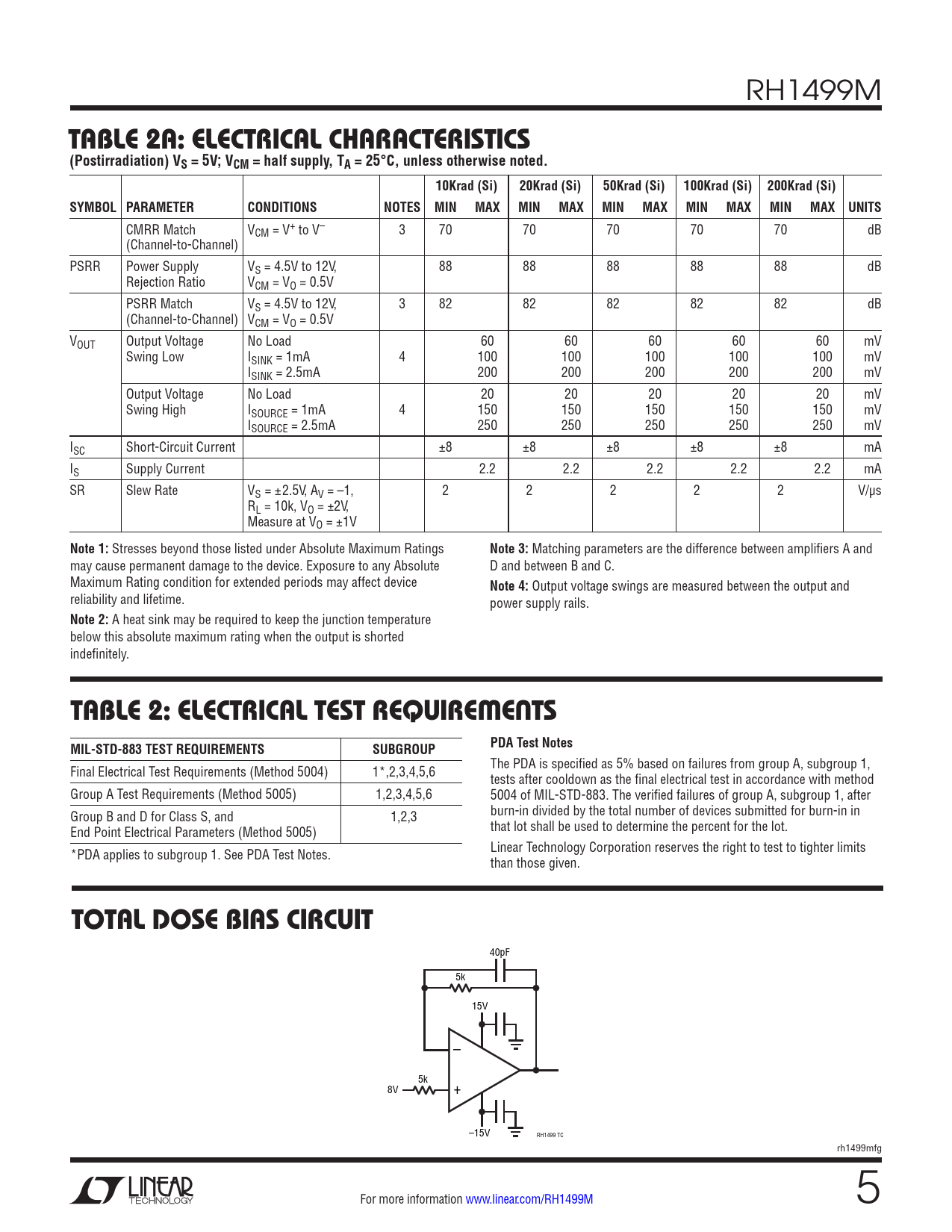

TABLE 2A: ELECTRICAL CHARACTERISTICS. (Postirradiation) VS = 5V; VCM = half supply, TA = 25°C, unless otherwise noted
Línea de modelo para esta hoja de datos
Versión de texto del documento
RH1499M
TABLE 2A: ELECTRICAL CHARACTERISTICS (Postirradiation) VS = 5V; VCM = half supply, TA = 25°C, unless otherwise noted. 10Krad (Si) 20Krad (Si) 50Krad (Si) 100Krad (Si) 200Krad (Si) SYMBOL PARAMETER CONDITIONS NOTES MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX UNITS
CMRR Match VCM = V+ to V– 3 70 70 70 70 70 dB (Channel-to-Channel) PSRR Power Supply VS = 4.5V to 12V, 88 88 88 88 88 dB Rejection Ratio VCM = VO = 0.5V PSRR Match VS = 4.5V to 12V, 3 82 82 82 82 82 dB (Channel-to-Channel) VCM = VO = 0.5V VOUT Output Voltage No Load 60 60 60 60 60 mV Swing Low ISINK = 1mA 4 100 100 100 100 100 mV ISINK = 2.5mA 200 200 200 200 200 mV Output Voltage No Load 20 20 20 20 20 mV Swing High ISOURCE = 1mA 4 150 150 150 150 150 mV ISOURCE = 2.5mA 250 250 250 250 250 mV ISC Short-Circuit Current ±8 ±8 ±8 ±8 ±8 mA IS Supply Current 2.2 2.2 2.2 2.2 2.2 mA SR Slew Rate VS = ±2.5V, AV = –1, 2 2 2 2 2 V/µs RL = 10k, VO = ±2V, Measure at VO = ±1V
