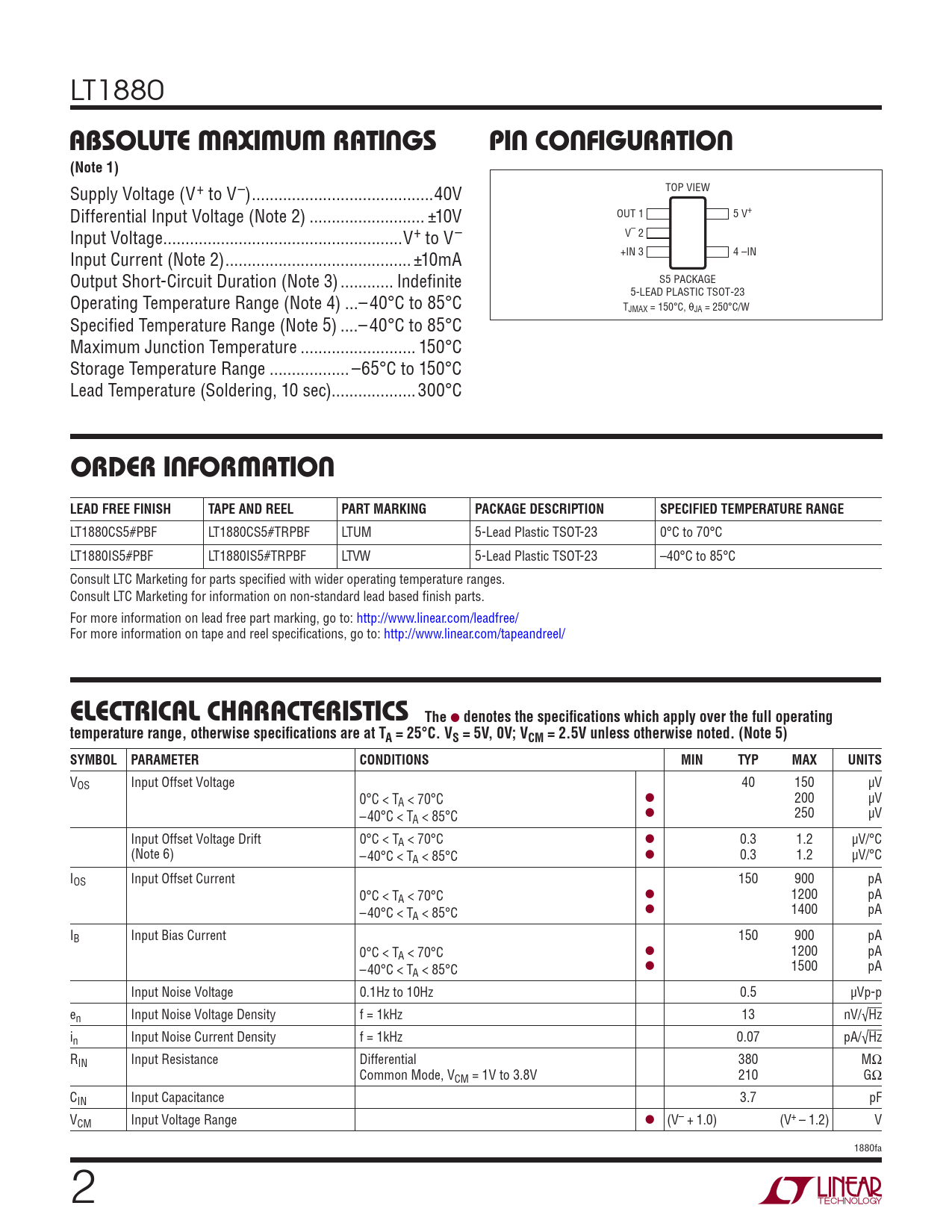

LT1880
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Supply Voltage (V+ to V–) ...40V TOP VIEW Differential Input Voltage (Note 2) .. ±10V OUT 1 5 V+ Input Voltage ..V+ to V– V– 2 Input Current (Note 2) .. ±10mA +IN 3 4 –IN Output Short-Circuit Duration (Note 3) .. Indefi nite S5 PACKAGE 5-LEAD PLASTIC TSOT-23 Operating Temperature Range (Note 4) ...– 40°C to 85°C TJMAX = 150°C, θJA = 250°C/W Specifi ed Temperature Range (Note 5) ..– 40°C to 85°C Maximum Junction Temperature .. 150°C Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec)... 300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1880CS5#PBF LT1880CS5#TRPBF LTUM 5-Lead Plastic TSOT-23 0°C to 70°C LT1880IS5#PBF LT1880IS5#TRPBF LTVW 5-Lead Plastic TSOT-23 –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VS = 5V, 0V; VCM = 2.5V unless otherwise noted. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage 40 150 μV 0°C < T l A < 70°C 200 μV –40°C < T l 250 μV A < 85°C Input Offset Voltage Drift 0°C < TA < 70°C l 0.3 1.2 μV/°C (Note 6) –40°C < T l A < 85°C 0.3 1.2 μV/°C IOS Input Offset Current 150 900 pA 0°C < T l A < 70°C 1200 pA –40°C < T l 1400 pA A < 85°C IB Input Bias Current 150 900 pA 0°C < T l A < 70°C 1200 pA –40°C < T l 1500 pA A < 85°C Input Noise Voltage 0.1Hz to 10Hz 0.5 μVp-p en Input Noise Voltage Density f = 1kHz 13 nV/√Hz in Input Noise Current Density f = 1kHz 0.07 pA/√Hz RIN Input Resistance Differential 380 MΩ Common Mode, VCM = 1V to 3.8V 210 GΩ CIN Input Capacitance 3.7 pF VCM Input Voltage Range l (V– + 1.0) (V+ – 1.2) V 1880fa 2
