Datasheet RH27C (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | Precision Operational Amplifier |
| Páginas / Página | 6 / 4 — TOTAL DOSE BIAS CIRCUIT. TYPICAL PERFORMANCE CHARACTERISTICS. Positive … |
| Formato / tamaño de archivo | PDF / 88 Kb |
| Idioma del documento | Inglés |

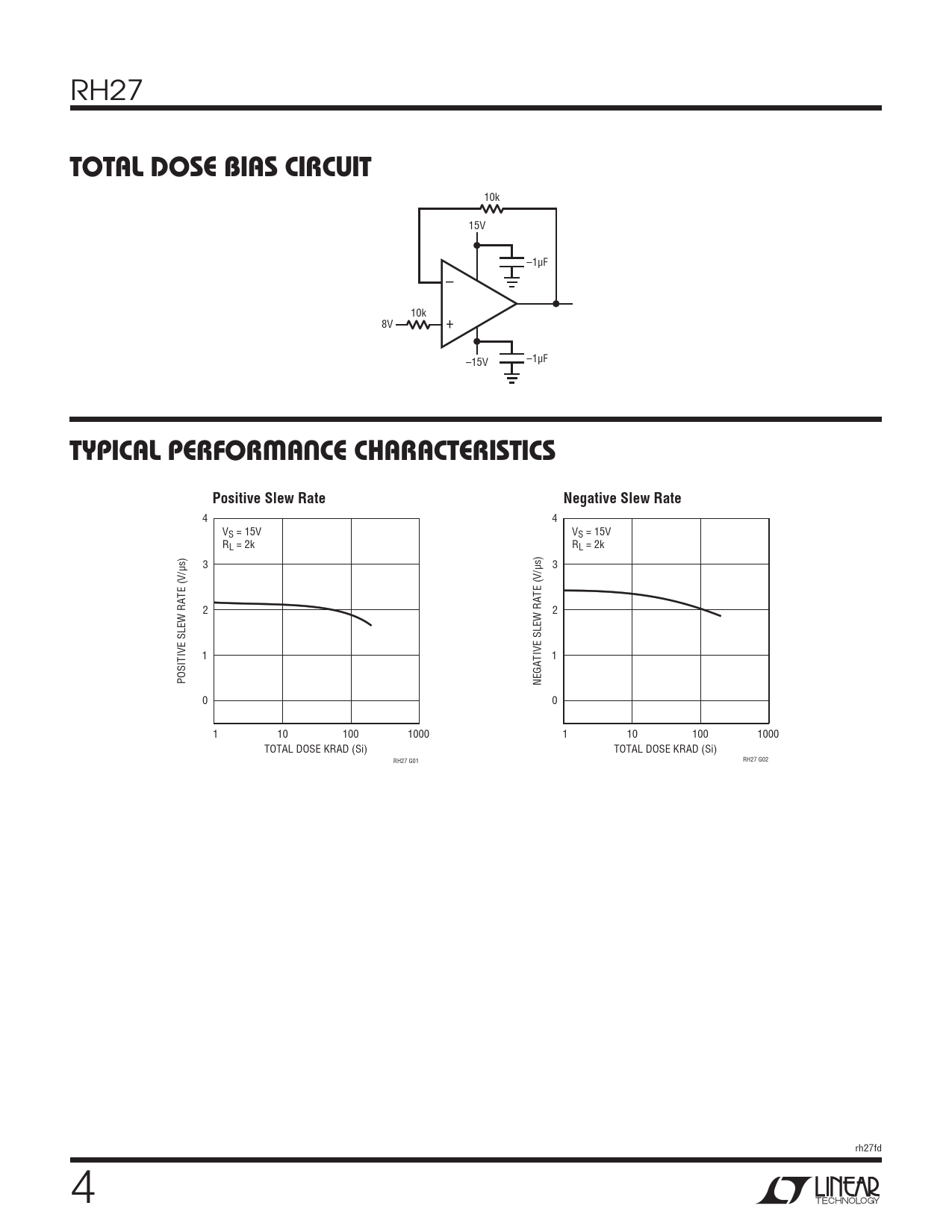

TOTAL DOSE BIAS CIRCUIT. TYPICAL PERFORMANCE CHARACTERISTICS. Positive Slew Rate. Negative Slew Rate
Línea de modelo para esta hoja de datos
Versión de texto del documento
RH27
TOTAL DOSE BIAS CIRCUIT
10k 15V –1μF – 10k + 8V –15V –1μF
TYPICAL PERFORMANCE CHARACTERISTICS Positive Slew Rate Negative Slew Rate
4 4 VS = 15V VS = 15V RL = 2k RL = 2k 3 3 2 2 1 1 POSITIVE SLEW RATE (V/μs) NEGATIVE SLEW RATE (V/μs) 0 0 1 10 100 1000 1 10 100 1000 TOTAL DOSE KRAD (Si) TOTAL DOSE KRAD (Si) RH27 G01 RH27 G02 rh27fd 4
